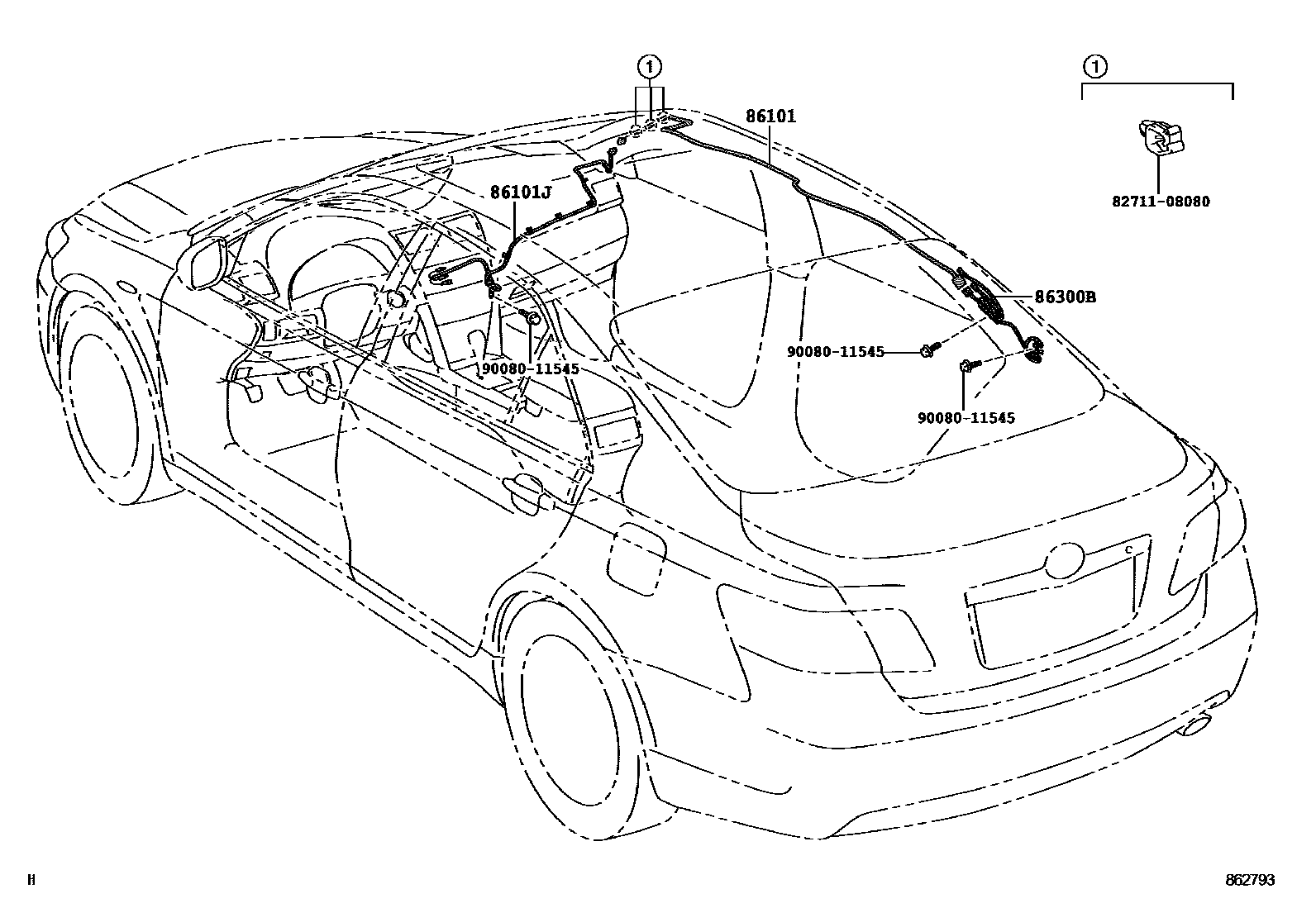

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-06240iAHV40..NAP200610-200903

main86101-06280iAHV40..NAP200903-201001

main86101-06281iAHV40..NAP201002

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-06260iAHV40..NAP200610-200903

main86101-06290iAHV40..NAP200903-201001

main86101-06291iAHV40..NAP201002-201109

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-06070iAHV40..NAP200610-200708

sub86300-06071

main86300-06071iAHV40..NAP200709-200903

8271108080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-08080

9008011545

main90080-11545

5 parts on this diagram · 2 diagrams in section
