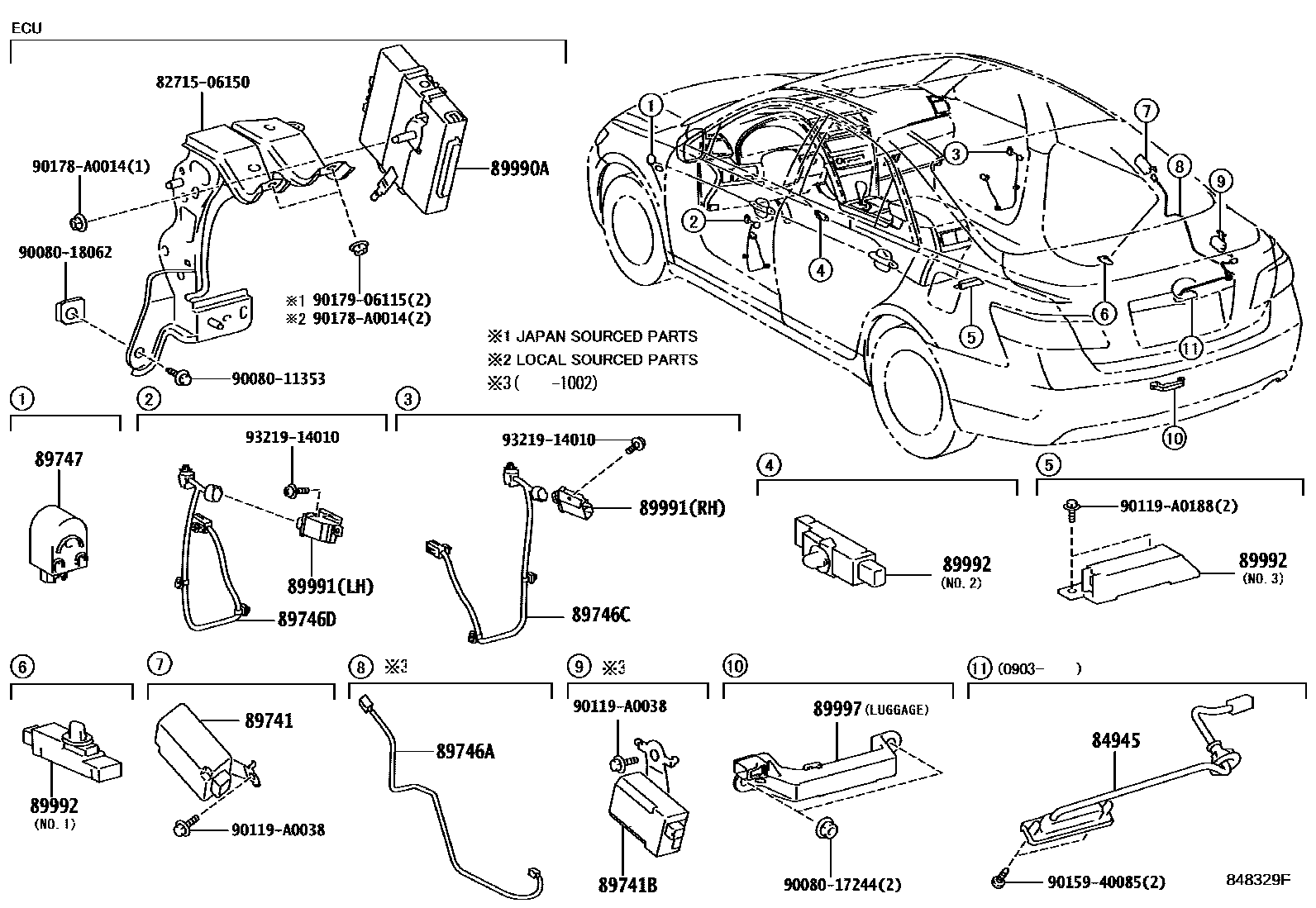

WIRELESS DOOR LOCK

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84905-33010

89741RECEIVER, DOOR CONTROL

main89740-06030iAHV40..NAP200610-200903

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-07020iAHV40..NAP200610-201002

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-06010iAHV40..NAP200610-201002

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-06020iAHV40..NAP200610-201109

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-06030iAHV40..NAP200610-201109

89747BUZZER, WIRELESS DOOR LOCK

main89747-AC010iAHV40..NAP200610-200903

89990ACOMPUTER ASSY, SMART KEY

main89990-06030iAHV40..NAP200610-200707

sub89990-06031

main89990-06031iAHV40..NAP200708-200903

main89990-06050iAHV40..NAP200903

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-06010iAHV40..NAP200610-201109

RH

main89991-06020iAHV40..NAP200610-201109

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-06020iAHV40..NAP200610-200903

NO.1

main89992-06040iAHV40..NAP200610-200903

NO.2

main89992-07020iAHV40..NAP200610-200903

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-30070iAHV40..NAP201009

main89997-41010iAHV40..NAP200610-201008

8271506150BRACKET,WIRING HARNESS CLAMP

main82715-06150

9008011353

main90080-11353

9008017244

main90080-17244

9008018062

main90080-18062

90119A0038

main90119-A0038

90119A0188

main90119-A0188

9015940085

main90159-40085

90178A0014

main90178-A0014

9017906115

main90179-06115

9321914010

main93219-14010

21 parts on this diagram · 1 diagram in section
