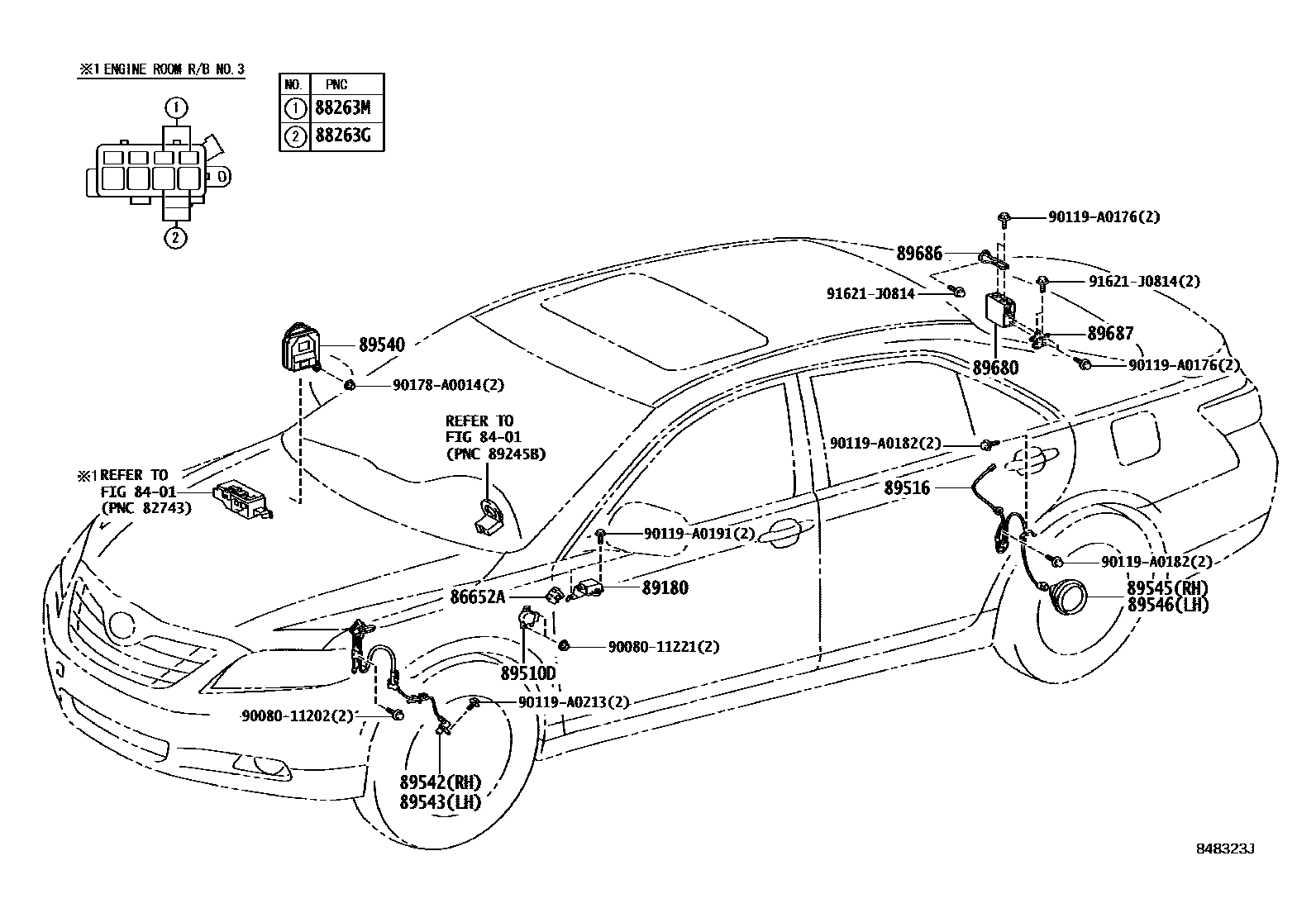

ABS & VSC
8401
86652ABUZZER ASSY, SKID CONTROL
88263GRELAY, SKID CONTROL
88263MRELAY, ABS SOLENOID
89180SENSOR ASSY, YAWRATE
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516WIRE, SKID CONTROL SENSOR
RH
LH
RH
LH
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
sub89544-48010
89546SENSOR, SPEED, REAR LH
sub89544-48010
89680SUPPLY ASSY, BRAKE CONTROL POWER
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2
9008011202
main90080-11202
9008011221
main90080-11221
90119A0176
main90119-A0176
90119A0182
main90119-A0182
90119A0191
main90119-A0191
90119A0213
main90119-A0213
90178A0014
main90178-A0014
91621J0814
main91621-J0814
23 parts on this diagram · 2 diagrams in section
