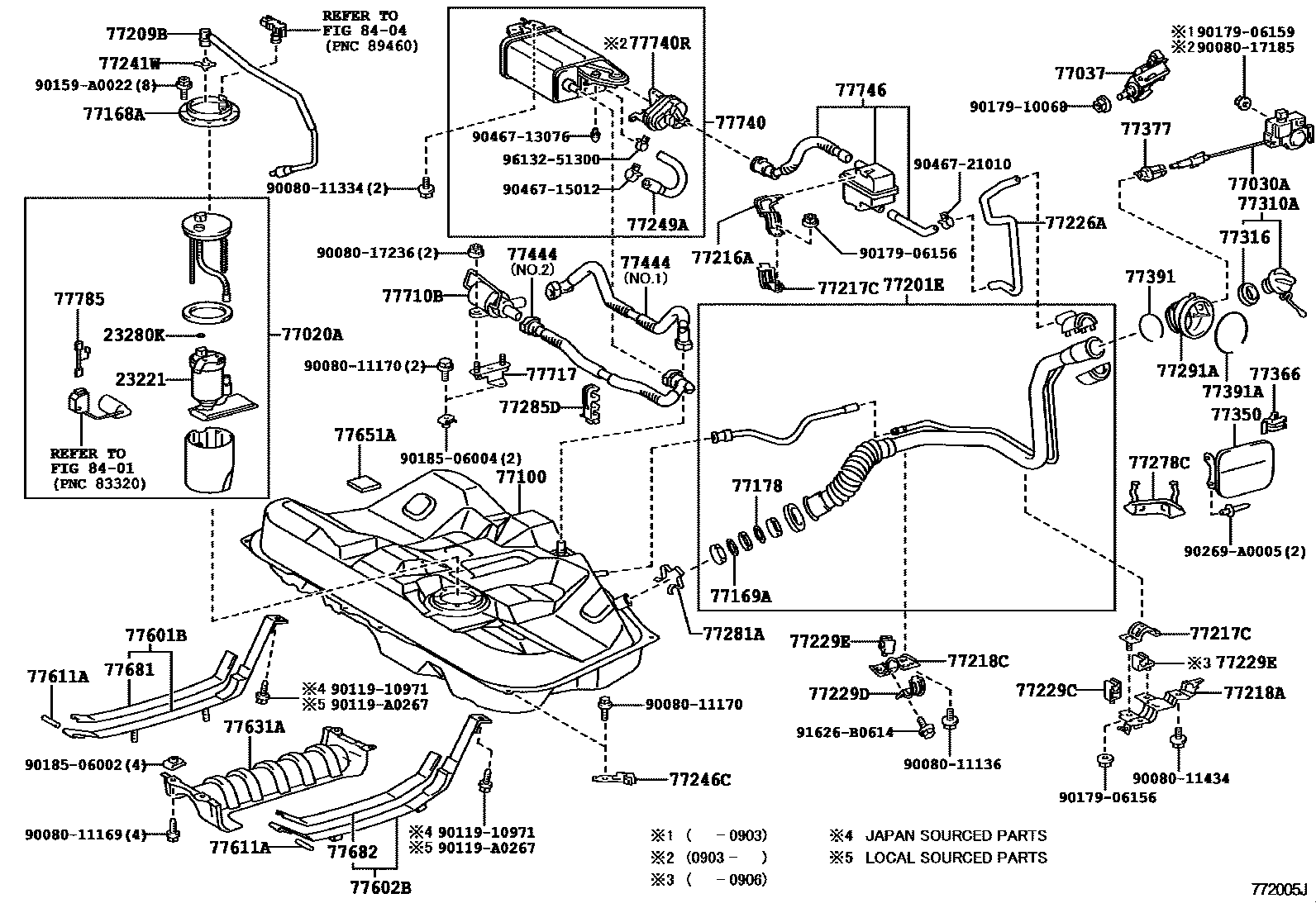

FUEL TANK & TUBE
23221PUMP, FUEL
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77030ALOCK ASSY, FUEL LID W/MOTOR
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201EPIPE SUB-ASSY, FUEL TANK FILLER
sub77201-33311
77209BTUBE SUB-ASSY, FUEL PUMP
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77218CSUPPORT, FUEL TANK FILLER PIPE, NO.5
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77246CSUPPORT, FUEL MAIN TUBE
(L)
(J)
77249AHOSE, FUEL EMISSION
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77310ACAP ASSY, FUEL TANK
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
NO.1
NO.2
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77631APROTECTOR, FUEL TANK, LOWER CENTER
sub77631-33090
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77710BVALVE ASSY, FUEL TANK SOLENOID MAIN
77717BRACKET, FUEL SOLENOID VALVE RETURN
77740CANISTER ASSY, CHARCOAL
77740RPUMP SUB-ASSY, LEAK DETECTION
sub90910-14007
77746FILTER, CHARCOAL CANISTER, NO.2
77785HARNESS, FUEL PUMP
8401
8404
9008011136
main90080-11136
9008011169
main90080-11169
9008011170
main90080-11170
9008011334
main90080-11334
9008011434
main90080-11434
9008017185
main90080-17185
9008017236
main90080-17236
9011910971
main90119-10971
90119A0267
main90119-A0267
90159A0022
main90159-A0022
9017906156
main90179-06156
9017906159
main90179-06159
9017910068
main90179-10068
9018506002
main90185-06002
9018506004
main90185-06004
90269A0005
main90269-A0005
9046713076
main90467-13076
9046715012
main90467-15012
9046721010
main90467-21010
91626B0614
main91626-B0614
9613251300
main96132-51300
71 parts on this diagram · 2 diagrams in section
