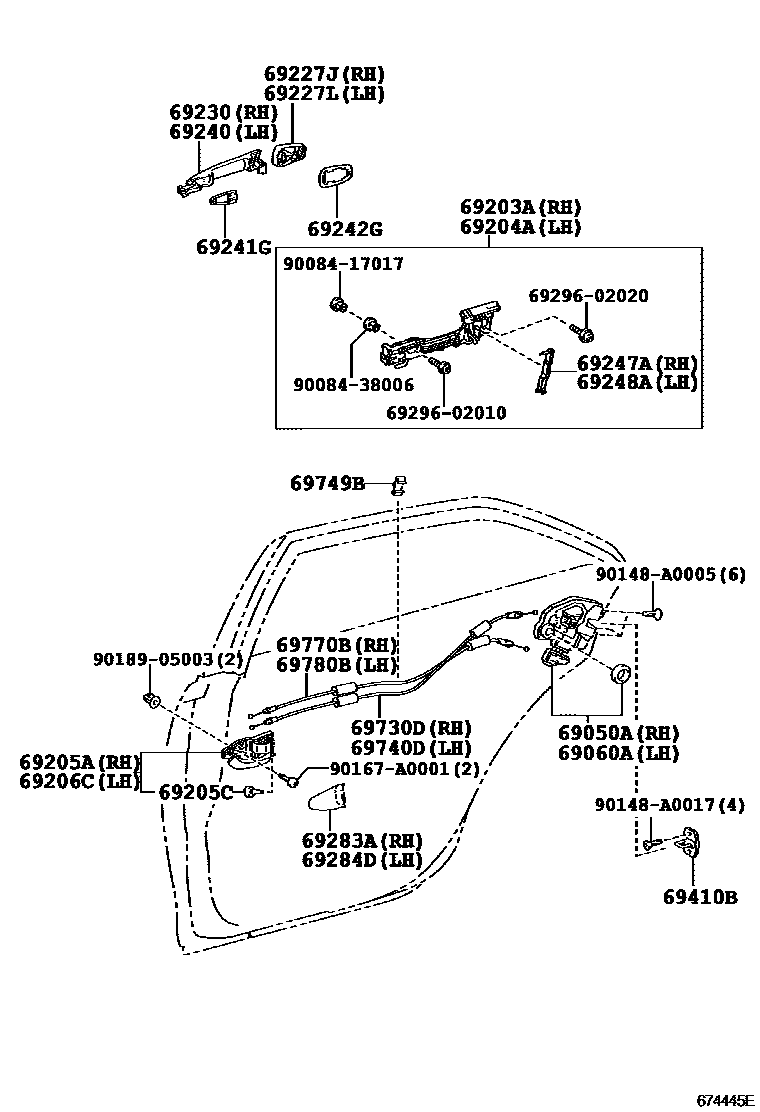

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BEIGE M. M.,4Q2
BEIGE ME.,4T8
LT.GREEN ME.,6U6
DK.GREEN MC.,6V4
TURQUOISE M.M.,776
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
LIGHT BLUE MICA METALLIC,8U8
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BEIGE M. M.,4Q2
BEIGE ME.,4T8
LT.GREEN ME.,6U6
DK.GREEN MC.,6V4
TURQUOISE M.M.,776
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
LIGHT BLUE MICA METALLIC,8U8
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BEIGE M. M.,4Q2
BEIGE ME.,4T8
LT.GREEN ME.,6U6
DK.GREEN MC.,6V4
TURQUOISE M.M.,776
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
LIGHT BLUE MICA METALLIC,8U8
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BEIGE M. M.,4Q2
BEIGE ME.,4T8
LT.GREEN ME.,6U6
DK.GREEN MC.,6V4
TURQUOISE M.M.,776
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
LIGHT BLUE MICA METALLIC,8U8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
sub69242-04010
69247APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, RH
69248APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,4#
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929602010SCREW, DOOR INSIDE HANDLE
main69296-02010
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
9008417017
main90084-17017
9008438006
main90084-38006
90148A0005
main90148-A0005
90148A0017
main90148-A0017
90167A0001
main90167-A0001
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section
