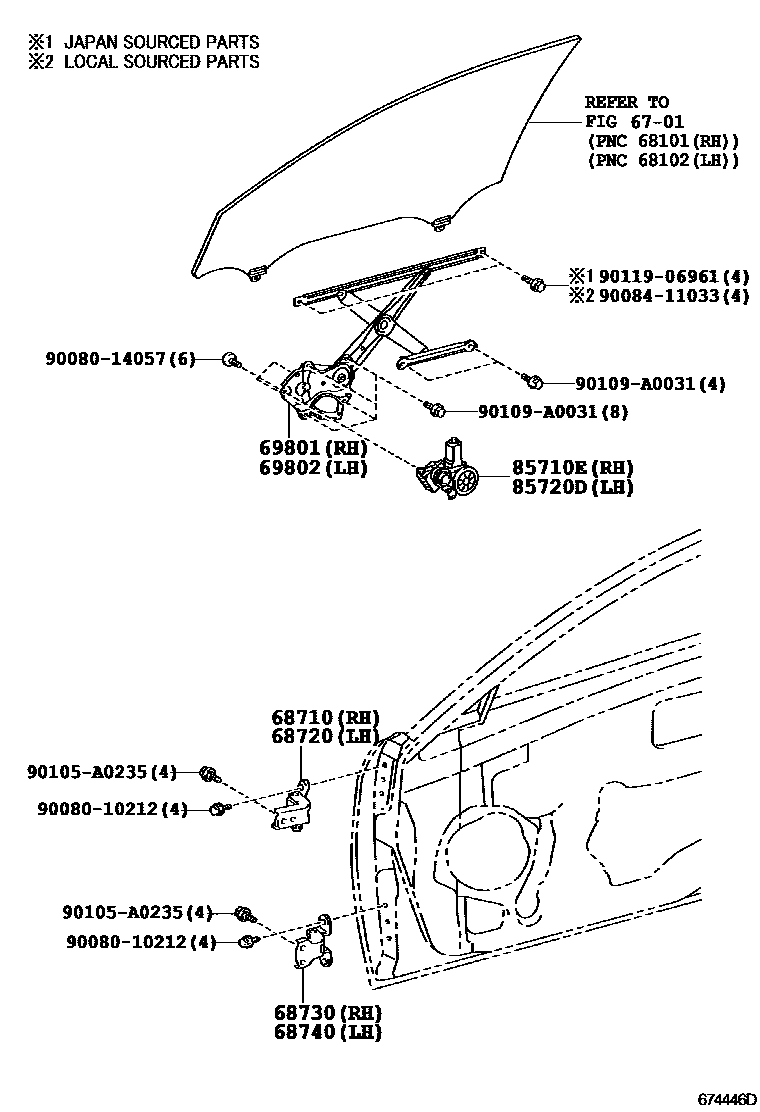

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iAHV40..NAP200610-200903

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iAHV40..NAP200610-200903

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iAHV40..NAP200610-200903

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iAHV40..NAP200610-200903

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06070iAHV40..NAP200610-200903

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06070iAHV40..NAP200610-200903

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0T010iAHV40..NAP200903

sub85710-0T011

main85710-AE010iAHV40..NAP200610-200903

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0T010iAHV40..NAP200903

sub85720-02450

main85720-AE010iAHV40..NAP200610-200903

9008010212

main90080-10212

9008014057

main90080-14057

9008411033

main90084-11033

90105A0235

main90105-A0235

90109A0031

main90109-A0031

9011906961

main90119-06961

15 parts on this diagram · 1 diagram in section
