SIDE MEMBER
5202
5701
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
CANADA SPEC
61132PILLAR, FRONT BODY, UPPER OUTER LH
CANADA SPEC
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61167EBRACKET, NO.6 PILLAR OUTER
61168CBRACKET, NO.6 PILLAR OUTER
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
CANADA SPEC
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
CANADA SPEC
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61216ARAIL, ROOF SIDE, OUTER REAR LH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
CANADA SPEC
61312BPILLAR, CENTER BODY, OUTER LH
CANADA SPEC
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
CANADA SPEC
61612PANEL, QUARTER, LH
CANADA SPEC
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61701CPANEL SUB-ASSY, ROOF SIDE, OUTER RH
61702CPANEL SUB-ASSY, ROOF SIDE, OUTER LH
61711PANEL, ROOF SIDE, OUTER RH
sub61711-33070
61712PANEL, ROOF SIDE, OUTER LH
sub61712-33070
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61815CCOVER, ROOF SIDE, INNER UPPER
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61848ARETAINER, QUARTER PANEL, LH
62939ASILENCER, QUARTER VENT
64116BREINFORCEMENT, UPPER BACK, RH
sub64201-33050
64117BREINFORCEMENT, UPPER BACK, LH
sub64202-33050
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
6182412060PLATE, NOISE CONTROL, NO.1
main61824-12060
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
9008011175
main90080-11175
9008454015
main90084-54015
9018906047
main90189-06047

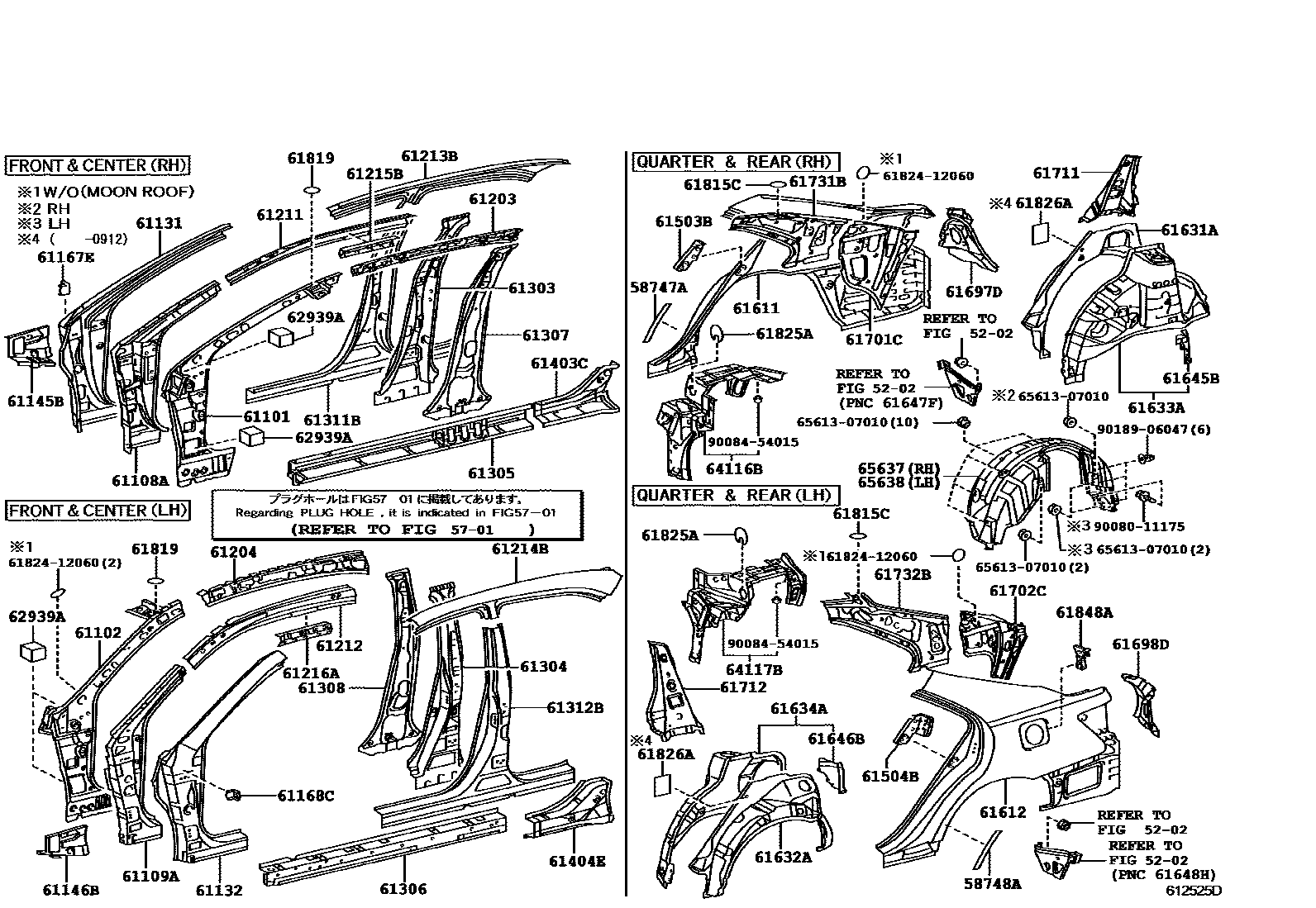

65 parts on this diagram · 1 diagram in section
