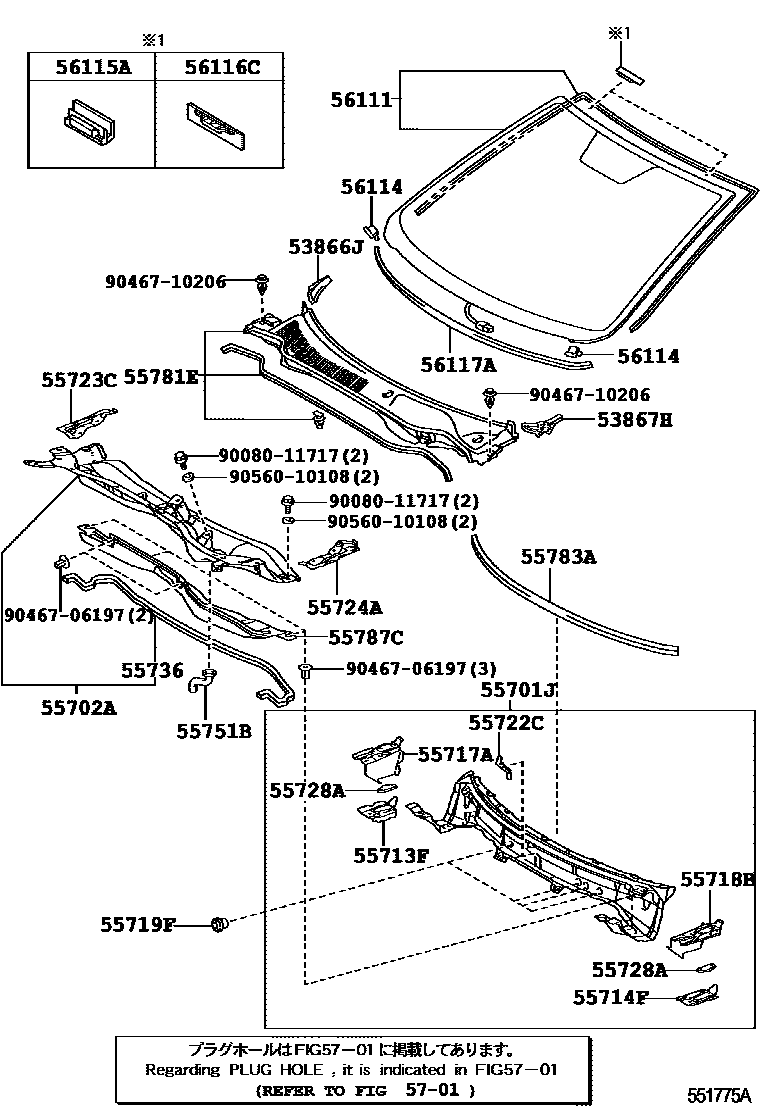

COWL PANEL & WINDSHIELD GLASS
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55713FREINFORCEMENT, COWL TOP SIDE, RH
55714FREINFORCEMENT, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55722CBRACE, COWL TOP TO COWL, INNER
55723CREINFORCEMENT, COWL TOP SIDE, RH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55728AREINFORCEMENT, HOOD STOPPER
55736SEAL, WATER GUARD PLATE
55751BHOSE, COWL WATER EXTRACT, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
56111GLASS, WINDSHIELD
*HSEAL,T=4.76,GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1480
L=1480,DECONTENT PACKAGE
5701
9008011717
main90080-11717
9046706197
main90467-06197
9046710206
main90467-10206
9056010108
main90560-10108
28 parts on this diagram · 1 diagram in section
