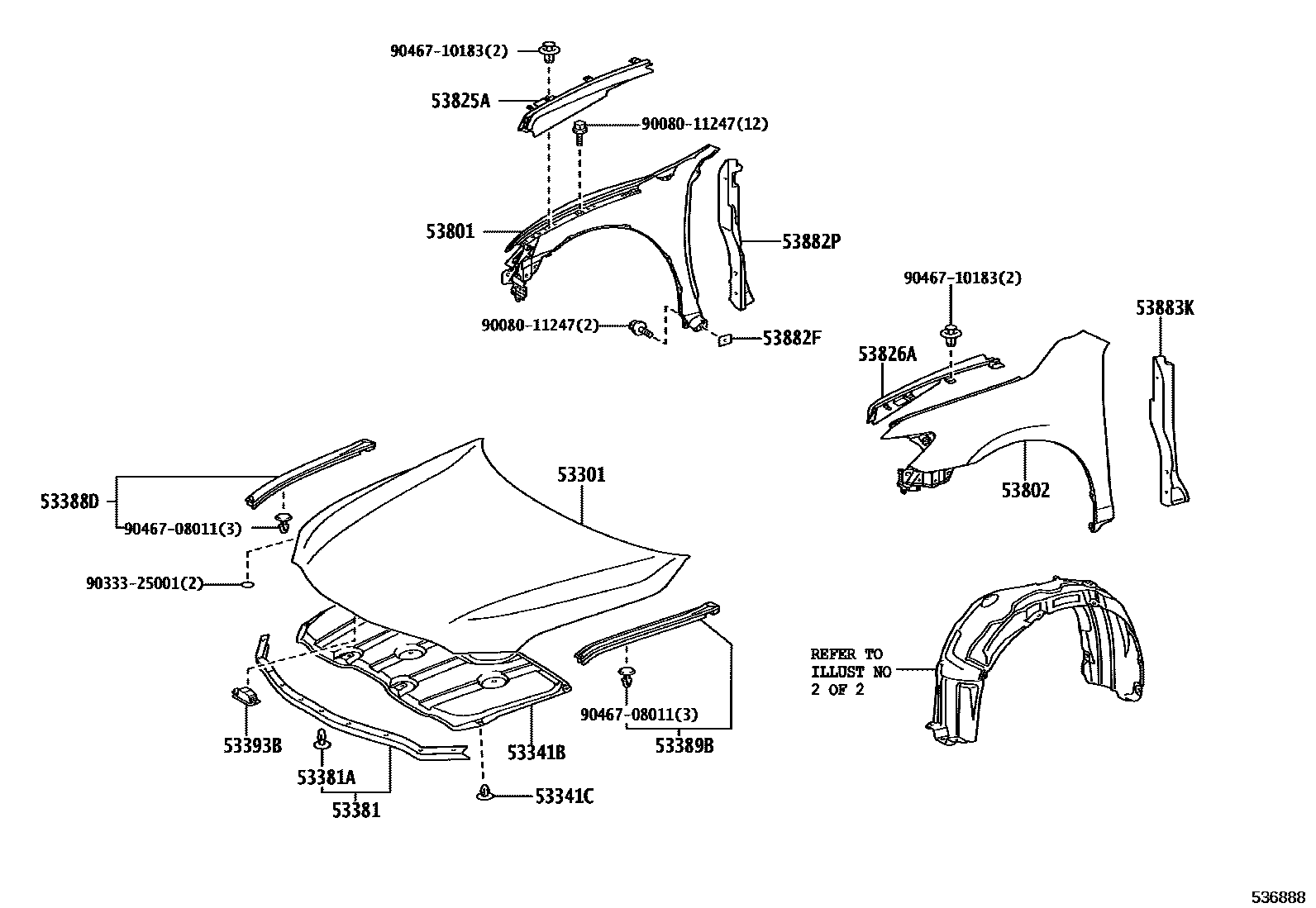

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
CANADA SPEC
53802FENDER SUB-ASSY, FRONT LH
CANADA SPEC
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53882FSEAL, FRONT FENDER
53882PSEAL, FRONT FENDER, RH
53883KSEAL, FRONT FENDER, LH
9008011247
main90080-11247
9033325001
main90333-25001
9046708011
main90467-08011
9046710183
main90467-10183
19 parts on this diagram · 2 diagrams in section
