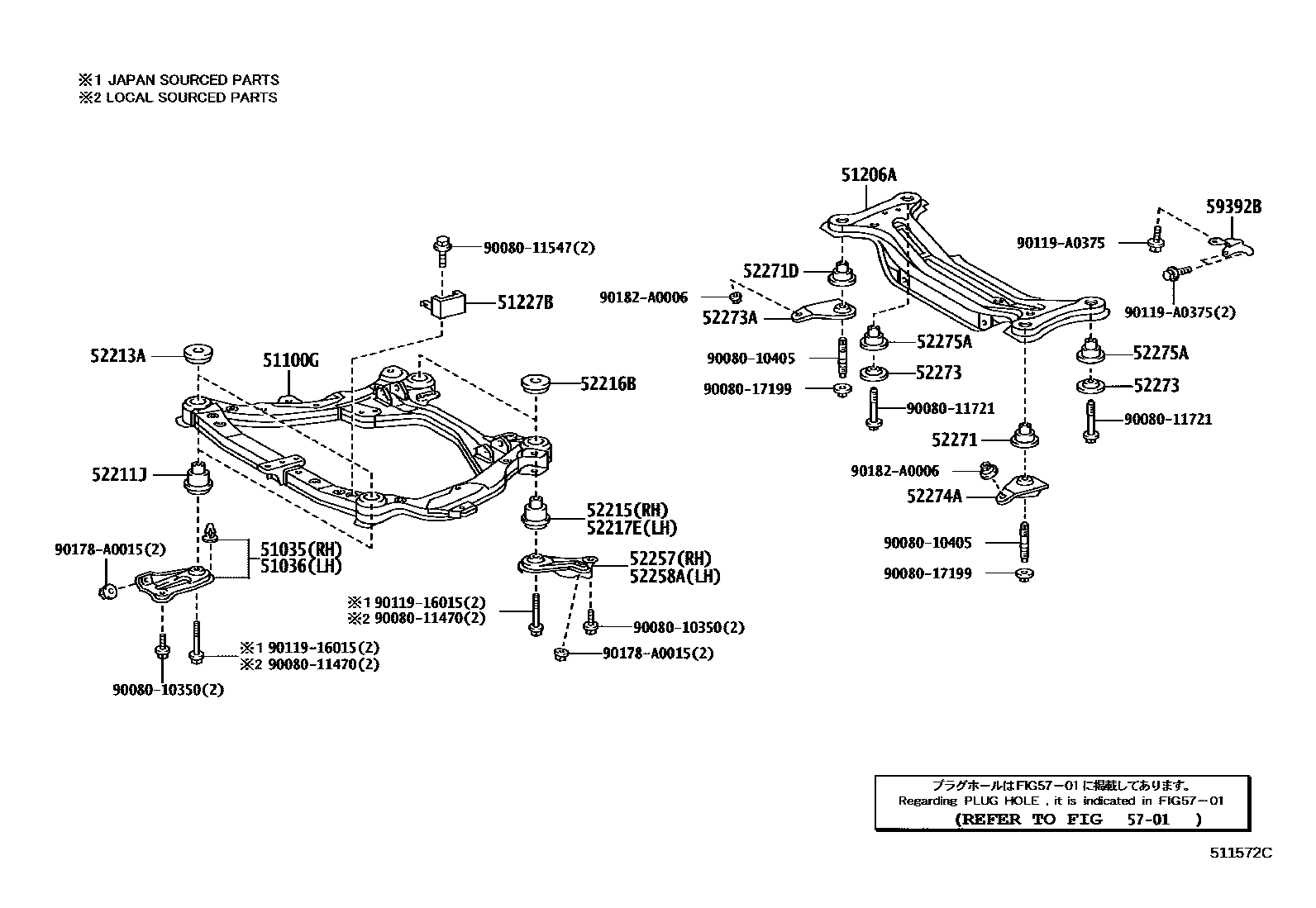

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-07010iAHV40..NAP200610-200903

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-07010iAHV40..NAP200610-200903

51100GFRAME ASSY, FRONT

main51100-06110iAHV40..NAP200610-201103

sub51100-06190

main51100-06190iAHV40..NAP201103

sub51100-06191

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06100iAHV40..NAP200610-200710

sub51206-06103

main51206-06101iAHV40..NAP200710-200809

sub51206-06102

main51206-06102iAHV40..NAP200810-201007

sub51206-06103

main51206-06103iAHV40..NAP201008

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iAHV40..NAP200610-200903

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06080iAHV40..NAP200610-200903

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06080iAHV40..NAP200610-200903

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-07030iAHV40..NAP200610-200903

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-07020iAHV40..NAP200610-200903

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-07010iAHV40..NAP200610-200903

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-07010iAHV40..NAP200610-200903

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-07010iAHV40..NAP200610-200903

52271CUSHION, REAR SUSPENSION MEMBER

main52272-06040iAHV40..NAP200610-201103

sub52272-06041

main52272-06041iAHV40..NAP201104

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06050iAHV40..NAP200610-201103

sub52271-06051

main52271-06051iAHV40..NAP201104

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010iAHV40..NAP200610-200903

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-06010iAHV40..NAP200610-200903

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-06010iAHV40..NAP200610-200903

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050iAHV40..NAP200610-201103

sub52275-06051

main52275-06051iAHV40..NAP201104

5701

59392BRETAINER, REAR FLOOR, NO.2

main59392-33010iAHV40..NAP200610-200903

9008010350

main90080-10350

9008010405

main90080-10405

9008011470

main90080-11470

9008011547

main90080-11547

9008011721

main90080-11721

9008017199

main90080-17199

9011916015

main90119-16015

90119A0375

main90119-A0375

90178A0015

main90178-A0015

90182A0006

main90182-A0006

30 parts on this diagram · 2 diagrams in section
