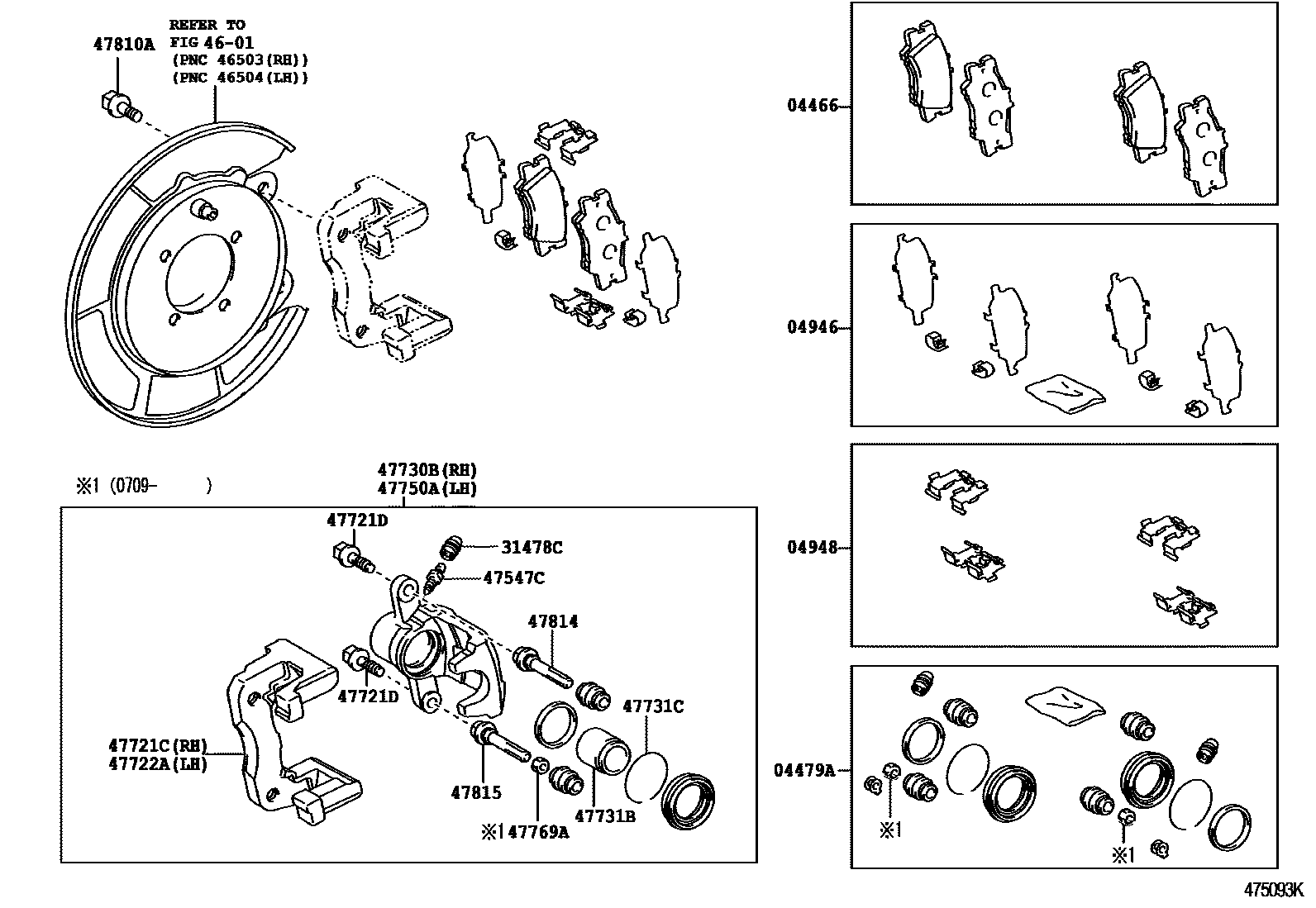

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-06060iAHV40..NAP200610-200707

MARK NBK D6234

sub04466-06090

main04466-06090iAHV40..NAP200707-200903

MARK NBK D6247

sub04466-33180

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06250iAHV40..NAP200610-200709

sub04479-06280

main04479-06280iAHV40..NAP200709-200903

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06070iAHV40..NAP200610-200903

sub04946-06130

04948FITTING KIT, DISC BRAKE, REAR

main04948-06030iAHV40..NAP200610-200709

sub04948-06031

main04948-06031iAHV40..NAP200709-200903

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iAHV40..NAP200610-200903

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12130iAHV40..NAP200709-201109

main47547-20010iAHV40..NAP200610-200709

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-06050iAHV40..NAP200610-200709

sub47821-06052

sub47814-06052

sub47879-06052

main47821-06052iAHV40..NAP200709-201102

sub47821-06053

main47821-06053iAHV40..NAP201102-201103

main47821-06054iAHV40..NAP201103-201109

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA604iAHV40..NAP200610-201109

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-06050iAHV40..NAP200610-200709

sub47822-06052

sub47814-06052

sub47879-06052

main47822-06052iAHV40..NAP200709-201102

main47822-06053iAHV40..NAP201102-201103

main47822-06054iAHV40..NAP201103-201109

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-06050iAHV40..NAP200610-200709

sub47830-06052

main47830-06052iAHV40..NAP200709-201103

main47830-06053iAHV40..NAP201103-201109

47731BPISTON, REAR DISC BRAKE

main47831-06050iAHV40..NAP200610-201109

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90016-AU502iAHV40..NAP200709-201109

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-06050iAHV40..NAP200610-200709

sub47850-06052

main47850-06052iAHV40..NAP200709-201103

main47850-06053iAHV40..NAP201103-201109

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-06052iAHV40..NAP200709-201103

main47879-06120iAHV40..NAP201103-201109

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-11440iAHV40..NAP200610-201109

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06050iAHV40..NAP200610-201103

main47814-06120iAHV40..NAP201103-201109

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47814-06050iAHV40..NAP200610-200709

main47814-06052iAHV40..NAP200709-201103

main47815-06120iAHV40..NAP201103-201109

18 parts on this diagram · 1 diagram in section
