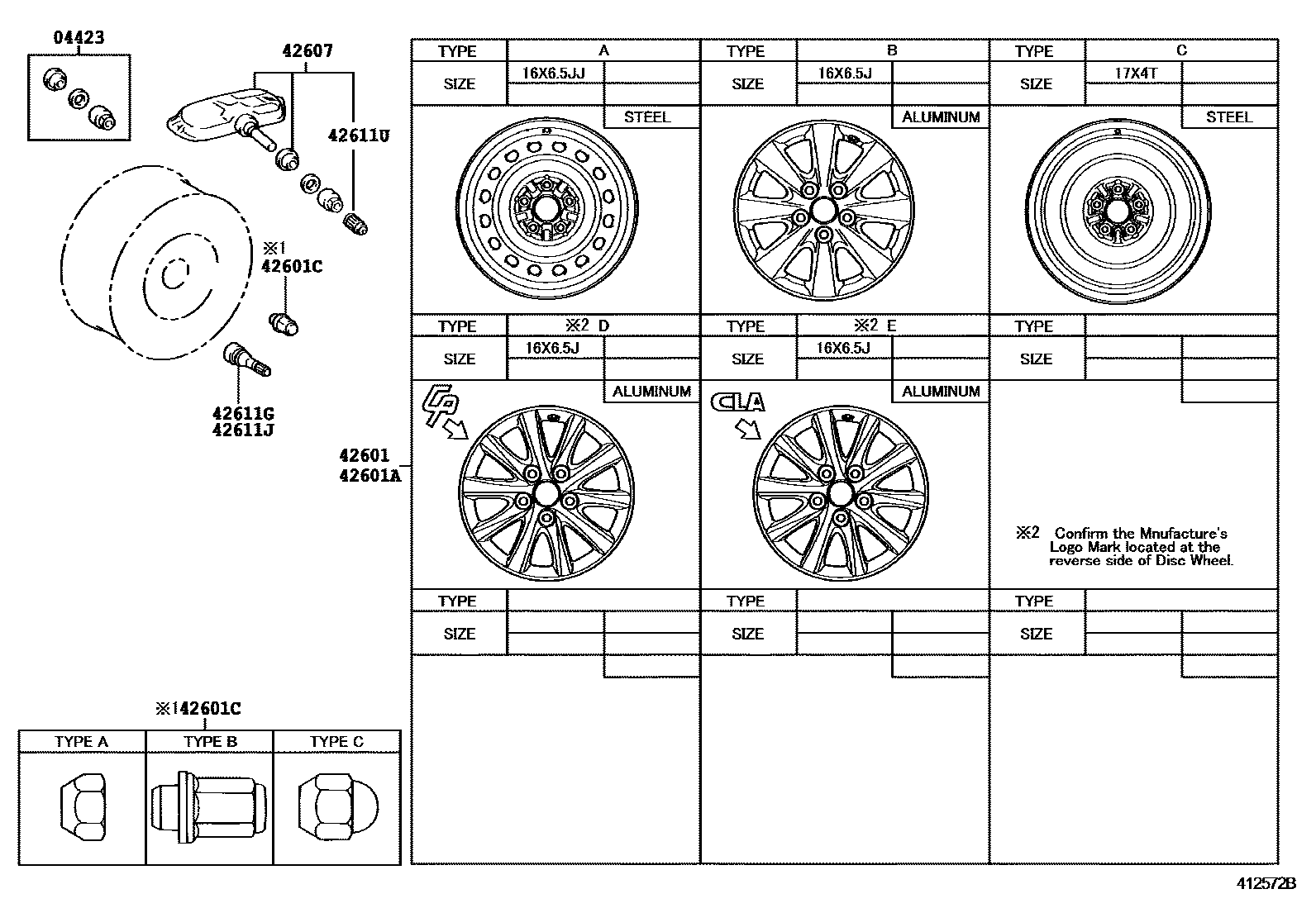

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iAHV40..NAP200610-200903

42601WHEEL, DISC

main42611-06360iAHV40..NAP200610-200611

16X6.5J,#,TYPE B:REFER ILLUST.

sub42611-06361

main42611-06361iAHV40..NAP200611-200903

16X6.5J,#,TYPE B:REFER ILLUST.

main4261A-06010iAHV40..NAP200910-201004

16X6.5J,#,TYPE D:REFER ILLUST.

main4261A-06020iAHV40..NAP200903

16X6.5J,#,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-06380iAHV40..NAP200610-200903

17X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001iAHV40..NAP200610-200903

TYPE B:REFER ILLUST.

sub90942-A1009

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-06011iAHV40..NAP200610-200903

sub42607-06012

42611GVALVE (FOR TUBELESS TIRE)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iAHV40..NAP200610-200903

42611UCAP, TIRE VALVE

main90942-A5002iAHV40..NAP200610-200903

8 parts on this diagram · 2 diagrams in section
