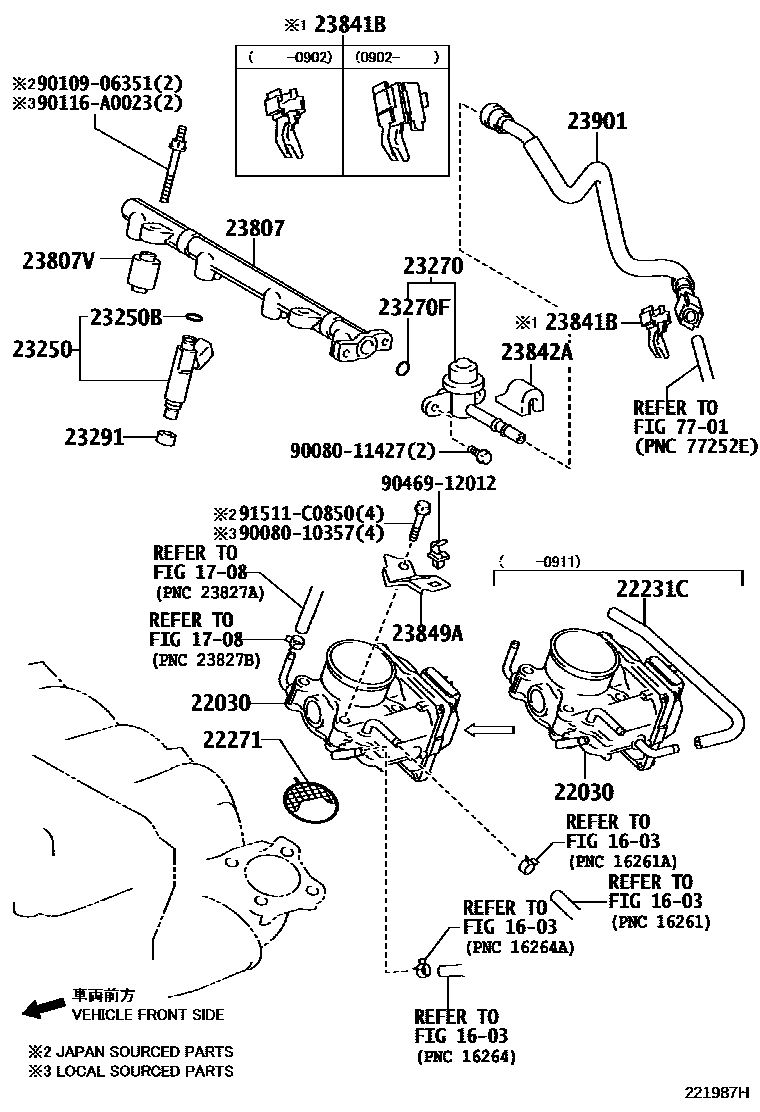

FUEL INJECTION SYSTEM
1603
1708
22231CHOSE, THROTTLE BODY, NO.1
22271GASKET, THROTTLE BODY
(L)
(J)
23250INJECTOR ASSY, FUEL
MARK 23250-0H050
MARK 23250-28060
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
(L)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
(L)
(J)
23901TUBE SUB-ASSY, FUEL
7701
9008010357
main90080-10357
9008011427
main90080-11427
9010906351
90116A0023
main90116-A0023
9046912012
91511C0850
23 parts on this diagram · 1 diagram in section
