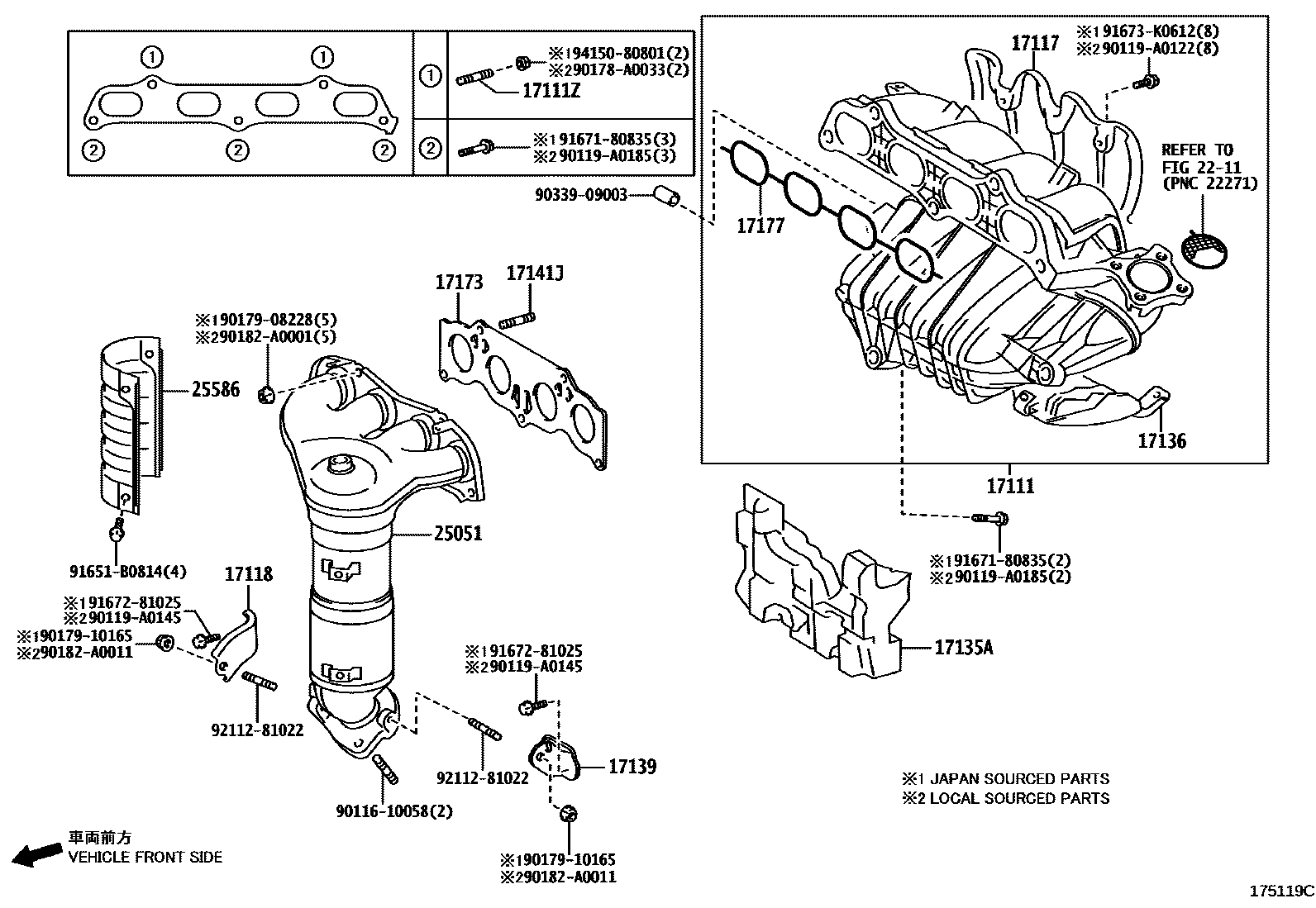

MANIFOLD
17111MANIFOLD, INTAKE
(L)
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
(J)
(L)
17117INSULATOR, INTAKE PIPE
(L)
(J)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
(J)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
9011610058
main90116-10058
90119A0122
main90119-A0122
90119A0145
main90119-A0145
90119A0185
main90119-A0185
90178A0033
main90178-A0033
9017908228
main90179-08228
9017910165
main90179-10165
90182A0001
main90182-A0001
90182A0011
main90182-A0011
9033909003
main90339-09003
91651B0814
main91651-B0814
9167180835
main91671-80835
9167281025
main91672-81025
91673K0612
main91673-K0612
9211281022
main92112-81022
9415080801
main94150-80801
29 parts on this diagram · 1 diagram in section
