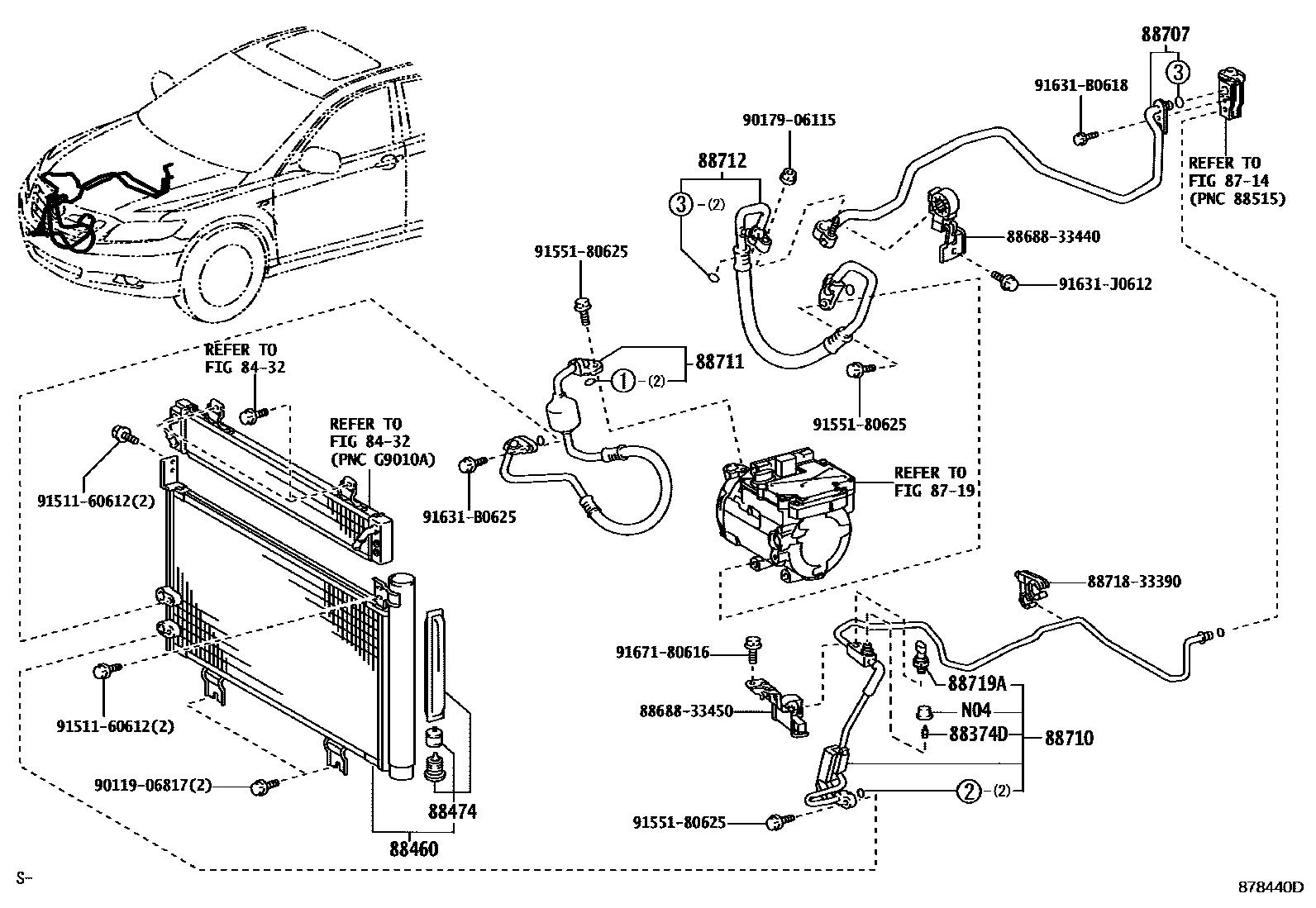

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8432

8714

8719

88374DVALVE, SERVICE NO.3

main88374-30010iAHV40..JPP200901-201108

88460CONDENSER ASSY, COOLER

main88460-33090iAHV40..JPP200603-201108

sub88460-33120

88474DRYER, COOLER

main88474-47020iAHV40..JPP200603-201108

88707PIPE SUB-ASSY, SUCTION

main88707-33030iAHV40..JPP200603-201108

88710TUBE ASSY, AIR CONDITIONER

main88710-33350iAHV40..JPP200603-201108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33220iAHV40..JPP200603-201108

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33240iAHV40..JPP200603-201108

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAHV40..JPP200605-201108

main88719-40020iAHV40..JPP200603-200605

8868833440BRACKET, COOLER DIAPHRAGM

main88688-33440

8868833450BRACKET, COOLER DIAPHRAGM

main88688-33450

8871833390PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33390

9011906817

main90119-06817

9017906115

main90179-06115

9151160612

main91511-60612

9155180625

main91551-80625

91631B0618

main91631-B0618

91631B0625

main91631-B0625

91631J0612

main91631-J0612

9167180616

main91671-80616

22 parts on this diagram · 2 diagrams in section
