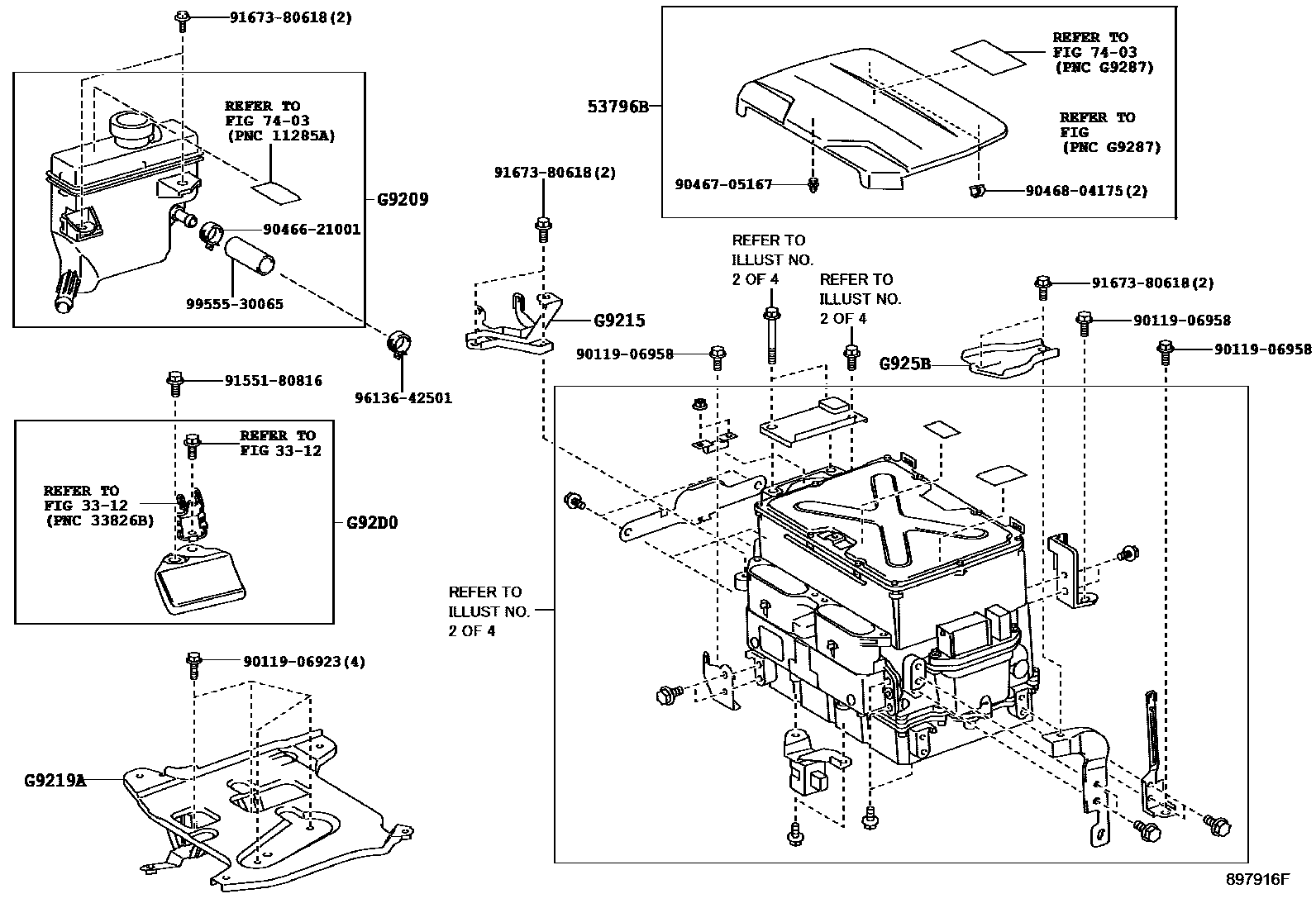

HEV INVERTER

0001 1 0002 1 0003 1 0004 1

3312

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main51470-33010iAHV40..JPP200603-200901

7403

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920933010iAHV40..JPP200603-200901

G9215BRACKET, INVERTER, NO.2

mainG921533010iAHV40..JPP200603-200901

G9219ABRACKET, INVERTER TRAY

mainG921933010iAHV40..JPP200603-200901

G925BBRACKET, INVERTER, NO.6

mainG925B33010iAHV40..JPP200603-200901

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D033010iAHV40..JPP200603-200901

9011906923

main90119-06923

9011906958

main90119-06958

9046621001

main90466-21001

9046705167

main90467-05167

9046804175

main90468-04175

9155180816

main91551-80816

9167380618

main91673-80618

9613642501

main96136-42501

9955530065

main99555-30065

17 parts on this diagram · 4 diagrams in section
