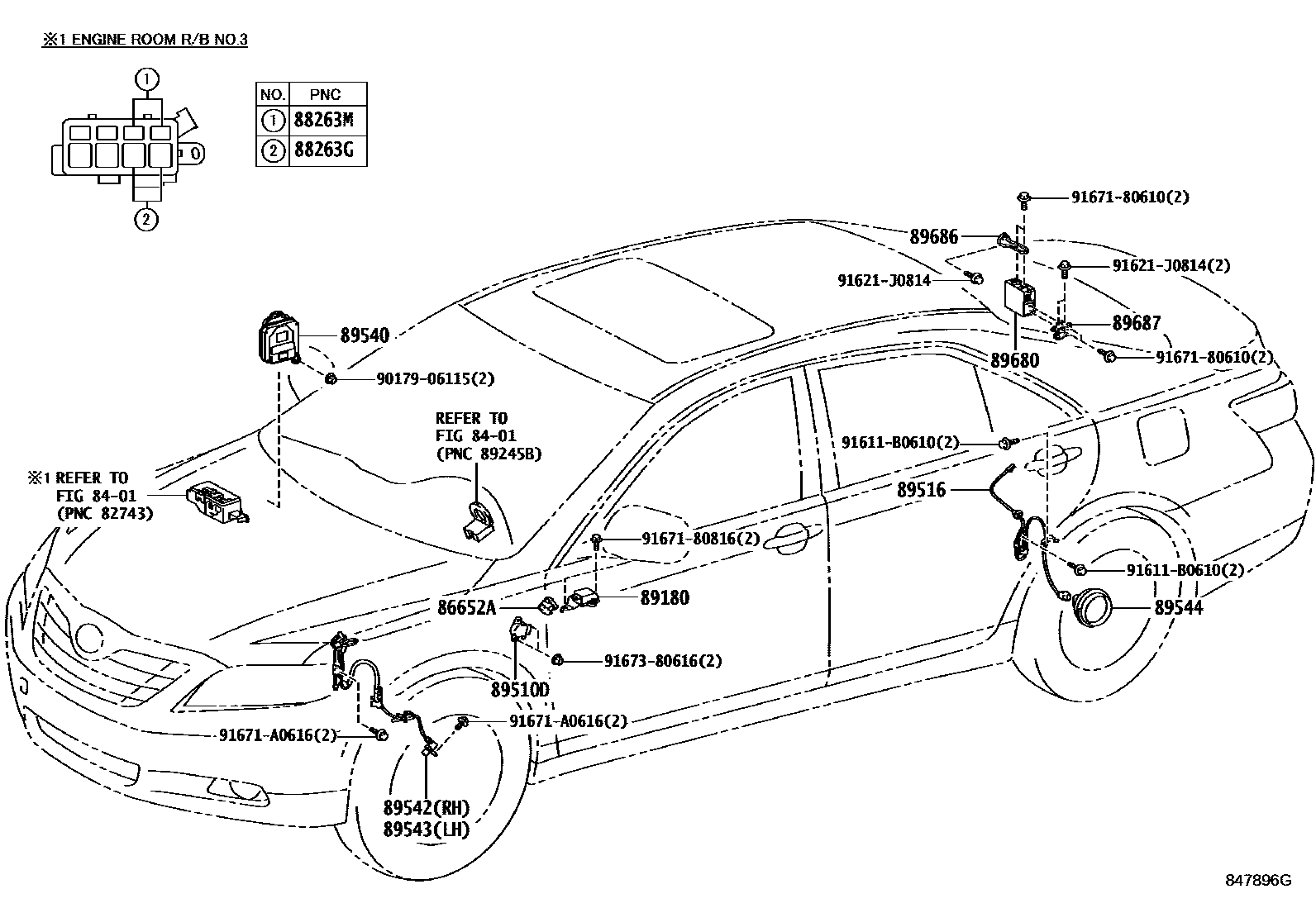

ABS & VSC
8401
86652ABUZZER ASSY, SKID CONTROL
88263GRELAY, SKID CONTROL
88263MRELAY, ABS SOLENOID
89180SENSOR ASSY, YAWRATE
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516WIRE, SKID CONTROL SENSOR
RH
LH
RH
LH
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89544SENSOR, SKID CONTROL
89680SUPPLY ASSY, BRAKE CONTROL POWER
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2
9017906115
main90179-06115
91611B0610
main91611-B0610
91621J0814
main91621-J0814
9167180610
main91671-80610
9167180816
main91671-80816
91671A0616
main91671-A0616
9167380616
main91673-80616
21 parts on this diagram · 2 diagrams in section
