ELECTRONIC FUEL INJECTION SYSTEM

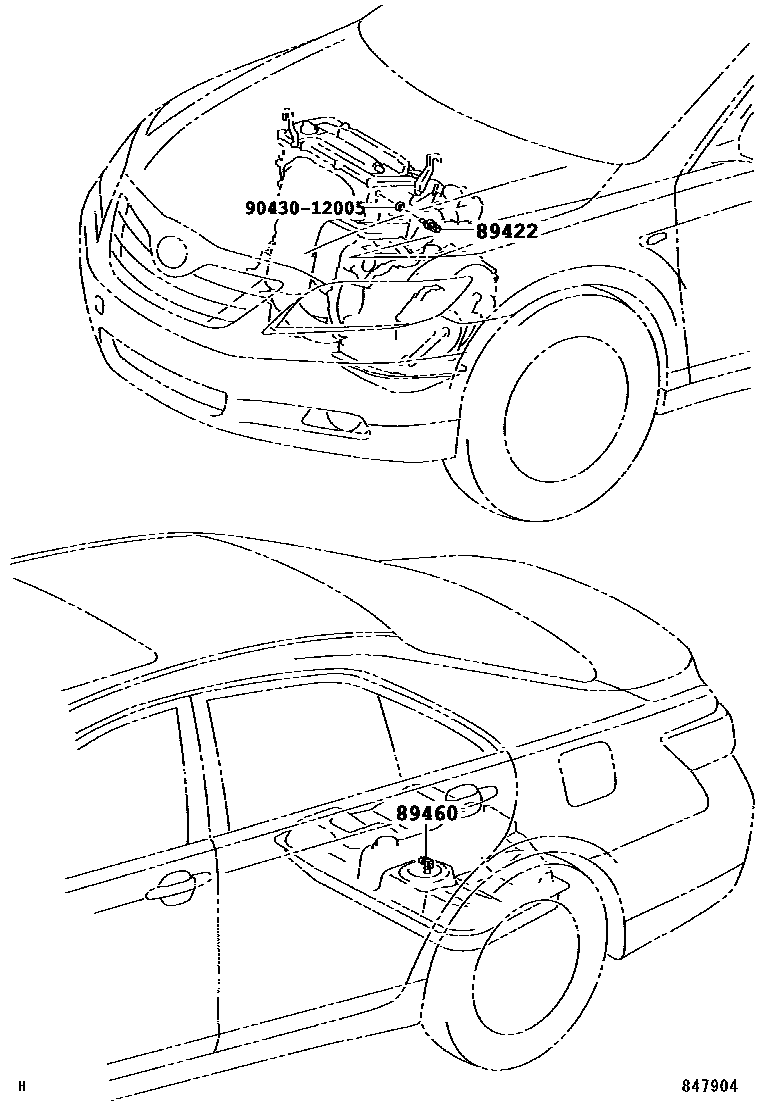

Parts diagram

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200603-201108

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020i200603-201108

9043012005

main90430-12005

3 parts on this diagram · 1 diagram in section
