SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1IGNITION & COMBINATION SWITCH0008 1SEAT 0009 1DOOR,ROOF,FLOOR & LUGGAGE

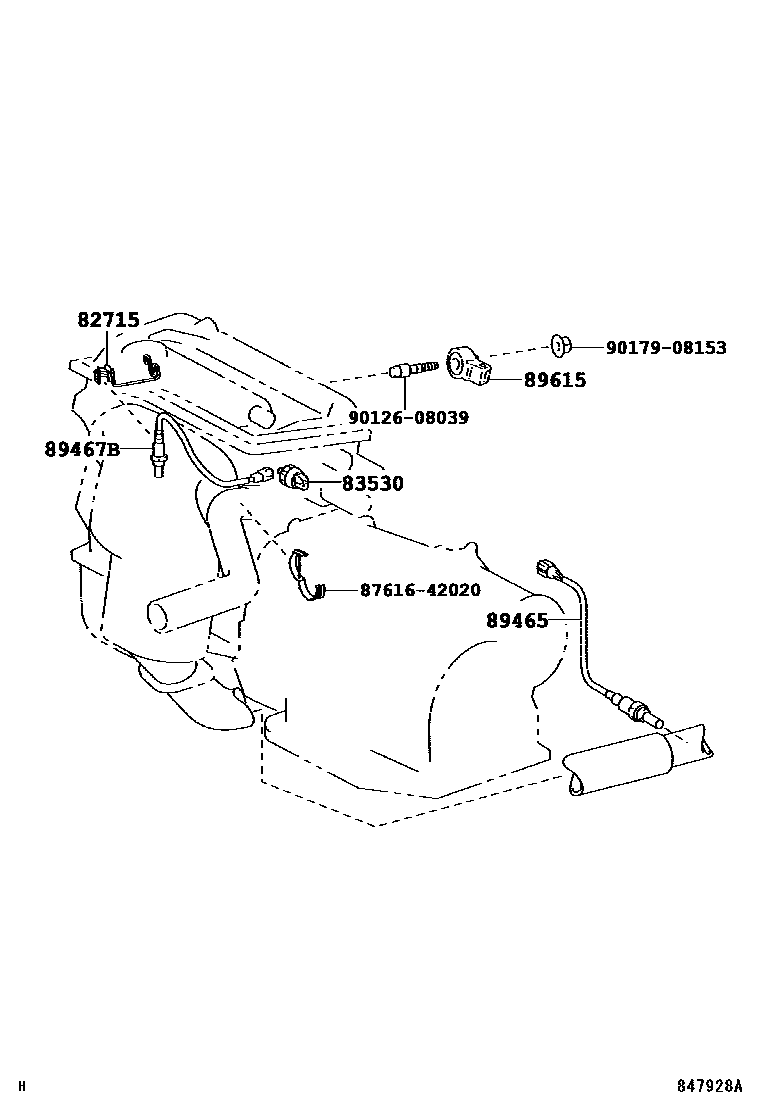

82715BRACKET,WIRING HARNESS CLAMP

main82715-33C20iAHV40..JPP200603-201108

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAHV40..JPP200603-201108

DENSO

main83530-60020iAHV40..JPP200603-201108

YAZAKI

main83530-AA011iAHV40..JPP200705-200901

FASCO

sub83530-0E010

89465SENSOR, OXYGEN

main89465-33440iAHV40..JPP200603-201108

89467BSENSOR, AIR FUEL RATIO

main89467-33140iAHV40..JPP200603-200907

main89467-33190iAHV40..JPP200907-201108

89615SENSOR, KNOCK CONTROL

main89615-20090iAHV40..JPP200603-201108

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

8 parts on this diagram · 9 diagrams in section
