WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1HIGH-TENSION CABLE 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CONNECTOR

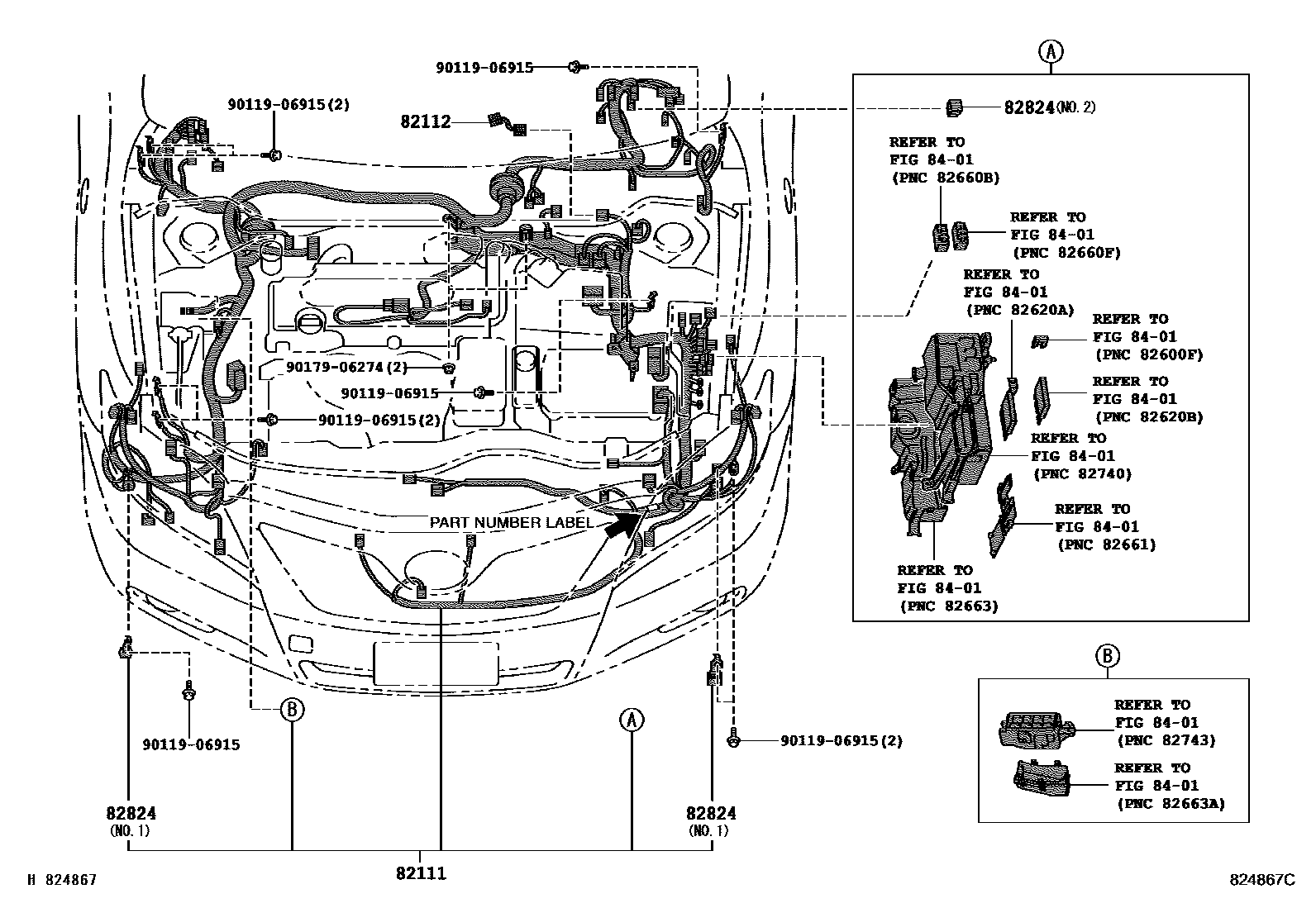

82111WIRE, ENGINE ROOM MAIN

main82111-33E90iAHV40..JPP200603-200711

sub82111-33E91

main82111-33E91iAHV40..JPP200712-200804

main82111-33E92iAHV40..JPP200804-200901

main82111-33J70iAHV40..JPP200901-201108

82112WIRE, ENGINE ROOM, NO.2

main82112-33060iAHV40..JPP200603-201108

82824CONNECTOR, WIRING HARNESS

main82824-48020iAHV40..JPP200603-201108

NO.1

main82824-52280iAHV40..JPP200603-201108

NO.2

8401

9011906915

main90119-06915

9017906274

main90179-06274
