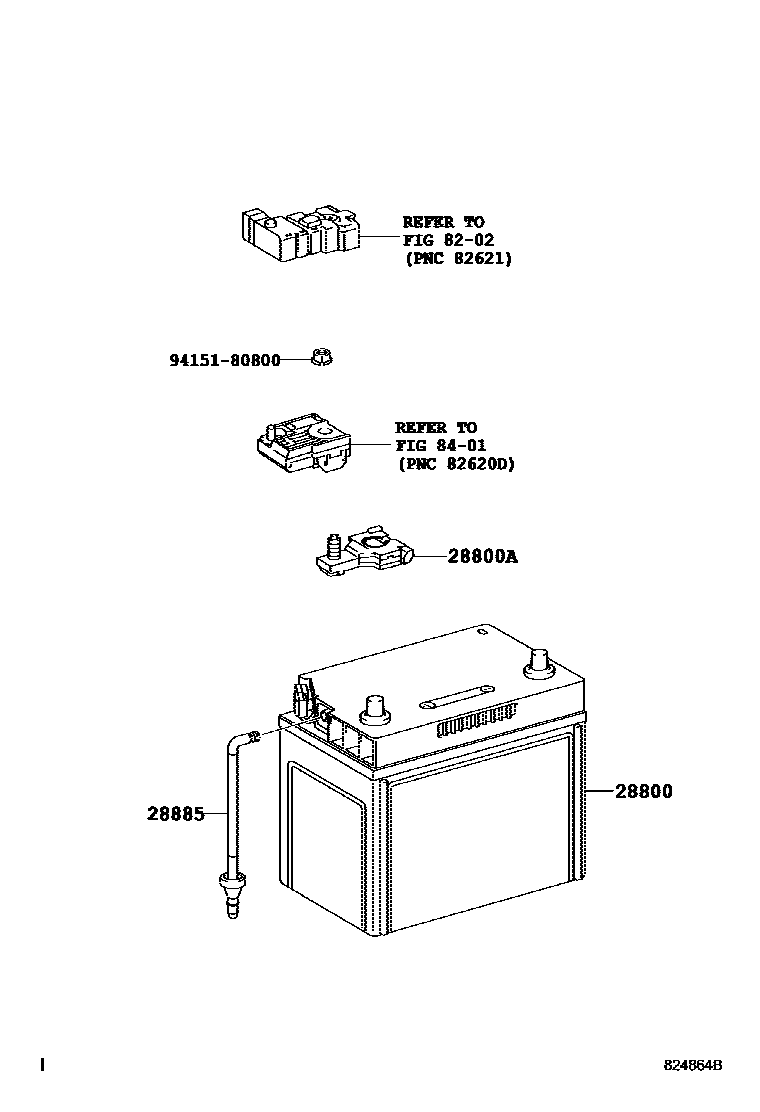

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-28060i2AZFXE..AHV40..JPP200901-201008

S65D26R

sub28800-28061

main28800-28061i2AZFXE..AHV40..JPP201009-201108

S65D26R

sub28800-28062

main28800-28090i2AZFXE..AHV40..JPP200603-200901

S65D26R

sub28800-28061

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2AZFXE..AHV40..JPP200603-201108

28885HOSE, BATTERY ROOM VENTILATION

main28885-28080i2AZFXE..AHV40..JPP200603-200901

8202

8401

9415180800

main94151-80800

6 parts on this diagram · 4 diagrams in section
