SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
GRAY,TRIM1#
GREGE,TRIM4#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
GRAY,TRIM1#
GREGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
GRAY,TRIM1#
GREGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
GRAY,TRIM1#
GREGE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
9010510523
9010511036
9010911028
9017811002
9017911010
91511B0614

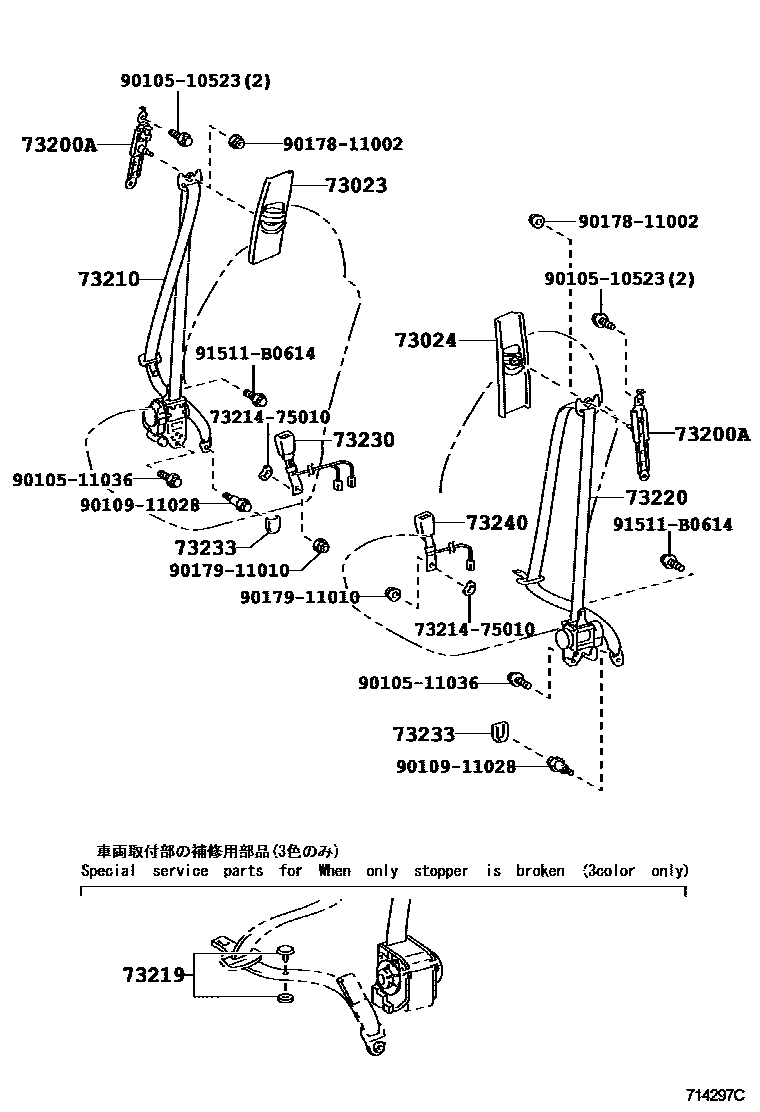

16 parts on this diagram · 2 diagrams in section
