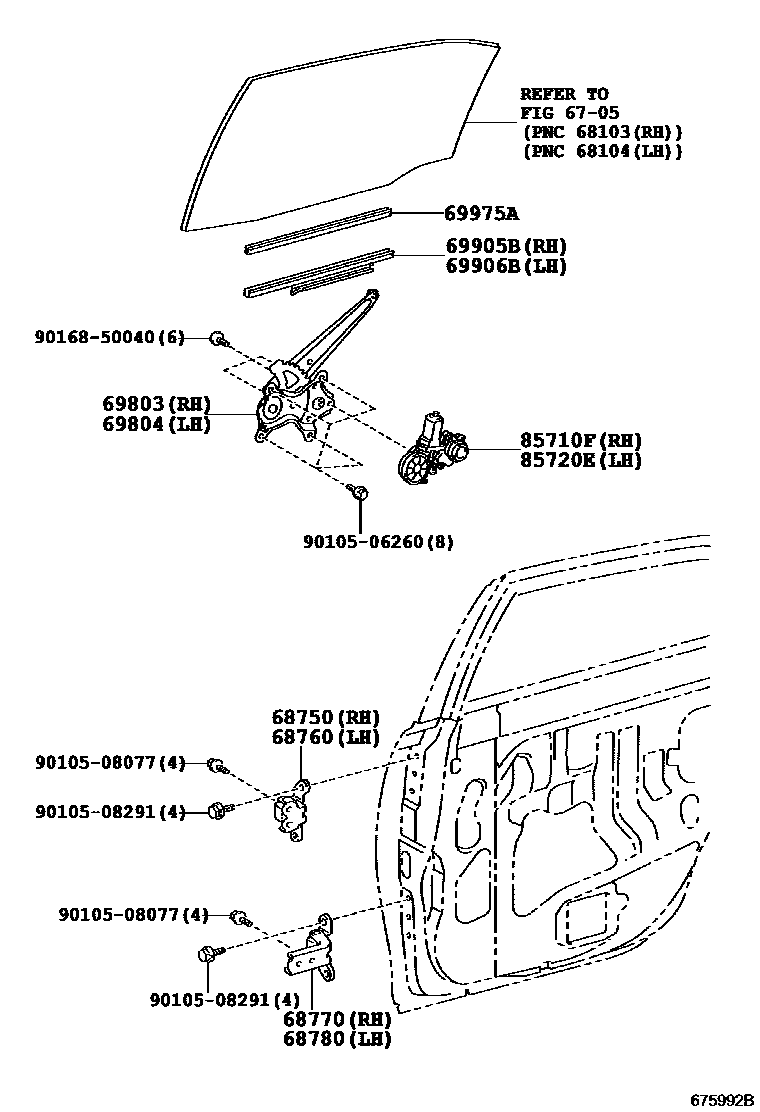

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iAHV40..JPP200603-200609

sub68750-20121

main68750-20121iAHV40..JPP200610-201108

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iAHV40..JPP200603-200609

sub68760-20121

main68760-20121iAHV40..JPP200610-201108

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iAHV40..JPP200603-200609

sub68770-52031

main68770-52031iAHV40..JPP200610-201108

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iAHV40..JPP200603-200609

sub68780-52031

main68780-52031iAHV40..JPP200610-201108

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33050iAHV40..JPP200603-201108

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33050iAHV40..JPP200603-201108

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-33020iAHV40..JPP200603-201108

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-33020iAHV40..JPP200603-201108

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010iAHV40..JPP200603-201108

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-33201iAHV40..JPP200901-201108

main85720-35140iAHV40..JPP200603-200901

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-33191iAHV40..JPP200901-201108

main85710-35180iAHV40..JPP200603-200901

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
