SIDE MEMBER
5202
5701
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58747APROTECTOR, QUARTER PANEL, REAR RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61167EBRACKET, NO.6 PILLAR OUTER
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61415BEXTENSION, ROCKER, OUTER RH
61418AREINFORCEMENT, ROCKER PANEL, RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61697DHOUSING, QUARTER PANEL END, RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
MOON ROOF-WITH
62939ASILENCER, QUARTER VENT
64116BREINFORCEMENT, UPPER BACK, RH
65637LINER, REAR WHEEL HOUSE, RH
9018906065
main90189-06065
9046706206C0
main90467-06206C0
9054111010
main90541-11010

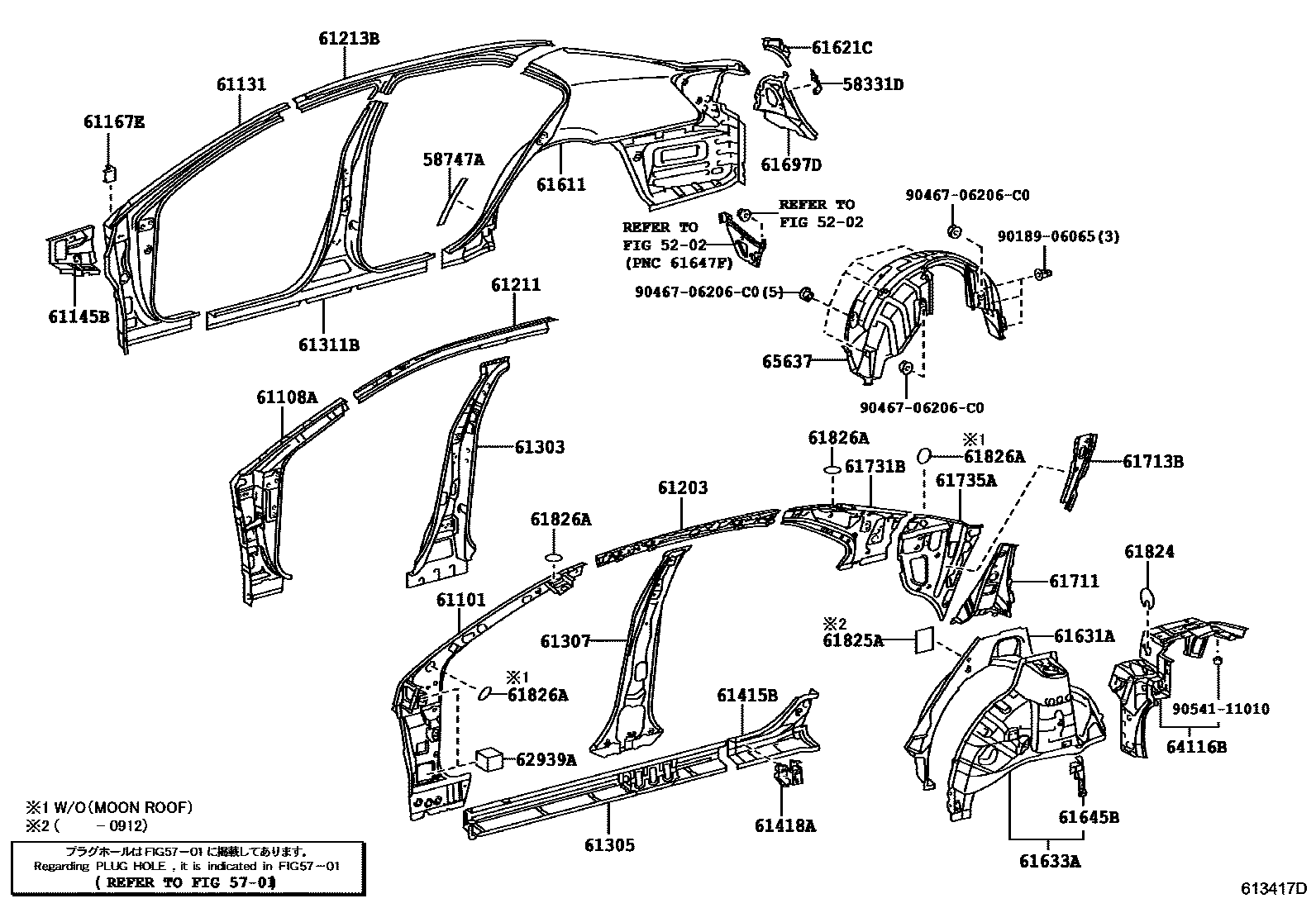

37 parts on this diagram · 2 diagrams in section
