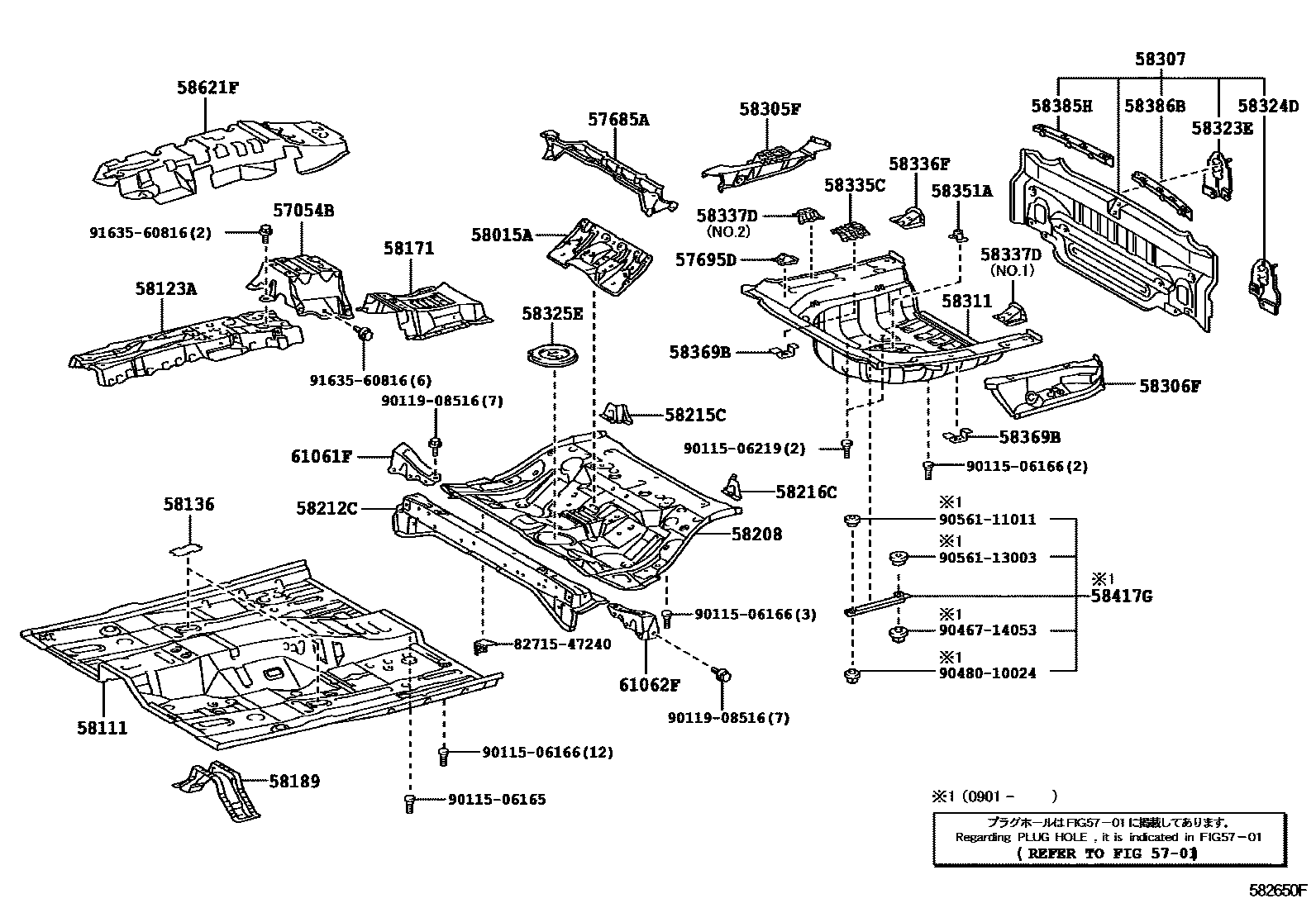

FLOOR PAN & LOWER BACK PANEL
5701
57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4
57685ABRACKET, REAR FLOOR MOUNTING, NO.1 RH
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58335CPLATE, FLOOR SIDE, FRONT RH
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
NO.1
NO.2
58351ABRACKET, SPARE WHEEL CARRIER
58369BBRACKET, FUEL TUBE, NO.3
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58417GBOARD, REAR FLOOR, NO.3
58621FSILENCER, CENTER CONSOLE, NO.1
61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1
61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2
8271547240BRACKET,WIRING HARNESS CLAMP
main82715-47240
9011506165
main90115-06165
9011506166
main90115-06166
9011506219
main90115-06219
9011908516
main90119-08516
9046714053
main90467-14053
9048010024
main90480-10024
9056111011
main90561-11011
9056113003
main90561-13003
9163560816
main91635-60816
42 parts on this diagram · 1 diagram in section
