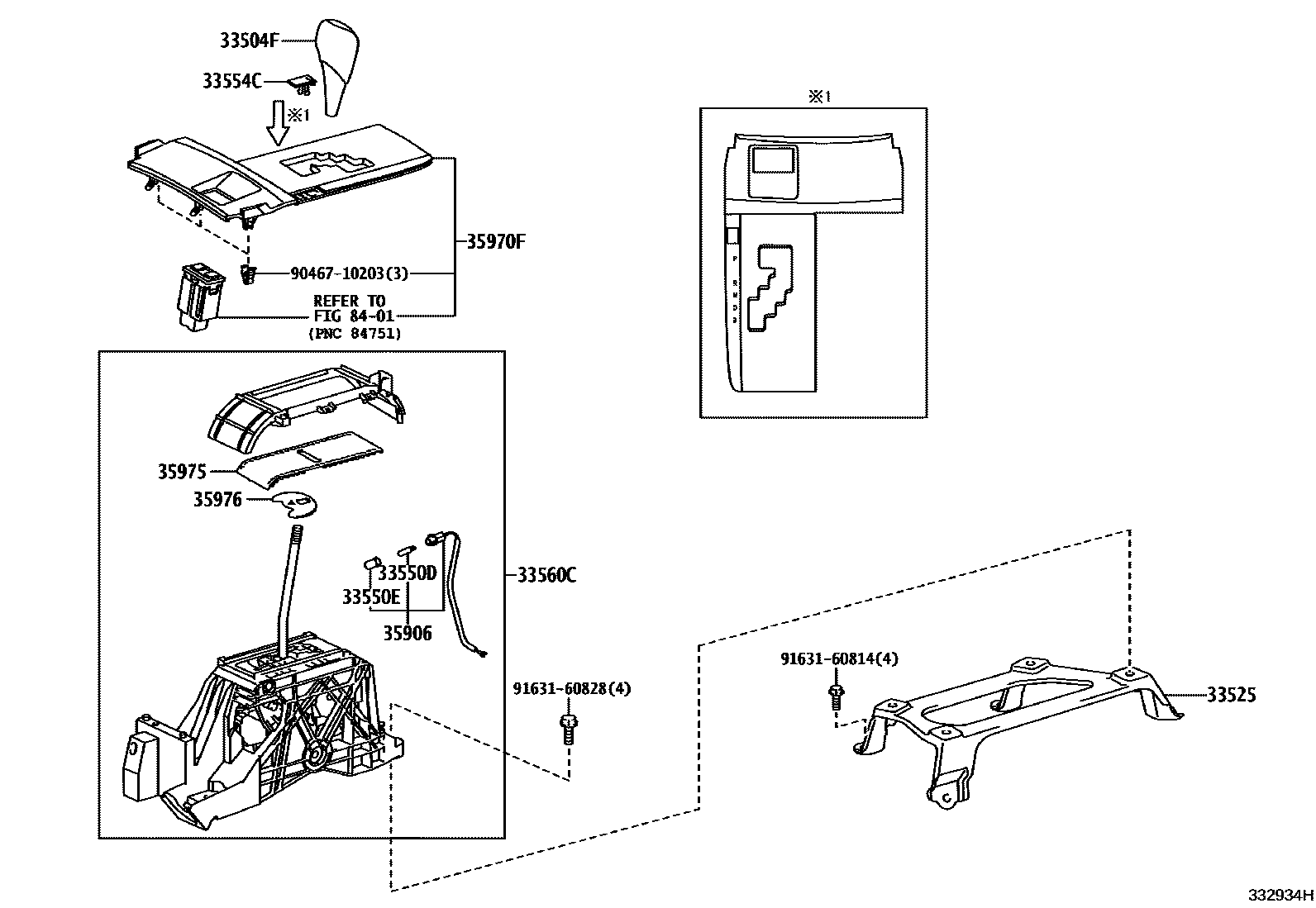

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33030-B1i200603-201108

MD.GRAY,TRIM1#

sub33504-33030

sub33504-12460

main33504-33030-E0i200603-201108

ASH BROWN,TRIM4#

sub33504-33030

sub33504-12460

main33504-33040-B4i200901-201108

HIGH PACKAGE,MD.GRAY,TRIM1#

sub33504-12470

sub33504-33040

main33504-33040-E1i200901-201108

HIGH PACKAGE,ASH BROWN,TRIM4#

sub33504-12470

sub33504-33040

33525SUPPORT, SHIFT LEVER

main58123-33020i200603-201108

33550DBULB, POSITION INDICATOR LAMP

main90981-11018i200603-201108

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04049i200603-201108

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-33090i200603-201108

33560CLEVER ASSY, SHIFT, LOWER

main33560-33130i200603-201108

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33130i200603-200801

sub35906-33131

main35906-33131i200801-201108

35970FHOUSING ASSY, POSITION INDICATOR

main35970-33060-E0i200901-201108

HIGH PACKAGE,BROWN,TRIM1#,4#

main35970-33070-E0i200901-201108

HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BROWN,TRIM1#,4#

main35970-33200-B0i200603-201108

SILVER,TRIM1#,4#

main35970-33210-B0i200603-200901

SEAT HEATER-WITH,SILVER,TRIM1#,4#

main35970-33210-B0i200901-201108

*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),SILVER,TRIM1#,4#

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-33110i200603-201108

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-33130i200603-201108

8401

9046710203

main90467-10203

9163160814

main91631-60814

9163160828

main91631-60828

14 parts on this diagram · 3 diagrams in section
