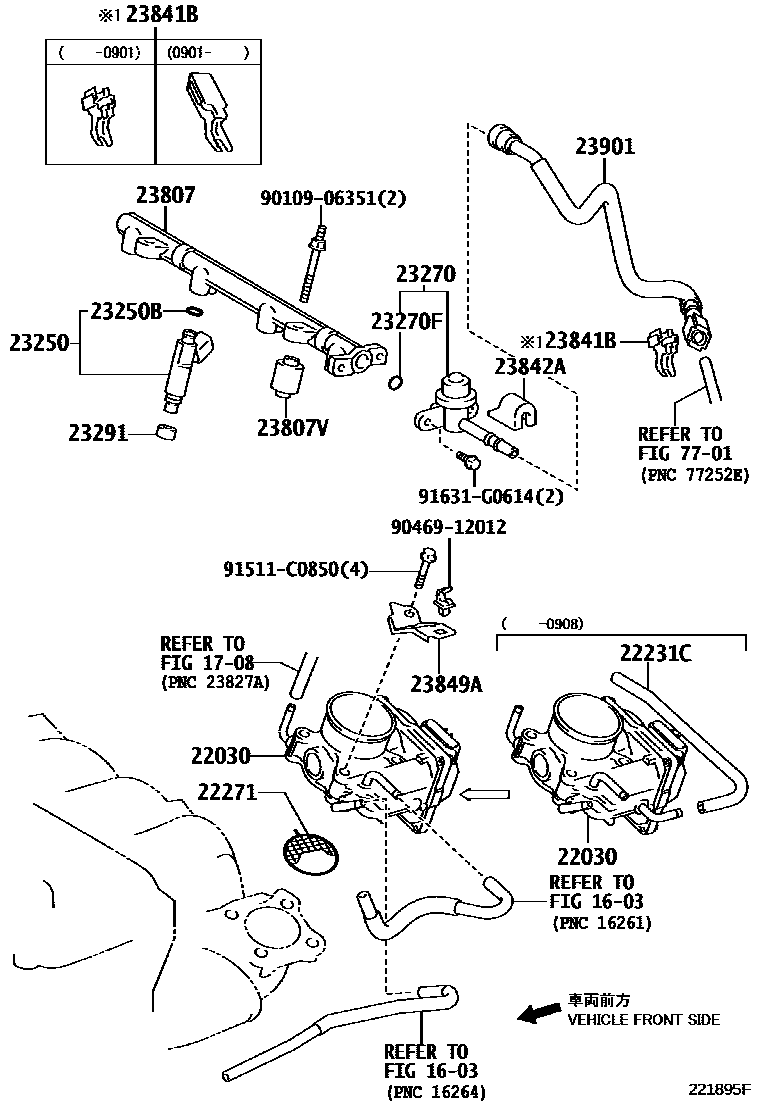

FUEL INJECTION SYSTEM

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i2AZFXE..AHV40..JPP200603-200907

sub22030-28071

main22030-28071i2AZFXE..AHV40..JPP200908-201108

22231CHOSE, THROTTLE BODY, NO.1

main22231-28060i2AZFXE..AHV40..JPP200603-200908

22271GASKET, THROTTLE BODY

main22271-75031i2AZFXE..AHV40..JPP200603-201108

23250INJECTOR ASSY, FUEL

main23209-28060i2AZFXE..AHV40..JPP200603-200901

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2AZFXE..AHV40..JPP200603-200607

main90301-07037i2AZFXE..AHV40..JPP200607-200901

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28050i2AZFXE..AHV40..JPP200603-200702

sub23270-28051

main23270-28051i2AZFXE..AHV40..JPP200702-200801

sub23270-28052

main23270-28052i2AZFXE..AHV40..JPP200801-201108

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFXE..AHV40..JPP200603-201108

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i2AZFXE..AHV40..JPP200603-200901

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28031i2AZFXE..AHV40..JPP200603-200901

sub23814-28060

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i2AZFXE..AHV40..JPP200603-200901

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2AZFXE..AHV40..JPP200607-200901

main23841-28010i2AZFXE..AHV40..JPP200603-200606

sub23841-21050

main23841-31070i2AZFXE..AHV40..JPP200901

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2AZFXE..AHV40..JPP200603-200901

23849ASUPPORT, FUEL PIPE

main23849-28050i2AZFXE..AHV40..JPP200603-201108

23901TUBE SUB-ASSY, FUEL

main23901-28330i2AZFXE..AHV40..JPP200603-200901

7701

9010906351

main90109-06351

9046912012

main90469-12012

91511C0850

main91511-C0850

91631G0614

main91631-G0614

21 parts on this diagram · 1 diagram in section
