ABS & VSC

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iAGV1#,GGV1#200811-201010

88263ARELAY, SKID CONTROL

main90084-98032iAGV1#,GGV1#200811-201205

89183ASENSOR, YAWRATE

main89183-0T010iAGV1#,GGV1#200811-201205

89189BBRACKET, YAWRATE SENSOR

main89189-0T010iAGV1#,GGV1#200811-201205

89516WIRE, SKID CONTROL SENSOR

main89516-0T010iAGV10,GGV10200811-201205

89516BWIRE, SKID CONTROL SENSOR

main89516-0T020iAGV10,GGV10200811-201205

89542SENSOR, SPEED, FRONT RH

main89542-0T010iAGV1#,GGV1#200811-201109

sub89542-0T011

main89542-0T011iAGV1#,GGV1#201110-201205

89543SENSOR, SPEED, FRONT LH

main89543-0T010iAGV1#,GGV1#200811-201109

sub89543-0T011

main89543-0T011iAGV1#,GGV1#201110-201205

89545SENSOR, SPEED, REAR RH

main89545-0T010iAGV15,GGV15200811-201109

sub89545-0T011

main89545-0T011iAGV15,GGV15201110-201612

89546SENSOR, SPEED, REAR LH

main89546-0T010iAGV15,GGV15200811-201109

sub89546-0T011

main89546-0T011iAGV15,GGV15201110-201205

89630ACOMPUTER ASSY, 4WD

main89630-73010iAGV15,GGV15200811-201205

9008011342

main90080-11342

9008011620

main90080-11620

90105A0066

main90105-A0066

90119A0182

main90119-A0182

90119A0213

main90119-A0213

90178A0014

main90178-A0014

90178A0023

main90178-A0023

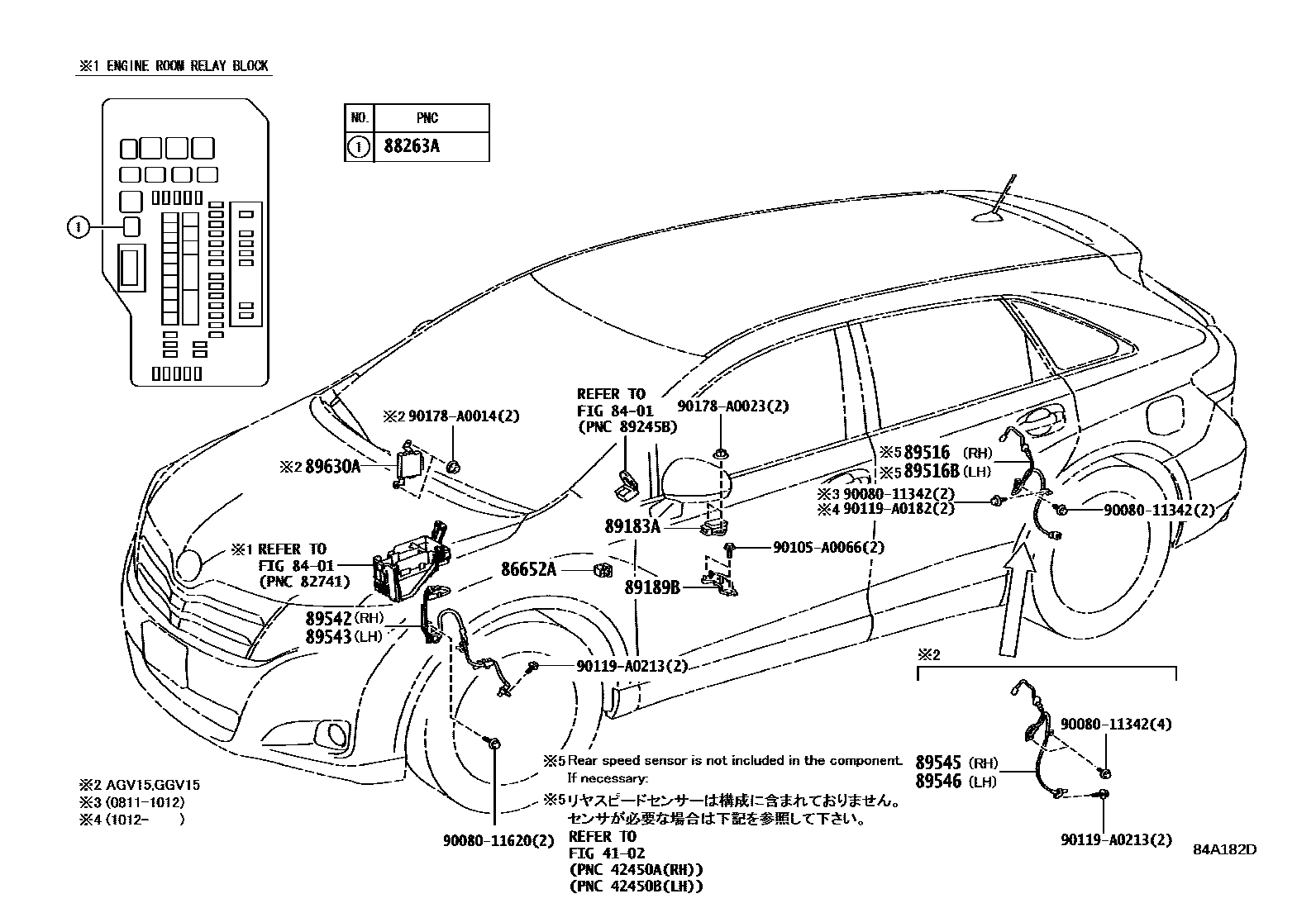

20 parts on this diagram · 1 diagram in section
