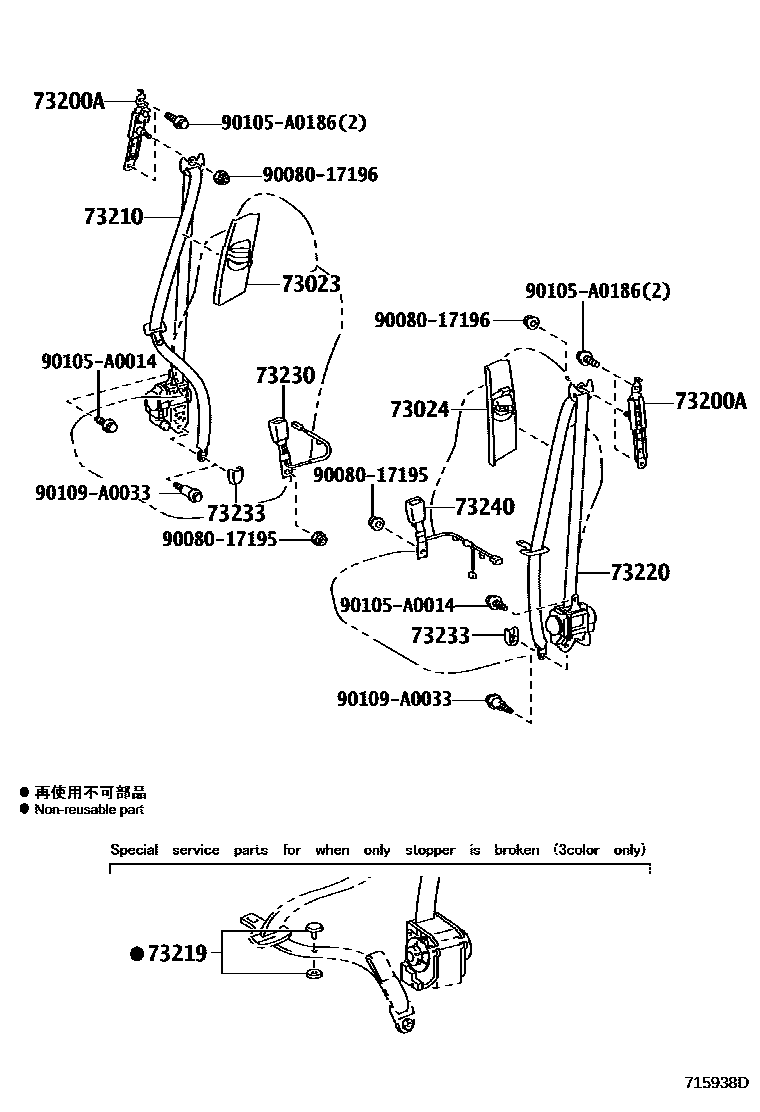

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
LT GRAY,TRIM1#
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK,BLACK
BLACK
GRAY
GRAY,GRAY
BEIGE
BEIGE,BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
WITH(LEATHER & MEMORY),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
WITH(LEATHER & MEMORY),BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE,IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
CORE PACKAGE,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
WITH(LEATHER & MEMORY),BLACK,TRIM2#
9008017195
main90080-17195
9008017196
main90080-17196
90105A0014
main90105-A0014
90105A0186
main90105-A0186
90109A0033
main90109-A0033
14 parts on this diagram · 2 diagrams in section
