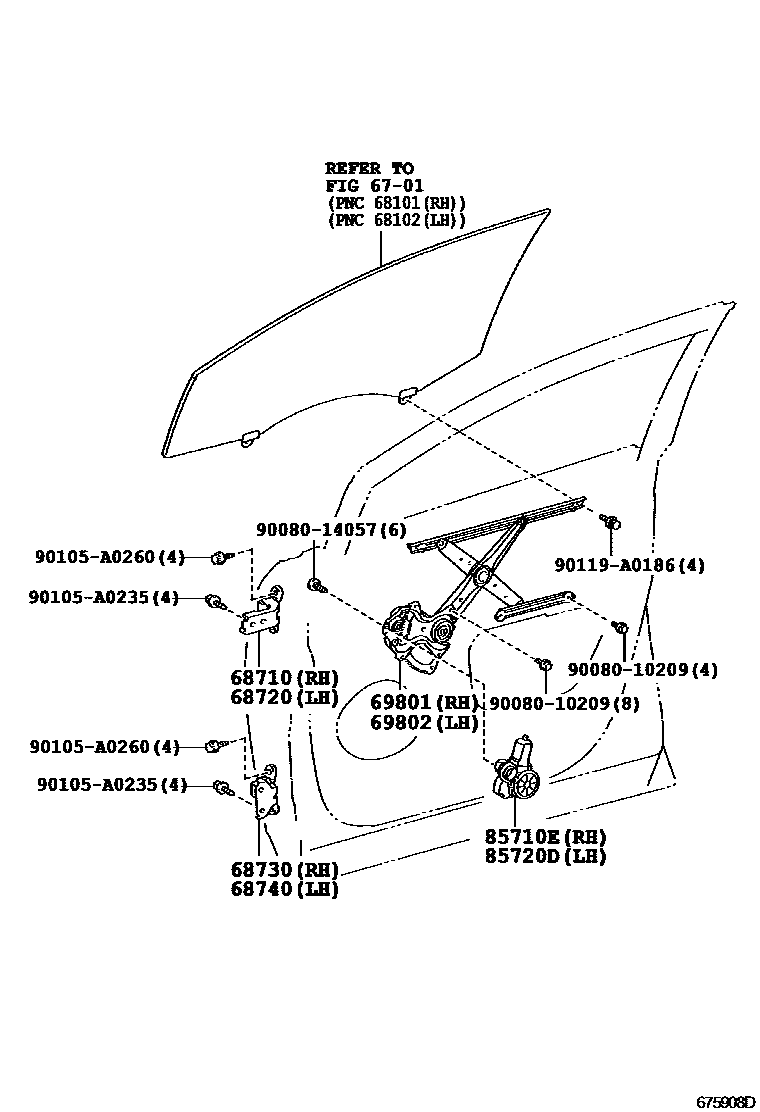

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iAGV1#,GGV1#200811-201205

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iAGV1#,GGV1#200811-201205

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iAGV1#,GGV1#200811-201205

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iAGV1#,GGV1#200811-201205

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0T010iAGV1#,GGV1#200811-201205

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0T010iAGV1#,GGV1#200811-201205

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E040iAGV1#,GGV1#201309

main85710-0T010iAGV1#,GGV1#200811-201109

sub85710-0T011

main85710-0T030iAGV1#,GGV1#201109-201308

sub85710-0E040

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0E060iAGV1#,GGV1#201309

main85720-0T010iAGV1#,GGV1#200811-201109

sub85720-02450

main85720-0T030iAGV1#,GGV1#201109-201308

sub85720-0E060

9008010209

main90080-10209

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90119A0186

main90119-A0186

14 parts on this diagram · 1 diagram in section
