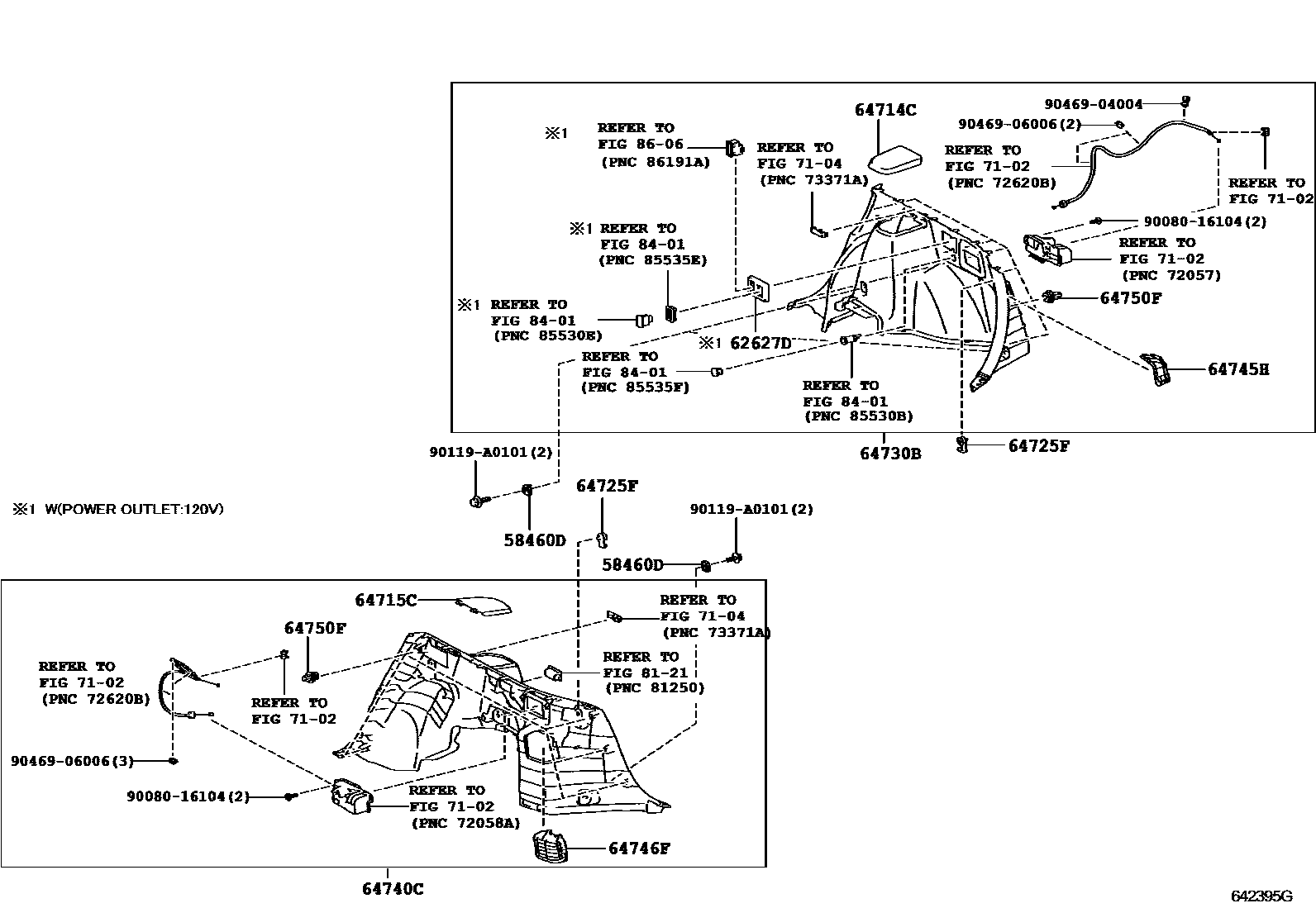

DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
62627DCOVER, SIDE TRIM, RH
64714CCOVER, DECK SIDE TRIM, RH
IVORY,TRIM0#
WITH,IVORY,TRIM0#
WITH,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64715CCOVER, DECK SIDE TRIM, LH
IVORY,TRIM0#
WITH,IVORY,TRIM0#
WITH,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
IVORY,TRIM0#
WITH,IVORY,TRIM0#
LT.GRAY,TRIM1#
WITH,LT.GRAY,TRIM1#
BLACK,TRIM2#
64730BPANEL ASSY, DECK TRIM SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64745HHOLDER, DECK SIDE TRIM CUP, RH
WITH,IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#
WITH,LT.GRAY,TRIM1#
BLACK,TRIM2#
64746FHOLDER, DECK SIDE TRIM CUP, LH
IVORY,TRIM0#
WITH,IVORY,TRIM0#
WITH,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
WITH
7102
7104
8121
8401
8606
9008016104
main90080-16104
90119A0101
main90119-A0101
9046904004
main90469-04004
9046906006
main90469-06006
19 parts on this diagram · 2 diagrams in section
