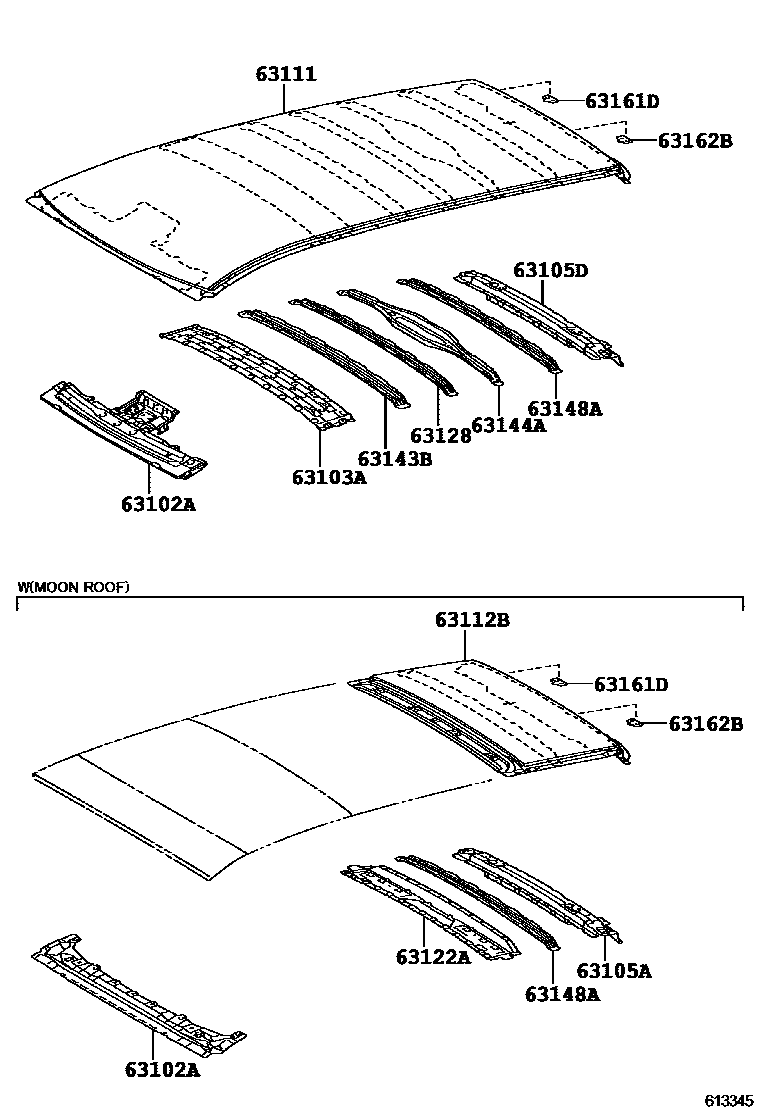

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0T900iAGV1#,GGV1#200811-201205

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0T010iAGV1#,GGV1#200811-201205

63105AFRAME SUB-ASSY, BACK DOOR OPENING

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0T010iAGV1#,GGV1#200811-201407

sub63105-0T011

main63105-0T011iAGV1#,GGV1#201408

63111PANEL, ROOF

main63111-0T010iAGV1#,GGV1#200811-201205

63112BPANEL, ROOF, REAR

63122AREINFORCEMENT, ROOF PANEL, FRONT

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-0T010iAGV1#,GGV1#200811-201205

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0T010iAGV1#,GGV1#200811-201205

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0T010iAGV1#,GGV1#200811-201205

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0T010iAGV1#,GGV1#200811-201205

63161DPLATE, ROOF HEADER PANEL, NO.1

main63161-01010iAGV1#,GGV1#200811-201205

63162BPLATE, ROOF HEADER PANEL, NO.2

main63162-01010iAGV1#,GGV1#200811-201205

13 parts on this diagram · 2 diagrams in section
