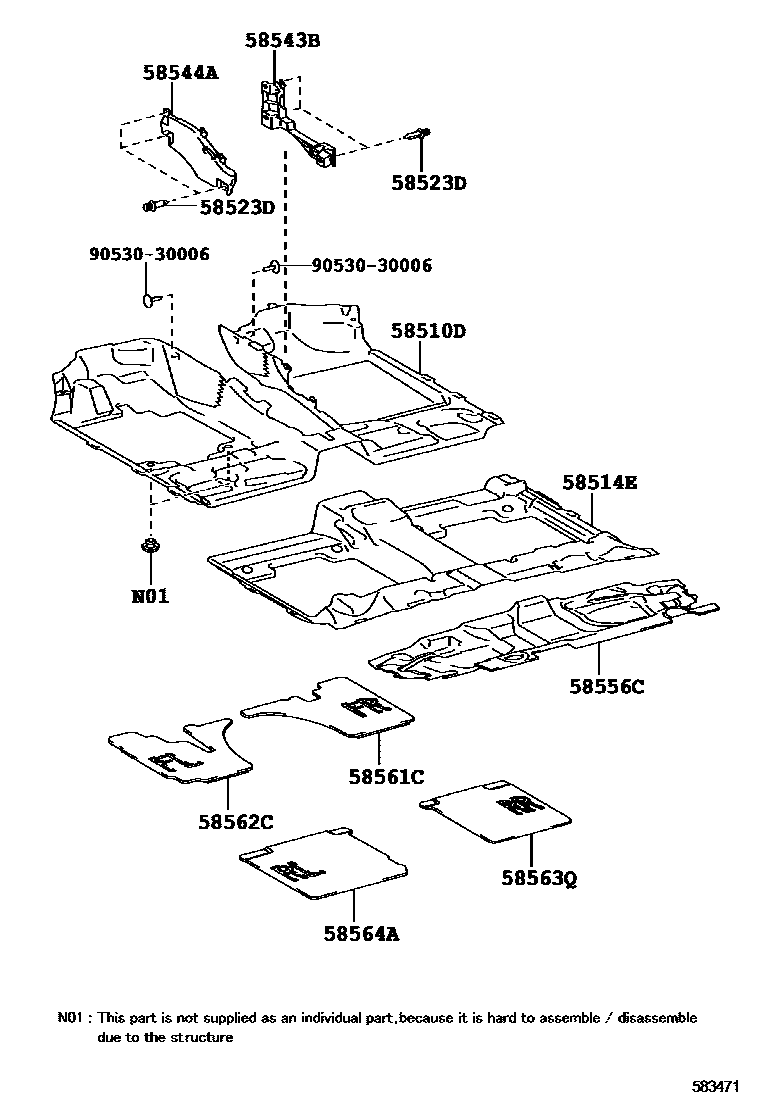

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
58514ECARPET, FLOOR, REAR
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
BLACK
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
9053030006
11 parts on this diagram · 2 diagrams in section
