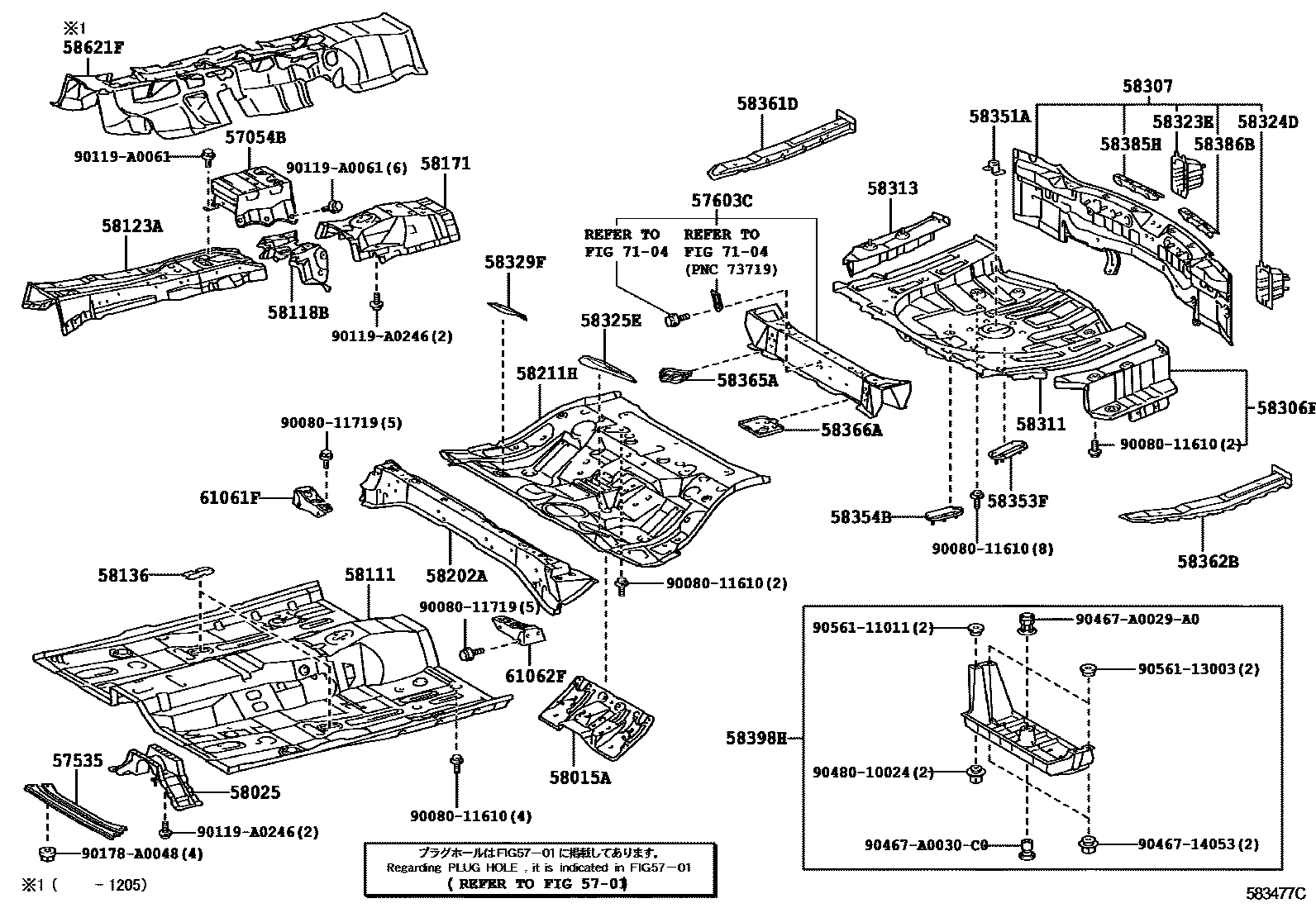

FLOOR PAN & LOWER BACK PANEL
5701
57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4
57603CGUSSET SUB-ASSY, REAR FLOOR CROSSMEMBER
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58025REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58111PAN, FRONT FLOOR
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58351ABRACKET, SPARE WHEEL CARRIER
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58365ABRACKET, FUEL TANK SUPPORT, RH
58366ABRACKET, FUEL TANK SUPPORT, LH
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58398HCOVER, FLOOR UNDER, NO.1
WITH
58621FSILENCER, CENTER CONSOLE, NO.1
61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1
61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2
7104
9008011610
main90080-11610
9008011719
main90080-11719
90119A0061
main90119-A0061
90119A0246
main90119-A0246
90178A0048
main90178-A0048
9046714053
main90467-14053
90467A0029A0
main90467-A0029A0
90467A0030C0
main90467-A0030C0
9048010024
main90480-10024
9056111011
main90561-11011
9056113003
main90561-13003
46 parts on this diagram · 1 diagram in section
