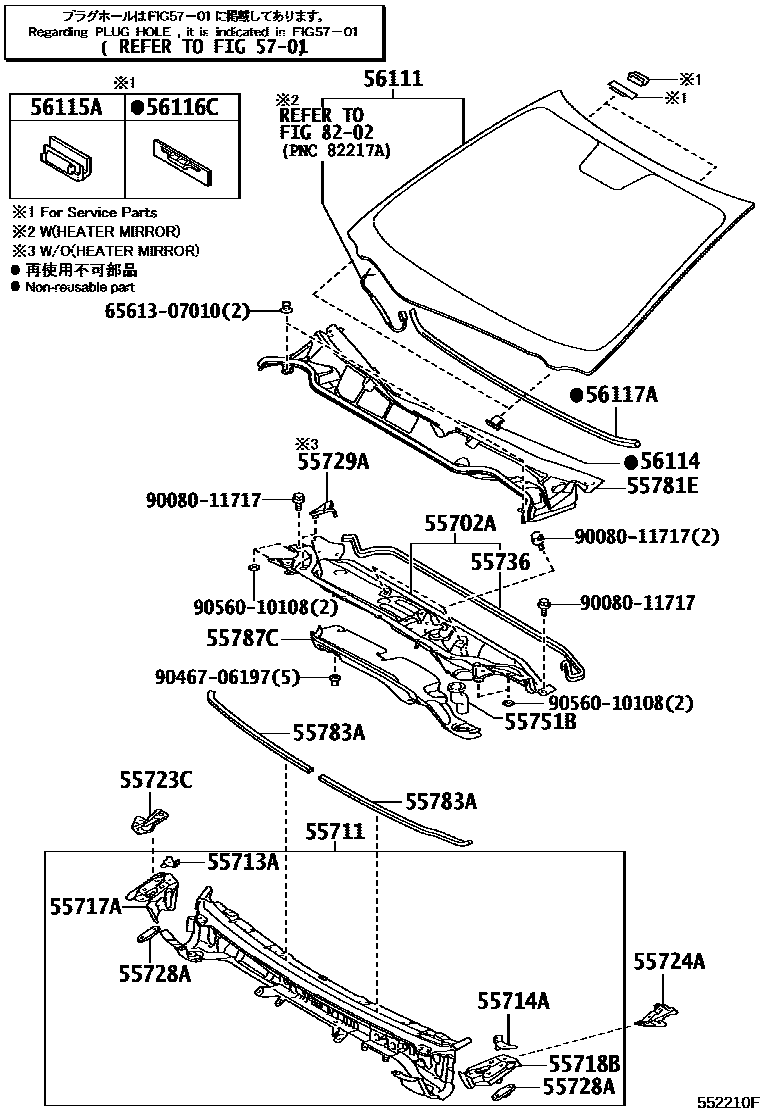

COWL PANEL & WINDSHIELD GLASS
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55723CREINFORCEMENT, COWL TOP SIDE, RH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55728AREINFORCEMENT, HOOD STOPPER
55729ACOVER, COWL PANEL HOLE
55736SEAL, WATER GUARD PLATE
55751BHOSE, COWL WATER EXTRACT, NO.1
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
56111GLASS, WINDSHIELD
*HSEAL,T=4.76,GREEN
*HSEAL,T=4.76,GREEN
*EHHSEAL,T=4.76GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1569
*D,L=1569,CORE PACKAGE&MOON ROOF-WITH
*D,L=1569,CORE PACKAGE&MOON ROOF-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
*D,L=1569,CORE PACKAGE&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
*D,L=1569,MOON ROOF-WITH
5701
8202
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
9008011717
main90080-11717
9046706197
main90467-06197
9056010108
main90560-10108
26 parts on this diagram · 1 diagram in section
