FLOOR SIDE MEMBER
51967EHOOK, TRANSPORT, REAR RH
5701
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57113EXTENSION, FRONT SIDE MEMBER, RH
sub57107-33031
57114EXTENSION, FRONT SIDE MEMBER, LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57167EGUSSET, FRONT CROSSMEMBER SIDE, RH
57168EGUSSET, FRONT CROSSMEMBER SIDE, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57451BMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57513AREINFORCEMENT, FRONT FLOOR, LH
57535ABRACE, FRONT FLOOR, RH
WITH
57536ABRACE, FRONT FLOOR, LH
WITH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57653AMEMBER, REAR FLOOR CROSS, NO.2
90119A0309
main90119-A0309
90178A0044
main90178-A0044
91672L1035
main91672-L1035

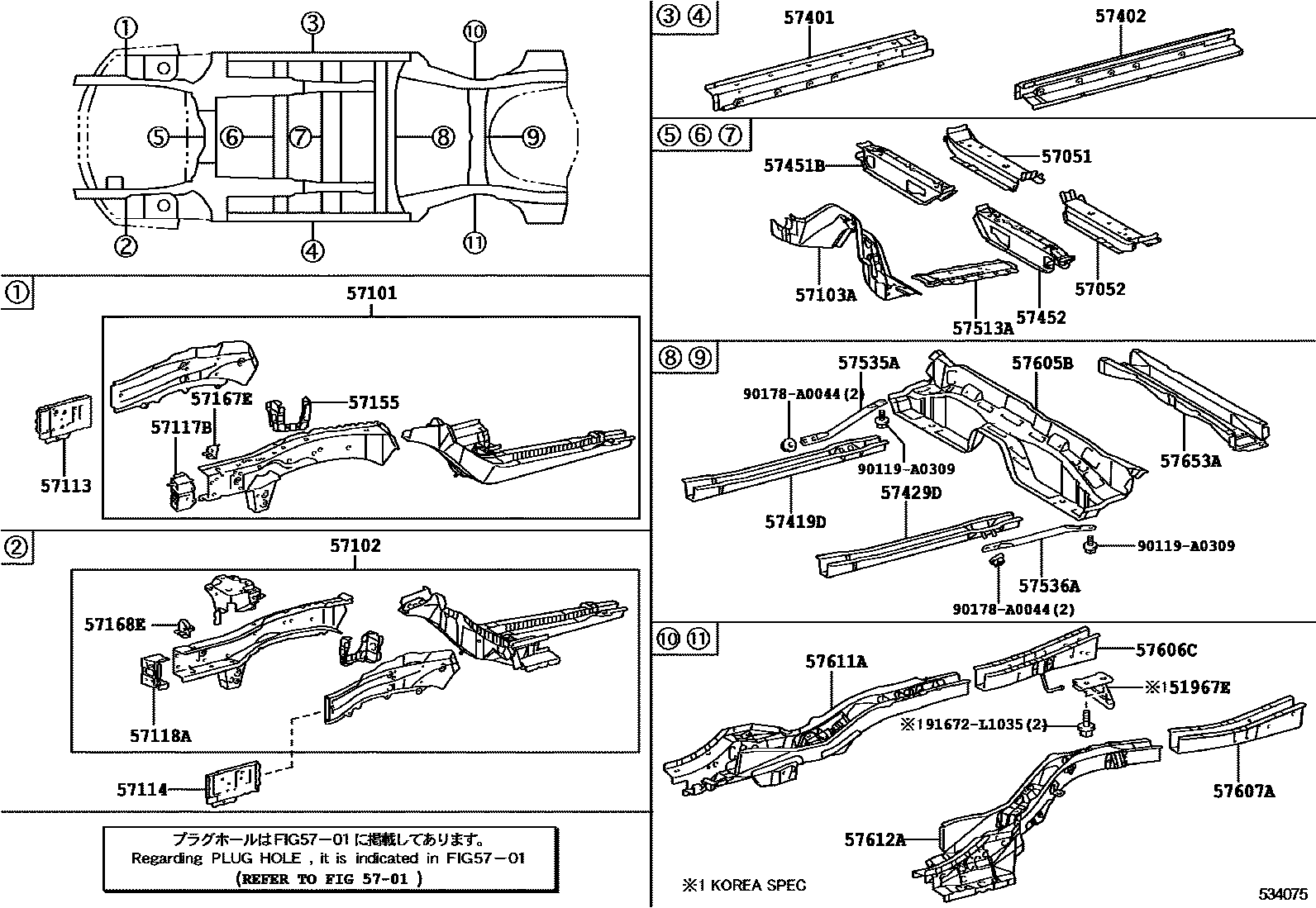

32 parts on this diagram · 1 diagram in section
