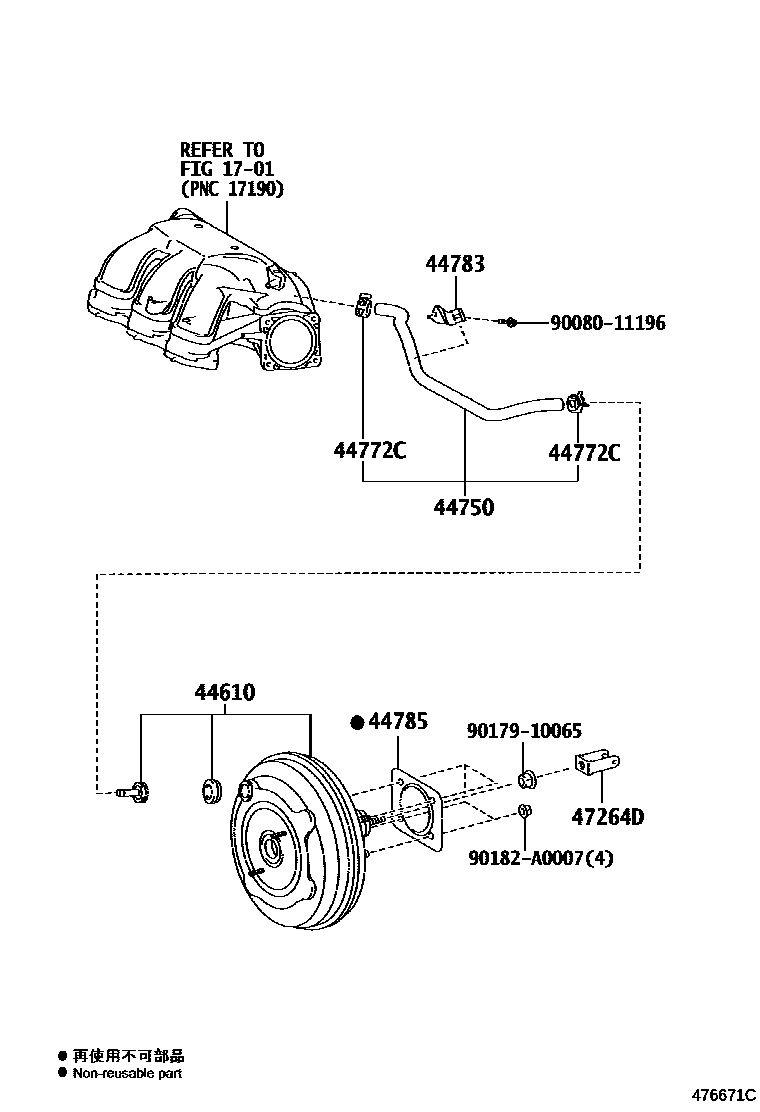

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0T010iAGV1#,GGV1#200811-201205

main44610-0T020iAGV1#,GGV1#201205

44750HOSE ASSY, VACUUM

main44750-0T010iGGV1#200811-201205

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90466-A0003iAGV1#200901-201205

main96133-41500iGGV1#200811-201205

44783CLAMP, VACUUM HOSE

main44783-0T010iGGV1#200811-201205

44785GASKET, BRAKE BOOSTER

main44785-07010iAGV1#,GGV1#200811-201205

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-48020iAGV1#,GGV1#200811-201205

9008011196

main90080-11196

9017910065

main90179-10065

90182A0007

main90182-A0007

10 parts on this diagram · 2 diagrams in section
