EPC Data

FRONT AXLE HOUSING & DIFFERENTIAL

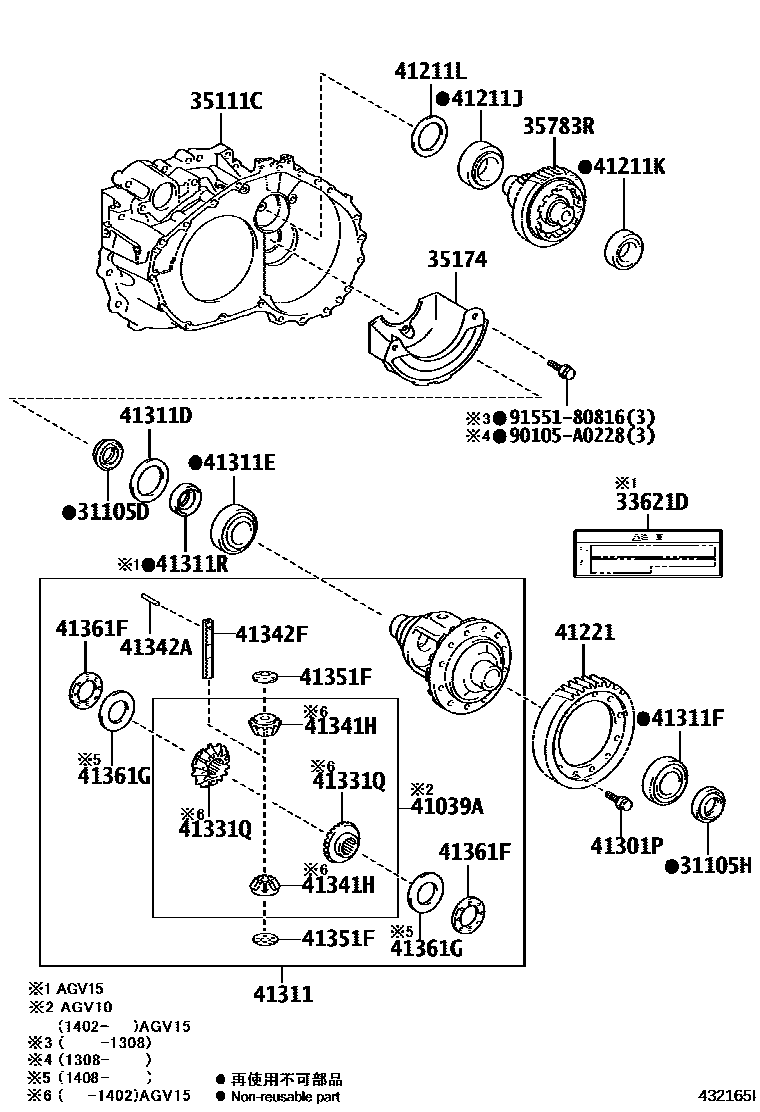

Parts diagram
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
main90311-40029i200901-201212
sub90311-40038
main90311-40038i201212-201308
main90311-55005i200811-201205
main90311-A0012i200811-201402
sub90311-A0029
main90311-A0012i201402-201403
(L)
sub90311-A0029
main90311-A0029i201403
(J)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
main90311-50033i200901-201106
sub90311-50045
main90311-50045i201106-201308
sub90311-50064
main90311-50045i201308
(J)
sub90311-50064
main90311-A0011i200811-201206
sub90311-A0021
main90311-A0021i201308
(L)
main90311-A0021i201206
33621DLABEL, TRANSAXLE OIL INFORMATION
main33621-12150i200901-201309
main33621-28021i200901-201205
35111CHOUSING, TRANSAXLE
main35105-07022i200811-201001
sub35105-08020
main35105-08020i201001-201510
sub35105-33012
main35105-08021i201510
sub35105-33012
main35105-08030i201011-201510
sub35105-28062
main35105-08031i201510
sub35105-28062
main35105-0R010i201308-201512
sub35105-06060
main35105-0R011i201512
sub35105-06060
main35105-0R020i201308
sub35105-0R030
main35105-0T010i200811-201009
main35105-73030i200901-201308
sub35105-73031
main35105-73040i200901-201308
sub35105-42050
sub90341-14015
sub90430-14008
35174SEPARATOR, TRANSAXLE HOUSING OIL
main35174-73010i200901-201205
main35174-73020i200901-201205
35783RGEAR, COUNTER DRIVEN
main35705-0T010i201308
sub35705-48030
main35705-73010i200811-201205
main35705-73020i200901-201308
sub35705-73030
41039AGEAR KIT, DIFFERENTIAL
main41039-28020i200901-201403
sub41039-28030
main41039-33080i201403
sub41039-28030
main41039-48040i201402
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
main90366-35145i200901-201009
sub90366-35167
main90366-35167i201009-201308
main90366-A0032i200811-201205
main90366-A0050i201308
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
main90366-32031i200901-201009
sub90366-32034
main90366-32034i201009-201308
main90366-A0026i200811-201003
sub90366-A0038
main90366-A0038i201003-201205
main90366-A0047i201308
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
main90564-61022i200901-201308
T=2.000
main90564-61023i200901-201308
T=2.025
main90564-61024i200901-201308
T=2.050
main90564-61025i200901-201308
T=2.075
main90564-61026i200901-201308
T=2.100
main90564-61027i200901-201308
T=2.125
main90564-61028i200901-201308
T=2.150
main90564-61029i200901-201308
T=2.175
main90564-61030i200901-201308
T=2.200
main90564-61031i200901-201308
T=2.225
main90564-61032i200901-201308
T=2.250
main90564-61033i200901-201308
T=2.275
main90564-61034i200901-201308
T=2.300
main90564-61035i200901-201308
T=2.325
main90564-61036i200901-201308
T=2.350
main90564-61037i200901-201308
T=2.375
main90564-61038i200901-201308
T=2.400
main90564-61039i200901-201308
T=2.425
main90564-61040i200901-201308
T=2.450
main90564-61041i200901-201308
T=2.475
main90564-61042i200901-201308
T=2.500
main90564-61043i200901-201308
T=2.525
main90564-61044i200901-201308
T=2.550
main90564-61045i200901-201308
T=2.575
main90564-61046i200901-201308
T=2.600
main90564-61047i200901-201308
T=2.625
main90564-61048i200901-201308
T=2.650
main90564-61049i200901-201308
T=2.675
main90564-61050i200901-201308
T=2.700
main90564-61051i200901-201308
T=2.725
main90564-61052i200901-201308
T=2.750
main90564-61053i200901-201308
T=2.775
main90564-61054i200901-201308
T=2.800
main90564-61055i200901-201308
T=2.825
main90564-61056i200901-201308
T=2.850
main90564-61057i200901-201308
T=2.875
main90564-61058i200901-201308
T=2.900
main90564-61059i200901-201308
T=2.925
main90564-61060i200901-201308
T=2.950
main90564-61061i200901-201308
T=2.975
main90564-61062i200901-201308
T=3.000
main90564-A0142i200811-201205
T=2.000
main90564-A0143i200811-201205
T=2.025
main90564-A0144i200811-201205
T=2.050
main90564-A0145i200811-201205
T=2.075
main90564-A0146i200811-201205
T=2.100
main90564-A0147i200811-201205
T=2.125
main90564-A0148i200811-201205
T=2.150
main90564-A0149i200811-201205
T=2.175
main90564-A0150i200811-201205
T=2.200
main90564-A0151i200811-201205
T=2.225
main90564-A0152i200811-201205
T=2.250
main90564-A0153i200811-201205
T=2.275
main90564-A0154i200811-201205
T=2.300
main90564-A0155i200811-201205
T=2.325
main90564-A0156i200811-201205
T=2.350
main90564-A0157i200811-201205
T=2.375
main90564-A0158i200811-201205
T=2.400
main90564-A0159i200811-201205
T=2.425
main90564-A0160i200811-201205
T=2.450
main90564-A0161i200811-201205
T=2.475
main90564-A0162i200811-201205
T=2.500
main90564-A0163i200811-201205
T=2.525
main90564-A0164i200811-201205
T=2.550
main90564-A0165i200811-201205
T=2.575
main90564-A0166i200811-201205
T=2.600
main90564-A0167i200811-201205
T=2.625
main90564-A0168i200811-201205
T=2.650
main90564-A0169i200811-201205
T=2.675
main90564-A0170i200811-201205
T=2.700
main90564-A0171i200811-201205
T=2.725
main90564-A0172i200811-201205
T=2.750
main90564-A0173i200811-201205
T=2.775
main90564-A0174i200811-201205
T=2.800
main90564-A0175i200811-201205
T=2.825
main90564-A0176i200811-201205
T=2.850
main90564-A0177i200811-201205
T=2.875
main90564-A0178i200811-201205
T=2.900
main90564-A0179i200811-201205
T=2.925
main90564-A0180i200811-201205
T=2.950
main90564-A0181i200811-201205
T=2.975
main90564-A0182i200811-201205
T=3.000
main90564-A0219i201308
T=2.000
main90564-A0220i201308
T=2.025
main90564-A0221i201308
T=2.050
main90564-A0222i201308
T=2.075
main90564-A0223i201308
T=2.100
main90564-A0224i201308
T=2.125
main90564-A0225i201308
T=2.150
main90564-A0226i201308
T=2.175
main90564-A0227i201308
T=2.200
main90564-A0228i201308
T=2.225
main90564-A0229i201308
T=2.250
main90564-A0230i201308
T=2.275
main90564-A0231i201308
T=2.300
main90564-A0232i201308
T=2.325
main90564-A0233i201308
T=2.350
main90564-A0234i201308
T=2.375
main90564-A0235i201308
T=2.400
main90564-A0236i201308
T=2.425
main90564-A0237i201308
T=2.450
main90564-A0238i201308
T=2.475
main90564-A0239i201308
T=2.500
main90564-A0240i201308
T=2.525
main90564-A0241i201308
T=2.550
main90564-A0242i201308
T=2.575
main90564-A0243i201308
T=2.600
main90564-A0244i201308
T=2.625
main90564-A0245i201308
T=2.650
main90564-A0246i201308
T=2.675
main90564-A0247i201308
T=2.700
main90564-A0248i201308
T=2.725
main90564-A0249i201308
T=2.750
main90564-A0250i201308
T=2.775
main90564-A0251i201308
T=2.800
main90564-A0252i201308
T=2.825
main90564-A0253i201308
T=2.850
main90564-A0254i201308
T=2.875
main90564-A0255i201308
T=2.900
main90564-A0256i201308
T=2.925
main90564-A0257i201308
T=2.950
main90564-A0258i201308
T=2.975
main90564-A0259i201308
T=3.000
41221GEAR, FRONT DIFFERENTIAL RING
main41221-0T010i201308
sub41221-48130
main41221-73010i200811-201205
sub41221-73050
main41221-73020i200901-201308
sub41221-73040
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
main90080-10239i200811-201205
main90105-12303i200901-201308
41311CASE, FRONT DIFFERENTIAL
main41301-07030i200811-201408
sub41301-07031
main41301-07031i201408
sub41301-48120
main41301-0R010i201308-201408
sub41301-0R011
main41301-0R011i201408
sub41301-06011
main41301-0R020i201308-201408
sub41301-0R021
main41301-0R021i201408-201502
sub41301-0T012
main41301-0T011i200811-201408
sub41301-0T012
main41301-0T012i201408
main41301-48090i200901-201308
sub41301-48130
main41301-73010i200901-201308
sub41301-73011
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
main90564-69001i200901-201308
T=2.000
main90564-69002i200901-201308
T=2.025
main90564-69003i200901-201308
T=2.050
main90564-69004i200901-201308
T=2.075
main90564-69005i200901-201308
T=2.100
main90564-69006i200901-201308
T=2.125
main90564-69007i200901-201308
T=2.150
main90564-69008i200901-201308
T=2.175
main90564-69009i200901-201308
T=2.200
main90564-69010i200901-201308
T=2.225
main90564-69011i200901-201308
T=2.250
main90564-69012i200901-201308
T=2.275
main90564-69013i200901-201308
T=2.300
main90564-69014i200901-201308
T=2.325
main90564-69015i200901-201308
T=2.350
main90564-69016i200901-201308
T=2.375
main90564-69017i200901-201308
T=2.400
main90564-69020i200901-201308
T=2.425
main90564-69021i200901-201308
T=2.450
main90564-69022i200901-201308
T=2.475
main90564-69023i200901-201308
T=2.500
main90564-69024i200901-201308
T=2.525
main90564-69025i200901-201308
T=2.550
main90564-69026i200901-201308
T=2.575
main90564-69027i200901-201308
T=2.600
main90564-69028i200901-201308
T=2.625
main90564-69029i200901-201308
T=2.650
main90564-69030i200901-201308
T=2.675
main90564-69031i200901-201308
T=2.700
main90564-69032i200901-201308
T=2.725
main90564-69033i200901-201308
T=2.750
main90564-69034i200901-201308
T=2.775
main90564-69035i200901-201308
T=2.800
main90564-69036i200901-201308
T=2.825
main90564-69037i200901-201308
T=2.850
main90564-69038i200901-201308
T=2.875
main90564-82009i200901-201308
T=2.000
main90564-82010i200901-201308
T=2.025
main90564-82011i200901-201308
T=2.050
main90564-82012i200901-201308
T=2.075
main90564-82013i200901-201308
T=2.100
main90564-82014i200901-201308
T=2.125
main90564-82015i200901-201308
T=2.150
main90564-82016i200901-201308
T=2.175
main90564-82017i200901-201308
T=2.200
main90564-82018i200901-201308
T=2.225
main90564-82019i200901-201308
T=2.250
main90564-82020i200901-201308
T=2.275
main90564-82021i200901-201308
T=2.300
main90564-82022i200901-201308
T=2.325
main90564-82023i200901-201308
T=2.350
main90564-82024i200901-201308
T=2.375
main90564-82025i200901-201308
T=2.400
main90564-82026i200901-201308
T=2.425
main90564-82027i200901-201308
T=2.450
main90564-82028i200901-201308
T=2.475
main90564-82029i200901-201308
T=2.500
main90564-82030i200901-201308
T=2.525
main90564-82031i200901-201308
T=2.550
main90564-82032i200901-201308
T=2.575
main90564-82033i200901-201308
T=2.600
main90564-82034i200901-201308
T=2.625
main90564-82035i200901-201308
T=2.650
main90564-82036i200901-201308
T=2.675
main90564-82037i200901-201308
T=2.700
main90564-82038i200901-201308
T=2.725
main90564-82039i200901-201308
T=2.750
main90564-82040i200901-201308
T=2.775
main90564-82041i200901-201308
T=2.800
main90564-82042i200901-201308
T=2.825
main90564-82043i200901-201308
T=2.850
main90564-82044i200901-201308
T=2.875
main90564-A0106i200811-201205
T=2.000
main90564-A0107i200811-201205
T=2.025
main90564-A0108i200811-201205
T=2.050
main90564-A0109i200811-201205
T=2.075
main90564-A0110i200811-201205
T=2.100
main90564-A0111i200811-201205
T=2.125
main90564-A0112i200811-201205
T=2.150
main90564-A0113i200811-201205
T=2.175
main90564-A0114i200811-201205
T=2.200
main90564-A0115i200811-201205
T=2.225
main90564-A0116i200811-201205
T=2.250
main90564-A0117i200811-201205
T=2.275
main90564-A0118i200811-201205
T=2.300
main90564-A0119i200811-201205
T=2.325
main90564-A0120i200811-201205
T=2.350
main90564-A0121i200811-201205
T=2.375
main90564-A0122i200811-201205
T=2.400
main90564-A0123i200811-201205
T=2.425
main90564-A0124i200811-201205
T=2.450
main90564-A0125i200811-201205
T=2.475
main90564-A0126i200811-201205
T=2.500
main90564-A0127i200811-201205
T=2.525
main90564-A0128i200811-201205
T=2.550
main90564-A0129i200811-201205
T=2.575
main90564-A0130i200811-201205
T=2.600
main90564-A0131i200811-201205
T=2.625
main90564-A0132i200811-201205
T=2.650
main90564-A0133i200811-201205
T=2.675
main90564-A0134i200811-201205
T=2.700
main90564-A0135i200811-201205
T=2.725
main90564-A0136i200811-201205
T=2.750
main90564-A0137i200811-201205
T=2.775
main90564-A0138i200811-201205
T=2.800
main90564-A0139i200811-201205
T=2.825
main90564-A0140i200811-201205
T=2.850
main90564-A0141i200811-201205
T=2.875
main90564-A0183i200811-201205
T=2.000
main90564-A0184i200811-201205
T=2.025
main90564-A0185i200811-201205
T=2.050
main90564-A0186i200811-201205
T=2.075
main90564-A0187i200811-201205
T=2.100
main90564-A0188i200811-201205
T=2.125
main90564-A0189i200811-201205
T=2.150
main90564-A0190i200811-201205
T=2.175
main90564-A0191i200811-201205
T=2.200
main90564-A0192i200811-201205
T=2.225
main90564-A0193i200811-201205
T=2.250
main90564-A0194i200811-201205
T=2.275
main90564-A0195i200811-201205
T=2.300
main90564-A0196i200811-201205
T=2.325
main90564-A0197i200811-201205
T=2.350
main90564-A0198i200811-201205
T=2.375
main90564-A0199i200811-201205
T=2.400
main90564-A0200i200811-201205
T=2.425
main90564-A0201i200811-201205
T=2.450
main90564-A0202i200811-201205
T=2.475
main90564-A0203i200811-201205
T=2.500
main90564-A0204i200811-201205
T=2.525
main90564-A0205i200811-201205
T=2.550
main90564-A0206i200811-201205
T=2.575
main90564-A0207i200811-201205
T=2.600
main90564-A0208i200811-201205
T=2.625
main90564-A0209i200811-201205
T=2.650
main90564-A0210i200811-201205
T=2.675
main90564-A0211i200811-201205
T=2.700
main90564-A0212i200811-201205
T=2.725
main90564-A0213i200811-201205
T=2.750
main90564-A0214i200811-201205
T=2.775
main90564-A0215i200811-201205
T=2.800
main90564-A0216i200811-201205
T=2.825
main90564-A0217i200811-201205
T=2.850
main90564-A0218i200811-201205
T=2.875
main90564-A0260i201308
T=2.000
main90564-A0261i201308
T=2.025
main90564-A0262i201308
T=2.050
main90564-A0263i201308
T=2.075
main90564-A0264i201308
T=2.100
main90564-A0265i201308
T=2.125
main90564-A0266i201308
T=2.150
main90564-A0267i201308
T=2.175
main90564-A0268i201308
T=2.200
main90564-A0269i201308
T=2.225
main90564-A0270i201308
T=2.250
main90564-A0271i201308
T=2.275
main90564-A0272i201308
T=2.300
main90564-A0273i201308
T=2.325
main90564-A0274i201308
T=2.350
main90564-A0275i201308
T=2.375
main90564-A0276i201308
T=2.400
main90564-A0277i201308
T=2.425
main90564-A0278i201308
T=2.450
main90564-A0279i201308
T=2.475
main90564-A0280i201308
T=2.500
main90564-A0281i201308
T=2.525
main90564-A0282i201308
T=2.550
main90564-A0283i201308
T=2.575
main90564-A0284i201308
T=2.600
main90564-A0285i201308
T=2.625
main90564-A0286i201308
T=2.650
main90564-A0287i201308
T=2.675
main90564-A0288i201308
T=2.700
main90564-A0289i201308
T=2.725
main90564-A0290i201308
T=2.750
main90564-A0291i201308
T=2.775
main90564-A0292i201308
T=2.800
main90564-A0293i201308
T=2.825
main90564-A0294i201308
T=2.850
main90564-A0295i201308
T=2.875
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90080-36188i200811-201205
main90366-50118i200901-201308
main90366-62004i200901-201308
main90366-A0035i200811-201003
sub90366-A0041
main90366-A0041i201003-201205
main90366-A0056i201308
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-55071i200901-201205
main90366-A0029i200811-201003
sub90366-A0044
main90366-A0044i201003-201205
41311RSEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
main90316-34001i200811-201205
41331QGEAR, DIFFERENTIAL SIDE
main41331-33040i200811-201402
sub41039-48040
sub90208-45001
41341HPINION, DIFFERENTIAL
main41341-35050i200811-201402
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i200811-201205
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-33050i200811-201402
sub41342-33051
main41342-33051i201402
main41342-73010i200901-201403
sub41342-73011
main41342-73011i201403
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-33030i200811-201205
main41351-73010i200901-201205
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-06010i201411
T=1.50
main41361-06020i201411
T=1.55
main41361-06030i201411
T=1.60
main41361-06040i201411
T=1.65
main41361-06050i201411
T=1.70
main41361-06060i201411
T=1.75
main41361-06070i201411
T=1.80
main41361-06080i201411
T=1.85
main41361-06090i201411
T=1.90
main41361-0R010i201411
T=1.00
main41361-0R020i201411
T=1.10
main41361-0R030i201411
T=1.20
main41361-0R040i201411
T=0.90
main41361-33020i200811-201410
T=1.50
main41361-33030i200811-201410
T=1.55
main41361-33040i200811-201410
T=1.60
main41361-33050i200811-201410
T=1.65
main41361-33060i200811-201410
T=1.70
main41361-33070i200811-201410
T=1.75
main41361-33080i200811-201410
T=1.80
main41361-33090i200811-201410
T=1.85
main41361-33100i200811-201410
T=1.90
main41361-33110i201402-201408
T=2.60
main41361-33120i201402-201408
T=2.65
main41361-33130i201402-201408
T=2.70
main41361-33140i201402-201408
T=2.75
main41361-33150i201402-201408
T=2.80
main41361-33160i201402-201408
T=2.85
main41361-33170i201402-201408
T=2.90
main41361-33180i201402-201408
T=2.95
main41361-33190i201402-201408
T=3.00
main41361-73010i200901-201410
T=1.00
sub41361-33360
main41361-73020i200901-201410
T=1.10
sub41361-33380
main41361-73030i200901-201410
T=1.20
sub41361-33400
main41361-73040i200901-201109
T=1.30
sub41361-73050
main41361-73050i201109-201410
T=0.90
sub41361-33340
main41361-73070i201403-201408
T=1.90
main41361-73080i201403-201408
T=2.00
main41361-73090i201403-201408
T=2.10
main41361-73100i201403-201408
T=2.20
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
main90208-40003i201408
main90208-45001i201408
90105A0228
main90105-A0228
9155180816
main91551-80816

26 parts on this diagram · 2 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
