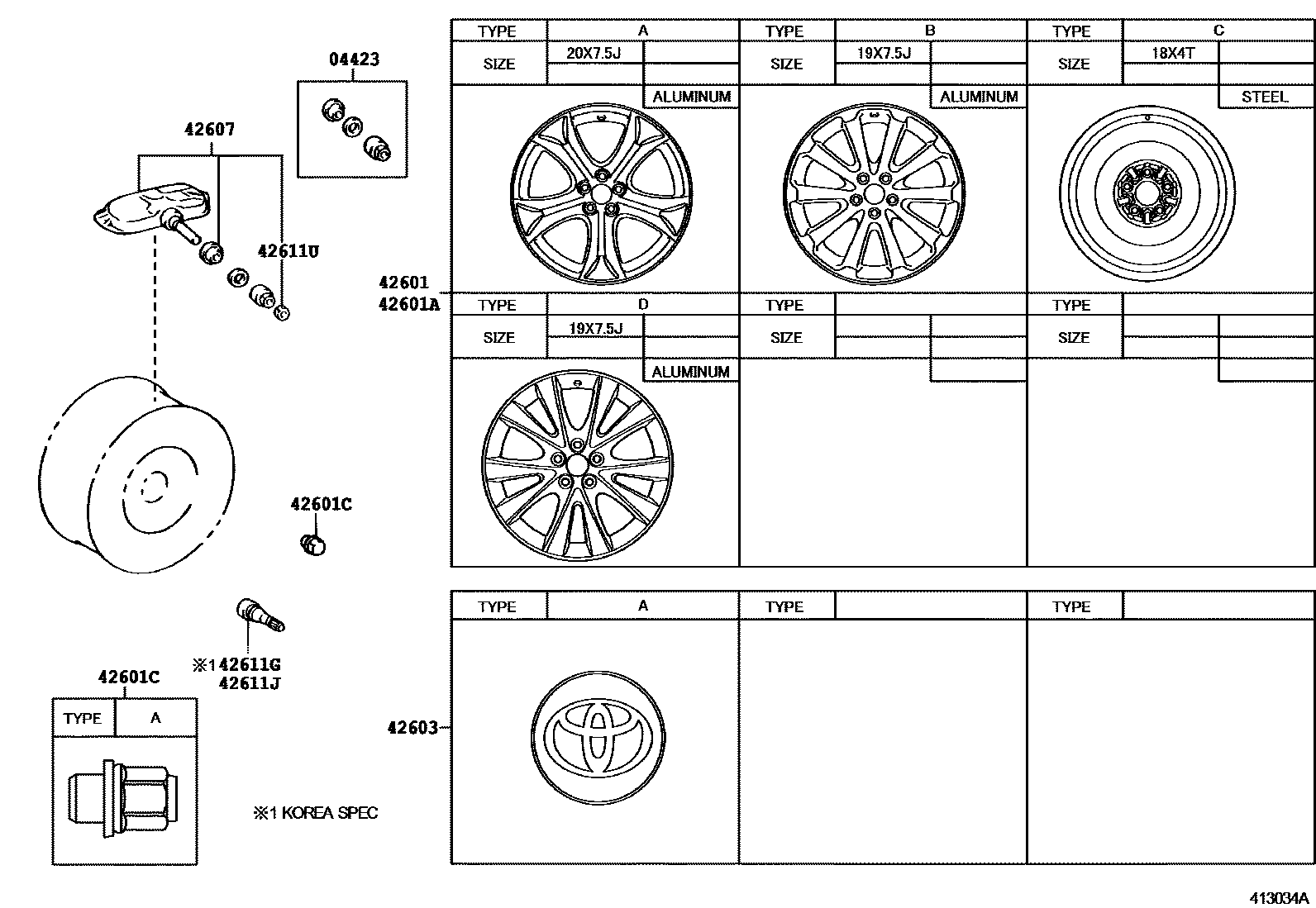

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iAGV1#,GGV1#200811-201205

42601WHEEL, DISC

main42611-0T020iAGV1#,GGV1#200811-200911

19X7.5J,#,TYPE B:REFER ILLUST.

main42611-0T021iAGV1#,GGV1#200911-201205

19X7.5J,#,TYPE B:REFER ILLUST.

main42611-0T040iAGV1#201205

19X7.5J,#,TYPE D:REFER ILLUST.

main4261A-0T020iGGV1#201205

20X7.5J,#,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0T030iAGV1#,GGV1#200811-201205

18X4T,TYPE C:REFER ILLUST.

sub42611-0T031

42601CNUT, HUB (FOR AXLE)

main90084-94001iAGV1#,GGV1#200811-201205

TYPE A:REFER ILLUST.

sub90942-A1009

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-08020iGGV1#201205

*ALU,TYPE A:REFER ILLUST.

main42603-08030iAGV1#201212

*ALU,TYPE A:REFER ILLUST.

main42603-12730iAGV1#201205-201211

TYPE A:REFER ILLUST.

main42603-AC040iAGV1#,GGV1#200811-201205

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-06011iAGV1#,GGV1#200811-201205

sub42607-06012

42611GVALVE (FOR TUBELESS TIRE)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iAGV1#,GGV1#200811-201205

42611UCAP, TIRE VALVE

main90942-A5002iAGV1#,GGV1#200811-201205

9 parts on this diagram · 1 diagram in section
