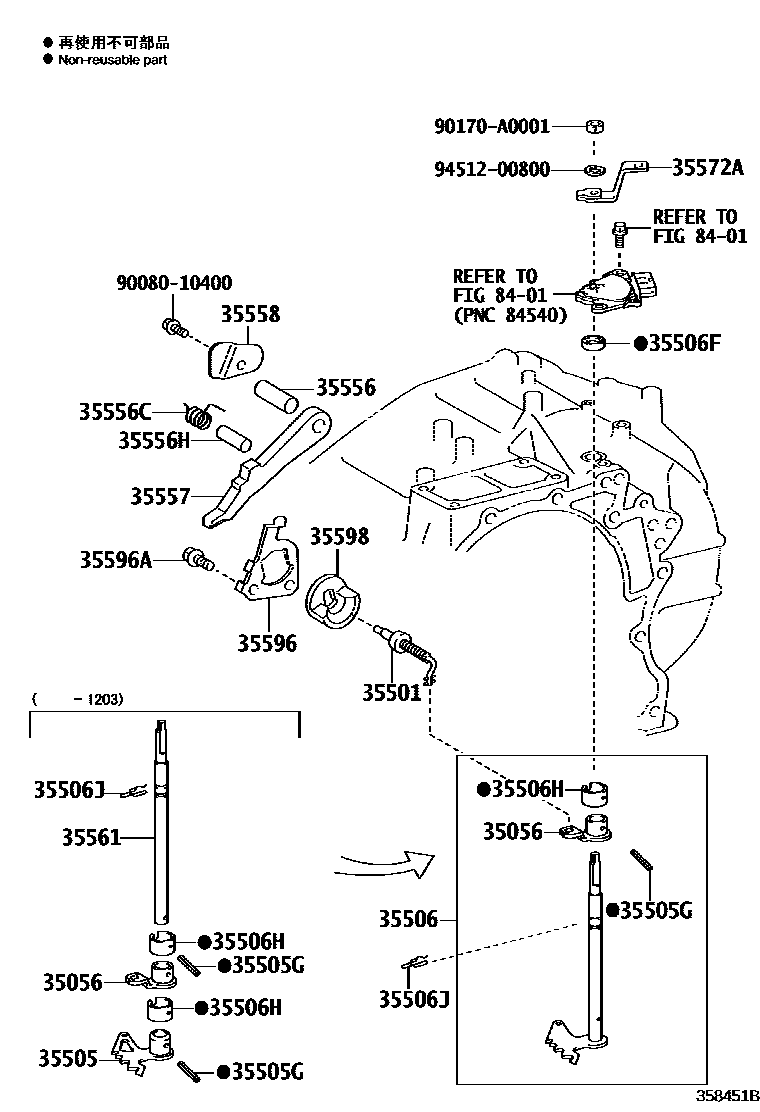

THROTTLE LINK & VALVE LEVER (ATM)
35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35501ROD SUB-ASSY, PARKING LOCK
35505LEVER SUB-ASSY, MANUAL VALVE
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
35556HSHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35561SHAFT, MANUAL VALVE LEVER
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5
*8-1.25PX16-13.5
8401
9008010400
90170A0001
main90170-A0001
9451200800
22 parts on this diagram · 2 diagrams in section
