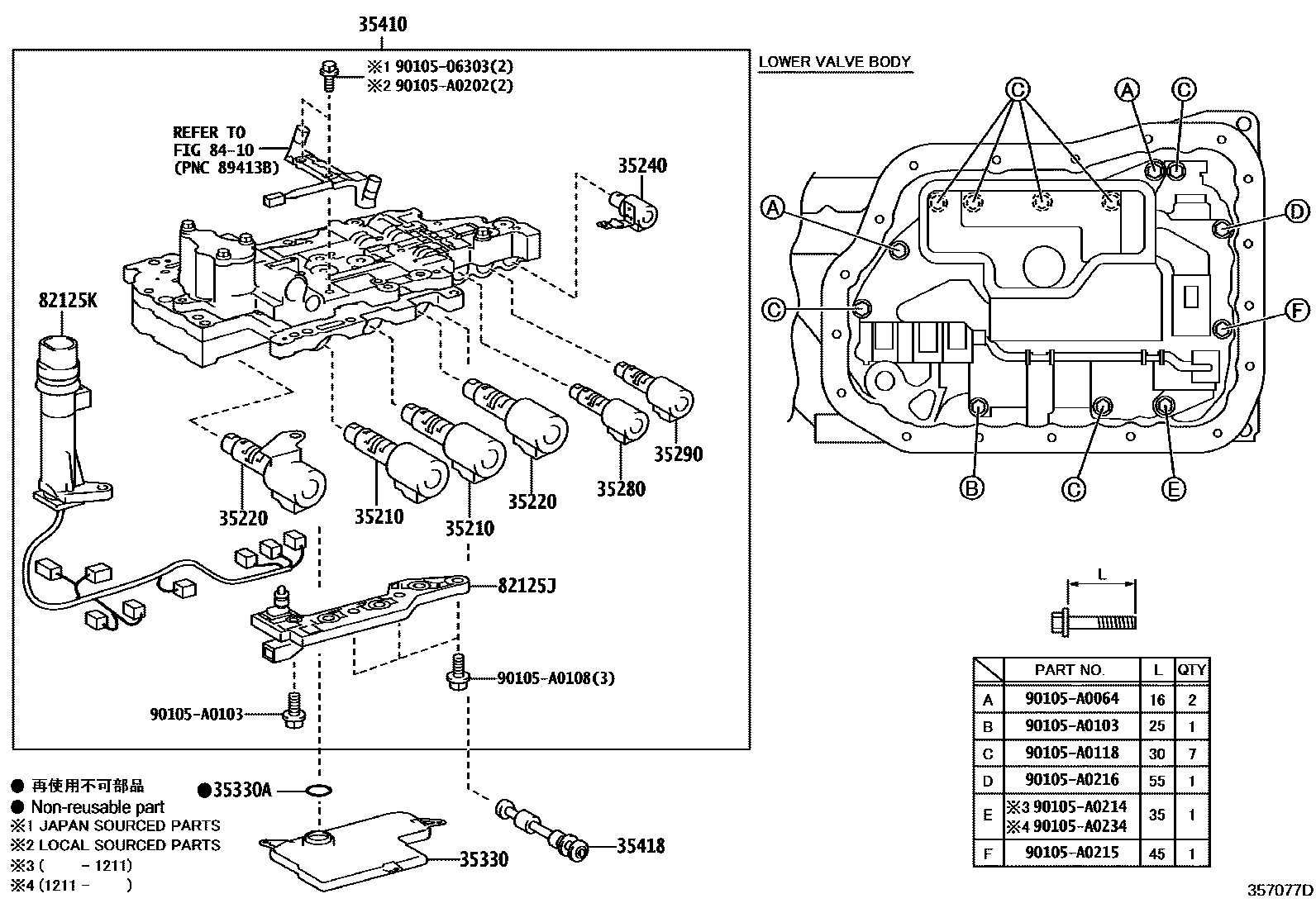

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E,U660F 0002 1U760E,U760F 0003 1U660E,U660F 0004 1U760E,U760F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iGGV1#200811-201205

main35210-73010iAGV1#200901-201409

sub35210-33030

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iGGV1#200811-201205

main35220-48020iAGV1#201410

main35220-73010iAGV1#200901-201409

sub35220-48020

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-33040iGGV1#200811-200901

sub35240-73010

main35240-73010iAGV1#,GGV1#200901-201205

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iAGV1#201106-201205

main35280-52040iAGV1#200811-201205

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iAGV1#,GGV1#200811-201205

35330STRAINER ASSY, VALVE BODY OIL

main35330-0R010iAGV1#201308

main35330-33050iGGV1#200811-201308

sub35330-48020

main35330-48020iGGV1#201308

main35330-73010iAGV1#200901-201308

35330ARING, O (FOR OIL STRAINER)

main90301-27010iAGV1#200901-201108

main90301-27015iAGV1#201108-201308

main90301-A0026iAGV1#200811-201205

35410BODY ASSY, TRANSMISSION VALVE

main35410-07010iGGV1#200811-201002

sub35410-33171

main35410-08020iGGV1#201002-201205

sub35410-33171

main35410-08021iGGV1#201205

sub35410-33240

main35410-0R010iAGV1#201308

sub35410-06020

main35410-33250iAGV1#201106-201308

sub35410-33260

main35410-73010iAGV1#200901-201106

sub35410-33250

35418VALVE, MANUAL

main35418-73010iAGV1#200811-201205

82125JWIRE, TRANSMISSION

main82125-33090iGGV1#200811-201203

sub82125-33091

main82125-33150iGGV1#201203-201612

sub82125-33151

main82125-73010iAGV1#200901-201612

sub82125-73011

82125KWIRE, TRANSMISSION

main82125-33100iGGV1#200811-201203

main82125-33160iGGV1#201203-201612

8410

9010506303

main90105-06303

90105A0064

main90105-A0064

90105A0103

main90105-A0103

90105A0108

main90105-A0108

90105A0118

main90105-A0118

90105A0202

main90105-A0202

90105A0214

main90105-A0214

90105A0215

main90105-A0215

90105A0216

main90105-A0216

90105A0234

main90105-A0234

22 parts on this diagram · 4 diagrams in section
