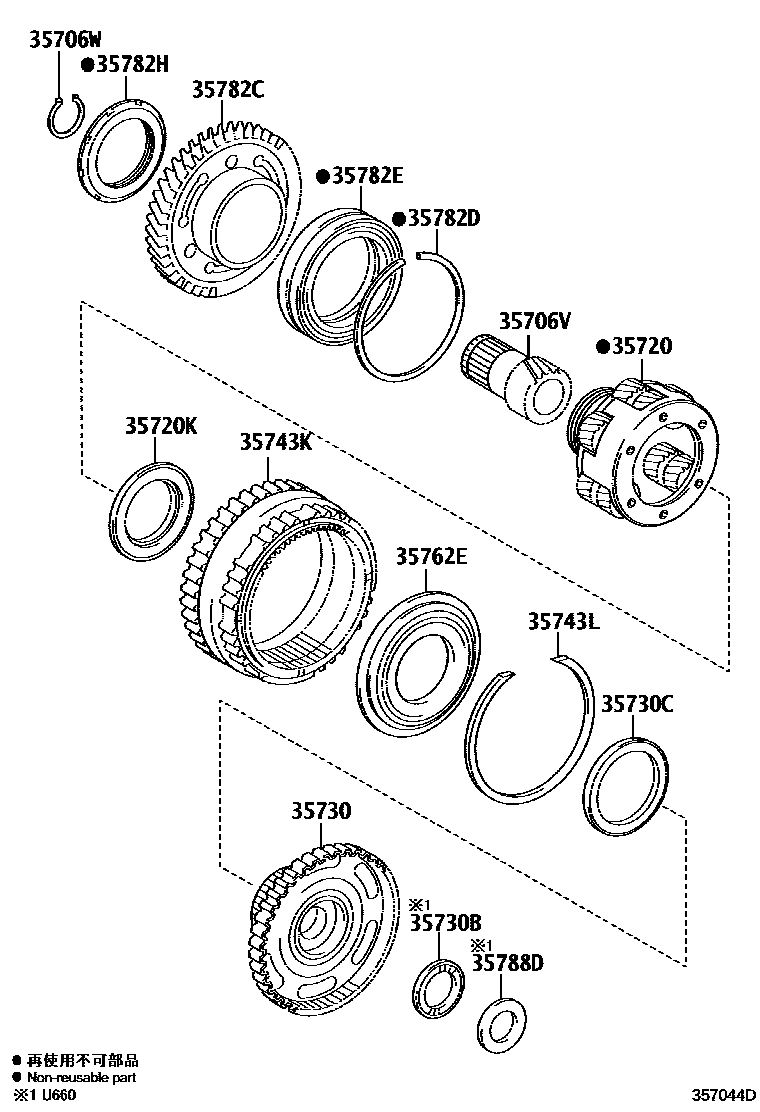

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-0R010iAGV1#201411

main35706-33020iGGV1#200811-201411

main35706-33020iGGV1#201411

(J)

main35706-73010iAGV1#200901-201411

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iAGV1#,GGV1#200811-201205

35720GEAR ASSY, FRONT PLANETARY

main35720-33061iGGV1#200811-200909

sub35720-33062

main35720-33062iGGV1#200909-201205

main35720-73010iAGV1#200901-201312

sub35720-73020

main35720-73020iAGV1#201401

sub35720-33070

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62004iAGV1#200901-201308

sub90374-62011

main90374-A0028iGGV1#200811-201205

main90374-A0035iAGV1#201308

35730GEAR ASSY, REAR PLANETARY SUN

main35730-06010iAGV1#201308

(L)

sub35730-33030

main35730-33021iGGV1#200811-201205

main35730-33030iAGV1#201308

(J)

main35730-73010iAGV1#200901-201308

sub35730-33030

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-A0030iGGV1#200811-201211

sub90374-A0042

main90374-A0042iGGV1#201211

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iAGV1#200901-201308

main90374-A0029iAGV1#200811-201205

35743KGEAR, PLANETARY RING

main35743-33030iGGV1#200811-201205

main35743-73010iAGV1#200901-201205

sub35743-33040

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iAGV1#200901-201308

main90520-A0016iGGV1#200811-201205

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iGGV1#200811-200909

main35762-73010iAGV1#200901-201205

35782CGEAR, COUNTER DRIVE

main35782-0R010iAGV1#201308

sub35782-33040

main35782-33030iGGV1#200811-200908

sub35782-33031

main35782-33031iGGV1#200908-201205

main35782-73010iAGV1#200901-201308

sub35782-33040

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iAGV1#200901-201308

main90520-A0009iGGV1#200811-201408

main90520-A0042iAGV1#,GGV1#201408

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iAGV1#200901-201308

sub90369-72002

main90369-A0001iGGV1#200811-200903

sub90369-A0005

main90369-A0005iGGV1#200903-201407

sub90369-A0006

main90369-A0006iAGV1#,GGV1#201407

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iAGV1#,GGV1#200811-201411

main90179-A0017iAGV1#,GGV1#201411

35788DRACE, THRUST BEARING, NO.3

main35788-07010iGGV1#200811-201205

15 parts on this diagram · 1 diagram in section
