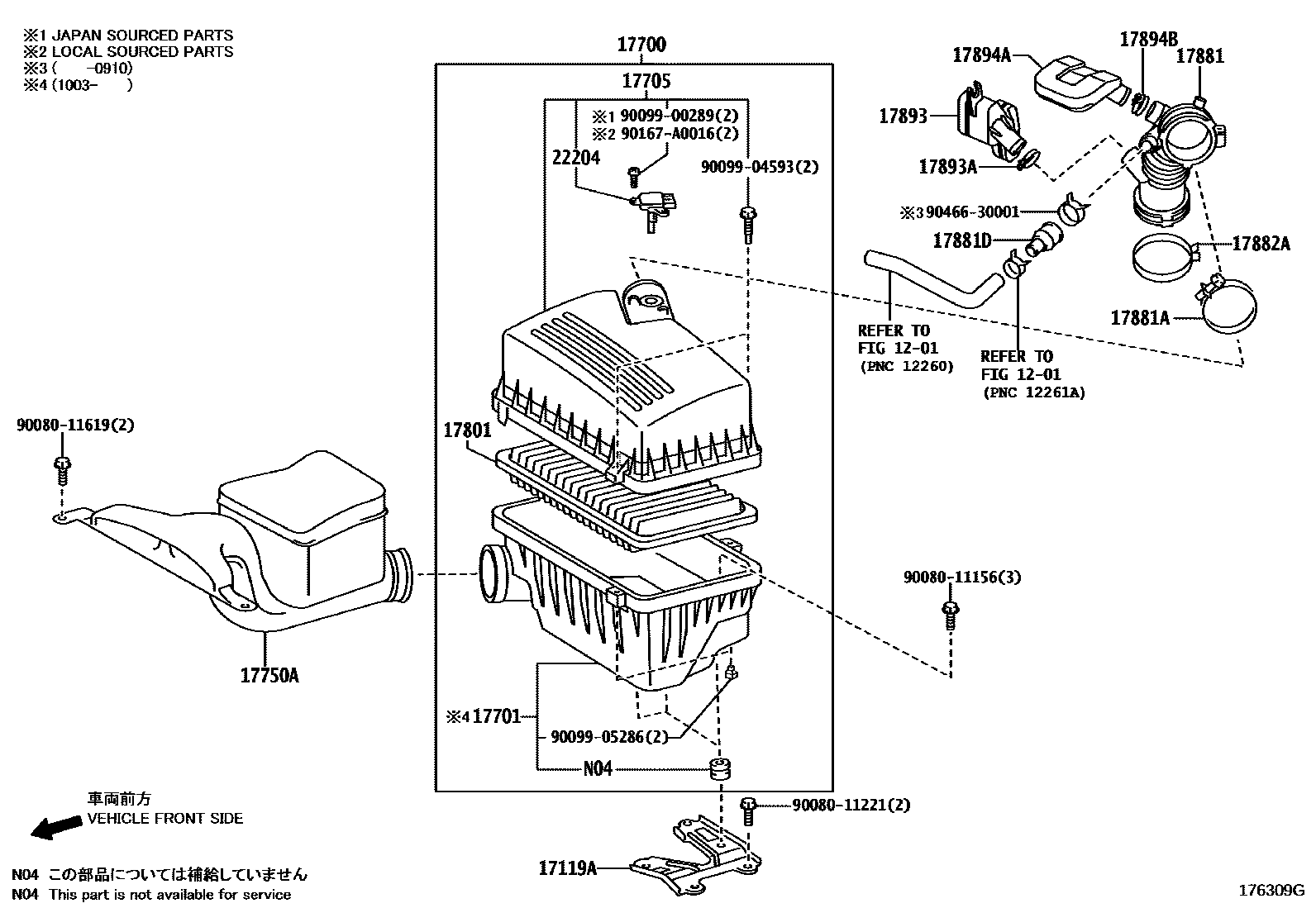

AIR CLEANER

0001 1 0002 1

1201

17119ABRACKET, AIR CLEANER

main17119-0H080i1ARFE..AGV1#200901-201205

main17119-0P050i2GRFE..GGV1#200811-201205

17700CLEANER ASSY, AIR

main17700-0H102i1ARFE..AGV1#200901-201002

sub17700-0H103

main17700-0H103i1ARFE..AGV1#201003-201205

main17700-AD015i2GRFE..GGV1#200811-201002

sub17700-AD016

main17700-AD016i2GRFE..GGV1#201003-201205

17701CASE SUB-ASSY, AIR CLEANER

main17701-0H080i1ARFE..AGV1#201003-201205

17705CAP SUB-ASSY, AIR CLEANER

main17705-0H102i1ARFE..AGV1#200901-201002

sub17705-0H103

main17705-0H103i1ARFE..AGV1#201003-201205

main17705-AD015i2GRFE..GGV1#200811-201002

sub17705-AD016

main17705-AD016i2GRFE..GGV1#201003-201205

17750AINLET ASSY, AIR CLEANER

main17750-0V010i1ARFE..AGV1#200901-201205

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H050i1ARFE..AGV1#200901-201205

(L)

main17801-28030i1ARFE..AGV1#200901-201205

(J)

main17801-AD010i2GRFE..GGV1#200811-201205

sub17801-31120

17881HOSE, AIR CLEANER, NO.1

main17881-0P070i2GRFE..GGV1#200811-201205

main17881-0V010i1ARFE..AGV1#200901-201205

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i1ARFE..AGV1#200901-201205

main96111-10900i2GRFE..GGV1#200811-201205

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main17878-0V010i1ARFE..AGV1#200912-201205

main90904-06008i1ARFE..AGV1#200901-200911

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-71001i1ARFE..AGV1#200901-200908

main96111-10850i1ARFE..AGV1#200909-201205

17893RESONATOR, INTAKE AIR

main17893-0V010i1ARFE..AGV1#200901-201205

17893ACLAMP, HOSE

main90466-A0019i1ARFE..AGV1#201206

main96111-10430i1ARFE..AGV1#200901-201206

17894ARESONATOR, INTAKE AIR, NO.2

main17894-0V010i1ARFE..AGV1#200901-201205

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10430i1ARFE..AGV1#200901-201205

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i2GRFE..GGV1#200811-201205

(L)

main22204-31020i1ARFE..AGV1#200811-201205

(J)

9008011156

main90080-11156

9008011221

main90080-11221

9008011619

main90080-11619

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

90167A0016

main90167-A0016

9046630001

main90466-30001

24 parts on this diagram · 2 diagrams in section
