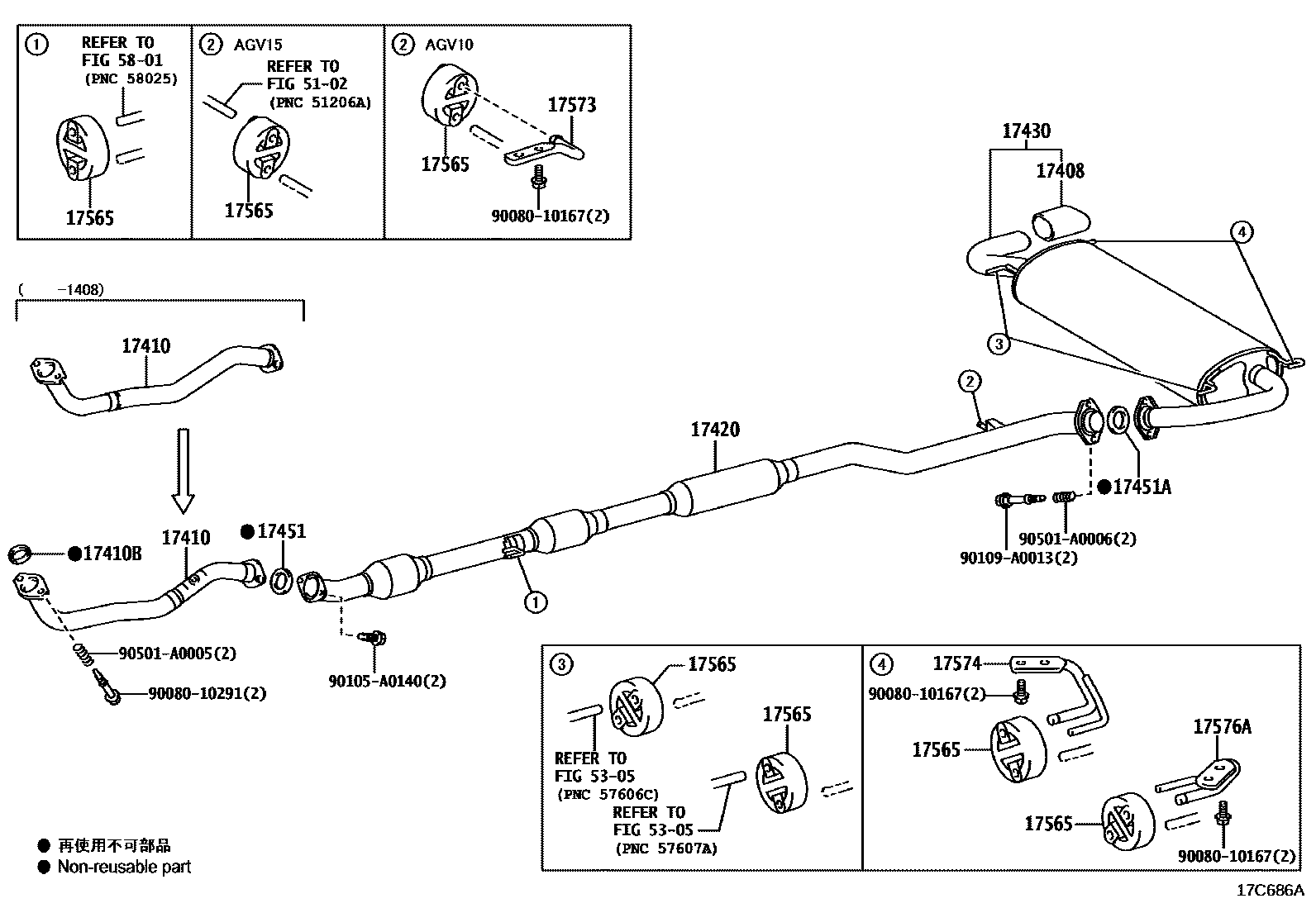

EXHAUST PIPE

0001 1 0002 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-0P010i1ARFE..AGV1#200901-201205

main17408-0P010i2GRFE..GGV1#200811-201205

NO.1

main17408-0P020i2GRFE..GGV1#200811-201205

NO.2

17410PIPE ASSY, EXHAUST, FRONT

main17410-0P310i2GRFE..GGV1#200811-201408

main17410-0P510i2GRFE..GGV1#201408

main17410-0V010i1ARFE..AGV1#200901-201408

main17410-0V380i1ARFE..AGV1#201408

17410BGASKET, EXHAUST PIPE

main17451-0V020i1ARFE..AGV1#200901-201205

sub17451-75011

main90080-43036i2GRFE..GGV1#200811-201205

17420PIPE ASSY, EXHAUST, CENTER

main17420-0P200i2GRFE..GGV15200811-201110

main17420-0P210i2GRFE..GGV10200811-201110

main17420-0P260i2GRFE..GGV15201110-201308

sub17420-0P261

main17420-0P261i2GRFE..GGV15201308

main17420-0P270i2GRFE..GGV10201110-201308

sub17420-0P271

main17420-0P271i2GRFE..GGV10201308

main17420-0V010i1ARFE..AGV15200901-201205

main17420-0V030i1ARFE..AGV10200901-201205

main17420-0V240i1ARFE..AGV15201205-201308

sub17420-0V241

main17420-0V241i1ARFE..AGV15201308

main17420-0V250i1ARFE..AGV10201205-201308

sub17420-0V251

main17420-0V251i1ARFE..AGV10201308

17430PIPE ASSY, EXHAUST, TAIL

main17430-0P170i2GRFE..GGV1#200811-201205

main17430-0V010i1ARFE..AGV1#200901-201205

sub17430-0V011

main17430-0V011i1ARFE..AGV1#201205-201308

sub17430-0V012

main17430-0V012i1ARFE..AGV1#201308

17451GASKET, EXHAUST PIPE

main17451-0D150i2GRFE..GGV1#200811-201205

NO.2

sub17451-0D140

main90917-06078i2GRFE..GGV1#200811-201205

NO.1

main90917-06078i1ARFE..AGV1#200901-201205

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0P021i1ARFE,2GRFE..AGV1#,GGV1#200811-201103

sub17451-0P022

main17451-0P022i1ARFE,2GRFE..AGV1#,GGV1#201104-201205

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P040i1ARFE,2GRFE..AGV1#,GGV1#200811-201103

sub17565-0P041

main17565-0P041i1ARFE,2GRFE..AGV1#,GGV1#201104-201205

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-0P080i1ARFE,2GRFE..AGV10,GGV10200811-201205

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-0P090i1ARFE..AGV1#200901-201001

sub17574-0P110

main17574-0P110i2GRFE..GGV1#200811-201205

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-0P070i1ARFE..AGV1#200901-201002

sub17576-0P100

main17576-0P100i2GRFE..GGV1#200811-201205

5102

5305

5801

9008010167

main90080-10167

9008010291

main90080-10291

90105A0140

main90105-A0140

90109A0013

main90109-A0013

90501A0005

main90501-A0005

90501A0006

main90501-A0006

20 parts on this diagram · 2 diagrams in section
