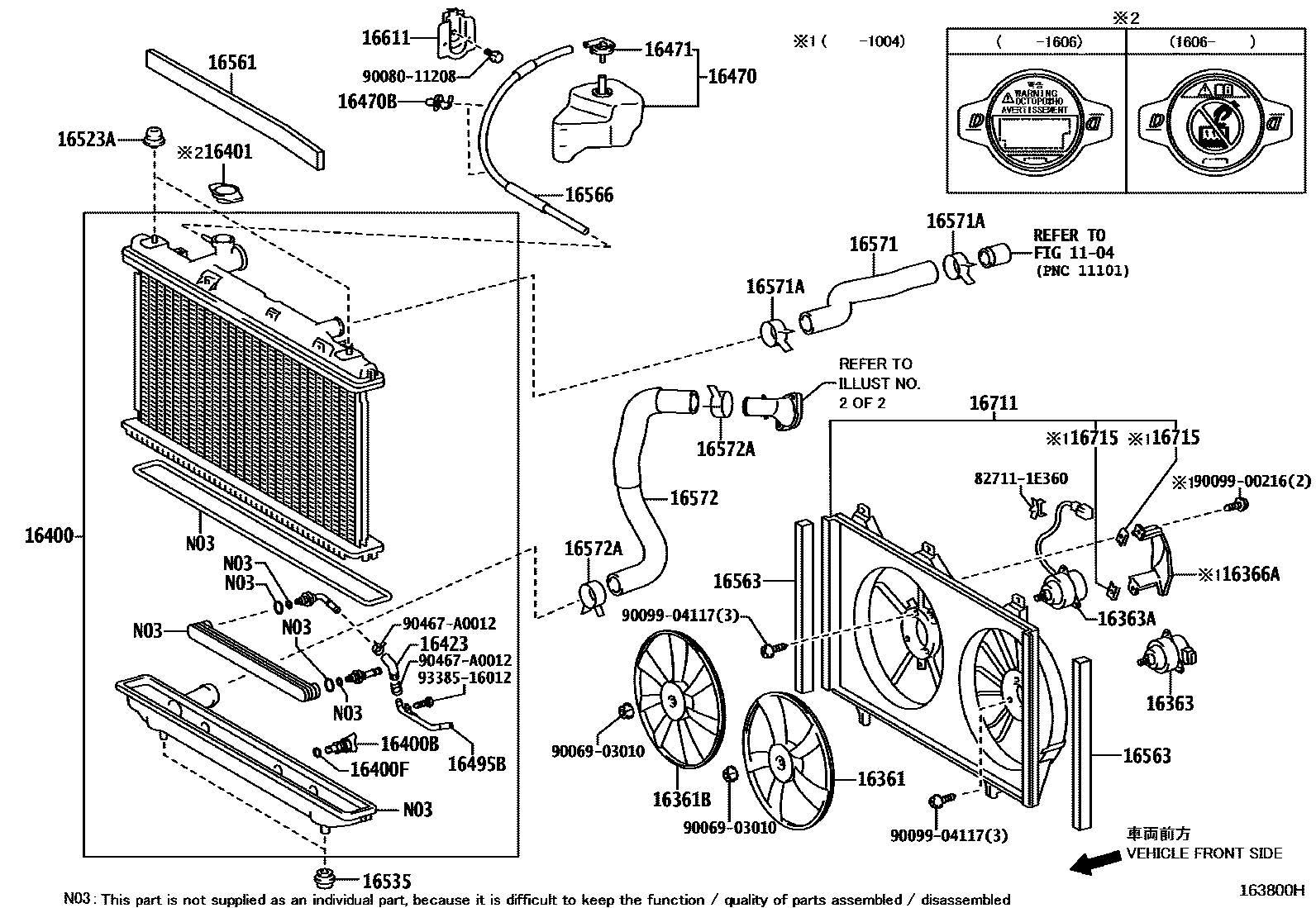

RADIATOR & WATER OUTLET

0001 1 0002 1W(TOWING PACKAGE) 0003 1 0004 1W(TOWING PACKAGE) 0005 1 0006 1DEALER OPTION, TOWING PACKAGE0007 1

1104

16361FAN

main16361-0H090i1ARFE..AGV1#200901-201208

sub16361-0V400

main16361-0V400i1ARFE..AGV1#201209

main16361-AD010i2GRFE..GGV1#200811-201205

16361BFAN, NO.2

main16361-0H100i1ARFE..AGV1#200901-201208

sub16361-0V410

main16361-0V410i1ARFE..AGV1#201209

main16361-AD020i2GRFE..GGV1#200811-201205

16363MOTOR, COOLING FAN

main16363-0A120i2GRFE..GGV1#200811-201205

main16363-0H010i1ARFE..AGV1#200901-201205

sub16363-23010

16363AMOTOR, COOLING FAN, NO.2

main16363-0H070i1ARFE..AGV1#200901-201205

sub16363-28230

main16363-0P030i2GRFE..GGV1#200811-201205

16366AINSULATOR, COOLING FAN MOTOR

main16366-0V010i1ARFE..AGV1#200901-201004

(L)

main16366-36020i1ARFE..AGV1#200901-201004

(J)

16400RADIATOR ASSY

main16400-0P220i2GRFE..GGV1#200811-201205

main16400-0V010i1ARFE..AGV1#200901-201205

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1ARFE..AGV1#201301

sub16417-21280

main16417-21280i1ARFE..AGV1#200901-201301

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1ARFE..AGV1#200811-201205

16401CAP SUB-ASSY, RADIATOR

main16401-31480i2GRFE..GGV1#200811-201206

main16401-31520i2GRFE..GGV1#201207-201606

sub16401-36020

main16401-36020i2GRFE..GGV1#201606

16423HOSE, RADIATOR TANK

main16492-AD020i1ARFE..AGV1#200901-201205

16470TANK ASSY, RADIATOR RESERVE

main16470-0P030i2GRFE..GGV1#200811-201205

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90469-12014i2GRFE..GGV1#200811-201205

16471CAP SUB-ASSY, RESERVE TANK

main16471-AA010i2GRFE..GGV1#200811-201205

16495BPIPE (FOR ATM OIL COOLER)

main16495-31470i1ARFE..AGV1#200901-201205

16523ACUSHION, RADIATOR SUPPORT

main16523-AD010i2GRFE..GGV1#200811-201205

16535SUPPORT, RADIATOR, LOWER

main16535-0A050i2GRFE..GGV1#200811-201205

main16535-0H030i1ARFE..AGV1#200901-201205

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0V010i2GRFE..GGV1#200811-201205

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-0P020i2GRFE..GGV1#200811-201205

main16563-0V010i1ARFE..AGV1#200901-201205

16566HOSE, RESERVE TANK OUTLET

main16566-0P010i2GRFE..GGV1#200811-201205

16571HOSE, RADIATOR, INLET

main16571-36050i1ARFE..AGV1#200901-201205

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90080-46344i2GRFE..GGV1#200811-201103

main90466-A0020i1ARFE..AGV1#201104-201205

16572HOSE, RADIATOR, OUTLET

main16572-0V010i1ARFE..AGV1#200901-201205

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90080-46344i2GRFE..GGV1#200811-201103

main90466-A0020i2GRFE..GGV1#201104-201205

16611BRACKET, RADIATOR RESERVE TANK

main16611-0P010i2GRFE..GGV1#200811-201112

main16611-0P020i2GRFE..GGV1#201112-201205

16711SHROUD, FAN

main16711-0V010i1ARFE..AGV1#200901-201205

main16711-AD010i2GRFE..GGV1#200811-201205

16715BRACKET, FAN SHROUD

main88688-03020i1ARFE..AGV1#200901-201004

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9006903010

main90069-03010

9008011208

main90080-11208

9009900216

main90099-00216

9009904117

main90099-04117

90467A0012

main90467-A0012

9338516012

main93385-16012

34 parts on this diagram · 7 diagrams in section
