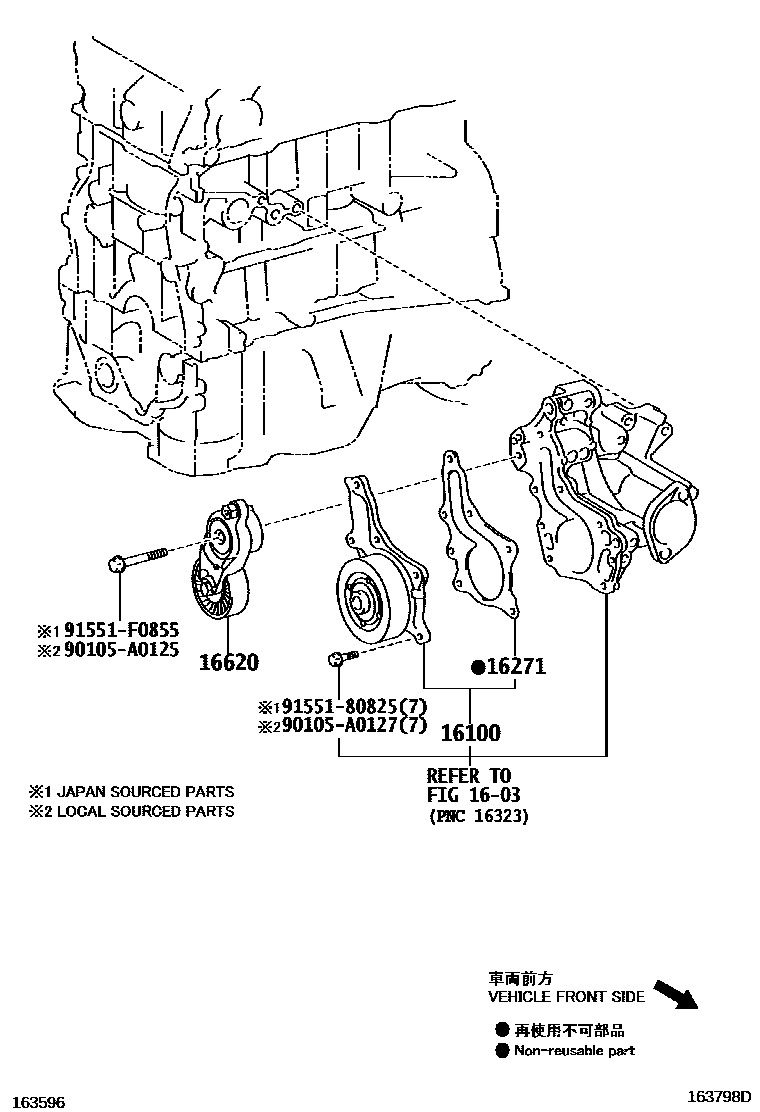

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09441i2GRFE..GGV1#200811-201608

(L)

sub16100-09442

main16100-09442i2GRFE..GGV1#201608

(L)

main16100-09515i1ARFE..AGV1#201109-201205

*212

main16100-09515i1ARFE..AGV1#201109-201205

TOWING PACKAGE-WITH,(L),*212

main16100-09515i1ARFE..AGV1#201205

TOWING PACKAGE-WITH,(L)

main16100-39455i2GRFE..GGV1#200811-200903

(J)

sub16100-39456

main16100-39456i2GRFE..GGV1#200903-201210

(J)

main16100-39515i1ARFE..AGV1#200901-201205

*107

sub16100-39516

16271GASKET, WATER PUMP

main16271-0P010i2GRFE..GGV1#200811-201205

(L)

main16271-31030i2GRFE..GGV1#200811-201210

(J)

main16271-36010i1ARFE..AGV1#200901-200910

main16271-36010i1ARFE..AGV1#200910-201205

*107

main16271-36010i1ARFE..AGV1#201109-201205

*212

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V020i1ARFE..AGV1#201109-201205

(L),*212

sub16620-0V021

main16620-0V020i1ARFE..AGV1#201205-201305

(L)

sub16620-0V021

main16620-0V021i1ARFE..AGV1#201305-201405

(L)

sub16620-0V022

main16620-0V022i1ARFE..AGV1#201405

(L)

main16620-31040i2GRFE..GGV1#200811-201205

main16620-36010i1ARFE..AGV1#201109-201205

(J),*212

sub16620-36011

main16620-36010i1ARFE..AGV1#200901-201205

*107

sub16620-36011

main16620-36010i1ARFE..AGV1#201205-201402

(J)

sub16620-36011

main16620-36011i1ARFE..AGV1#201402-201509

(J)

sub16620-36012

main16620-36012i1ARFE..AGV1#201510

(J)

sub16620-36013

90105A0125

main90105-A0125

90105A0127

main90105-A0127

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 2 diagrams in section
