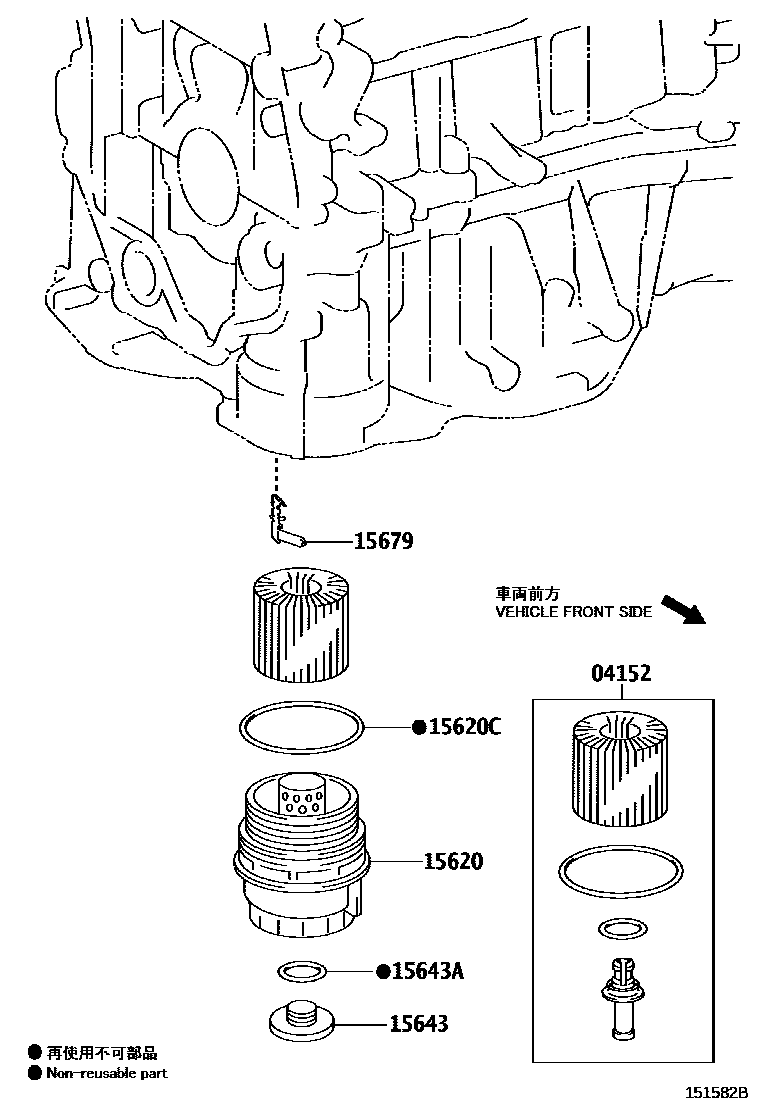

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i2GRFE..GGV1#200811-201205

main04152-31090i1ARFE..AGV1#200901-201205

*107

main04152-31090i1ARFE..AGV1#201109-201205

*212

15620CAP ASSY, OIL FILTER

main15620-0V010i1ARFE..AGV1#201312

(L)

main15620-31060i2GRFE..GGV1#200811-201205

main15620-36010i1ARFE..AGV1#200901-201002

*107

sub15620-36020

main15620-36020i1ARFE..AGV1#201002-201205

*107

main15620-36020i1ARFE..AGV1#201109-201205

*212

main15620-36020i1ARFE..AGV1#201205

(J)

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i1ARFE..AGV1#201205

main90301-79006i1ARFE..AGV1#200901-201205

*107

main90301-79006i1ARFE..AGV1#201109-201205

*212

main96723-35028i2GRFE..GGV1#200811-201205

15643PLUG, OIL FILTER DRAIN

main15643-31050i2GRFE..GGV1#200811-201205

main15643-31050i1ARFE..AGV1#200901-201205

*107

main15643-31050i1ARFE..AGV1#201109-201205

*212

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-79006i2GRFE..GGV1#200811-201205

main96723-35028i1ARFE..AGV1#201109-201205

*212

main96723-35028i1ARFE..AGV1#200901-201205

*107

main96723-35028i1ARFE..AGV1#201205

15679CLIP, OIL FILTER BRACKET

main15679-37010i1ARFE..AGV1#200901-201205

*107

sub15679-37011

main15679-37010i1ARFE..AGV1#201109-201205

*212

sub15679-37011

main15679-37010i1ARFE..AGV1#201205-201408

sub15679-37011

main15679-37011i1ARFE..AGV1#201409

6 parts on this diagram · 2 diagrams in section
