ENGINE OIL PUMP

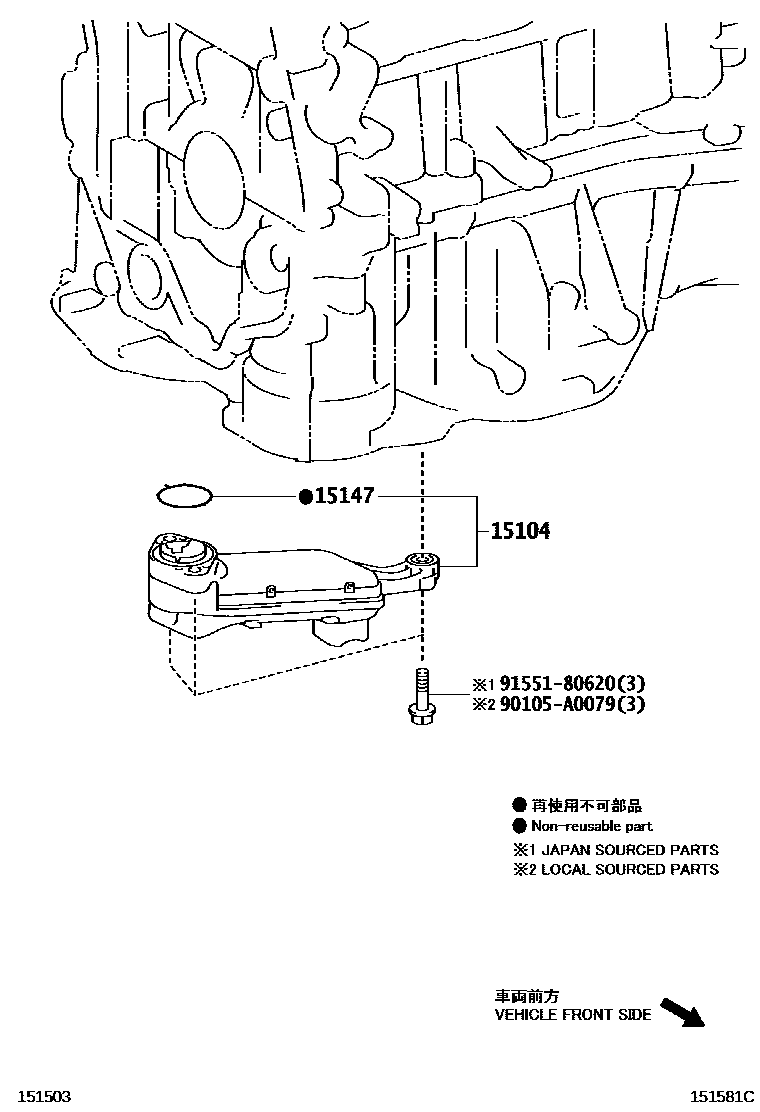

Parts diagram

15104STRAINER SUB-ASSY, OIL

main15104-0V050i201505

(L)

main15104-31120i¥5,100200811-201510

main15104-31190i¥3,570201510

main15104-36020i¥1,980201205-201505

main15104-36020i¥1,980201109-201205

*212

main15104-36020i¥1,980200901-201205

*107

main15104-36020i¥1,980201505

(J)

15147GASKET, OIL STRAINER

main15147-0P020i200811-201205

(L)

main15147-31060i¥270200811-201210

(J)

main15147-36010i¥340200901-201205

*107

main15147-36010i¥340201109-201205

*212

main15147-36010i¥340201205

90105A0079

main90105-A0079

9155180620

main91551-80620¥60

4 parts on this diagram · 2 diagrams in section
