EPC Data

CRANKSHAFT & PISTON

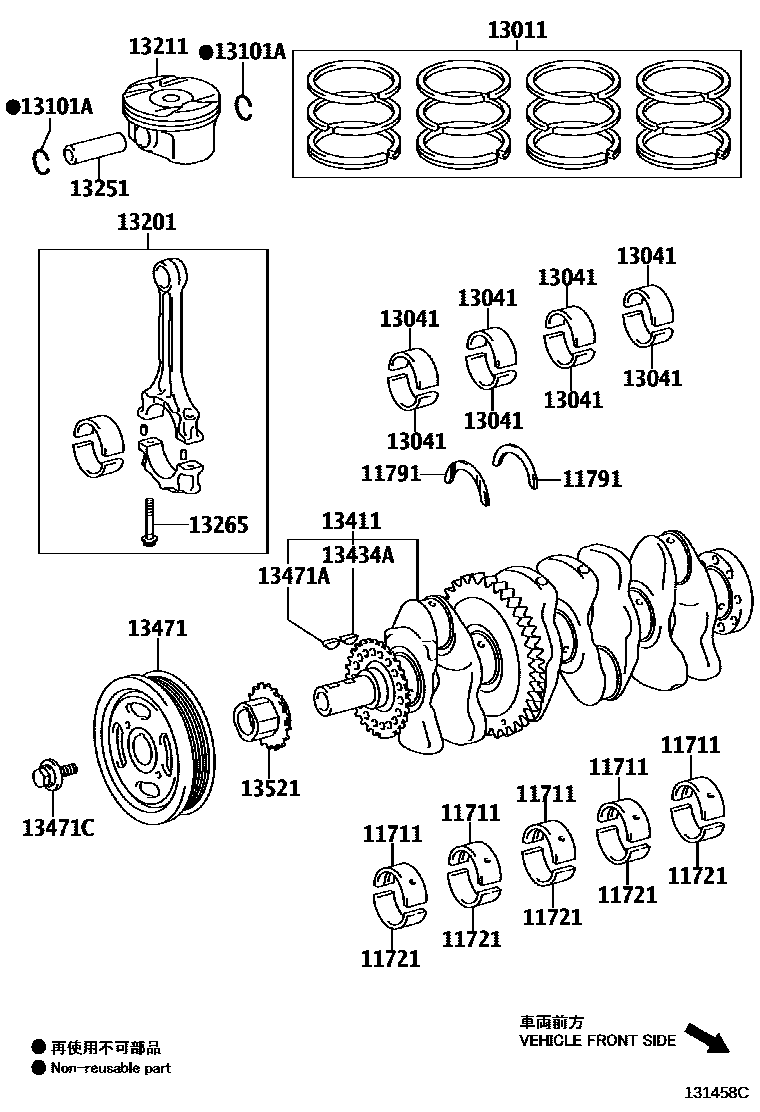

Parts diagram
11711BEARING, CRANKSHAFT
main11071-0P030-01i200811-200906
MARK1,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-02i200811-200906
MARK2,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-03i200811-200906
MARK3,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-04i200811-200906
MARK4,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-05i200811-200906
MARK5,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P050-01i200906-201205
MARK1,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-02i200906-201205
MARK2,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-03i200906-201205
MARK3,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-04i200906-201205
MARK4,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-05i200906-201205
MARK5,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P051-01i201205-201503
MARK1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-02i201205-201503
MARK2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-03i201205-201503
MARK3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-04i201205-201503
MARK4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-05i201205-201503
MARK5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-01i201503
MARK 1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-02i201503
MARK 2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-03i201503
MARK 3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-04i201503
MARK 4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-05i201503
MARK 5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-31031-01i200811-201502
MARK1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-02i200811-201502
MARK2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-03i200811-201502
MARK3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-04i200811-201502
MARK4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-05i200811-201502
MARK5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-01i201503
MARK 1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-02i201503
MARK 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-03i201503
MARK 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-04i201503
MARK 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-05i201503
MARK 5,NO.2,(J):REFER R/M
sub11071-31060
main11701-0P030-01i200811-200906
MARK1,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-02i200811-200906
MARK2,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-03i200811-200906
MARK3,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-04i200811-200906
MARK4,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-05i200811-200906
MARK5,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P050-01i200906-201205
MARK1,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-02i200906-201205
MARK2,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-03i200906-201205
MARK3,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-04i200906-201205
MARK4,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-05i200906-201205
MARK5,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P051-01i201205-201503
MARK1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-02i201205-201503
MARK2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-03i201205-201503
MARK3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-04i201205-201503
MARK4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-05i201205-201503
MARK5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-01i201503
MARK 1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-02i201503
MARK 2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-03i201503
MARK 3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-04i201503
MARK 4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-05i201503
MARK 5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-31061-01i200811-200906
MARK1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-02i200811-200906
MARK2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-03i200811-200906
MARK3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-04i200811-200906
MARK4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-05i200811-200906
MARK5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-01i200902-201502
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-02i200902-201502
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-03i200902-201502
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-04i200902-201502
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-05i200902-201502
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-01i201503
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-02i201503
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-03i201503
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-04i201503
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-05i201503
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11711-0V010-01i201109-201205
MARK 1,*212:REFER R/M
main11711-0V010-01i201205-201305
MARK 1,REFER REPAIR MANUAL
main11711-0V010-02i201205-201305
MARK 2,REFER REPAIR MANUAL
main11711-0V010-02i201109-201205
MARK 2,*212:REFER R/M
main11711-0V010-03i201205-201305
MARK 3,REFER REPAIR MANUAL
main11711-0V010-03i201109-201205
MARK 3,*212:REFER R/M
main11711-0V010-04i201205-201305
MARK 4,REFER REPAIR MANUAL
main11711-0V010-04i201109-201205
MARK 4,*212:REFER R/M
main11711-0V030-01i201305
MARK 1,(L),REFER R/M
main11711-0V030-02i201305
MARK 2,(L),REFER R/M
main11711-0V030-03i201305
MARK 3,(L),REFER R/M
main11711-0V030-04i201305
MARK 4,(L),REFER R/M
main11711-36020-01i200901-201202
MARK 1,*107:REFER R/M
main11711-36020-02i200901-201202
MARK 2,*107:REFER R/M
main11711-36020-03i200901-201202
MARK 3,*107:REFER R/M
main11711-36020-04i200901-201202
MARK 4,*107:REFER R/M
main11711-36050-01i201202-201205
MARK 1,*107:REFER R/M
main11711-36050-01i201305
MARK 1,(J):REFER R/M
main11711-36050-02i201202-201205
MARK 2,*107:REFER R/M
main11711-36050-02i201305
MARK 2,(J):REFER R/M
main11711-36050-03i201305
MARK 3,(J):REFER R/M
main11711-36050-03i201202-201205
MARK 3,*107:REFER R/M
main11711-36050-04i201202-201205
MARK 4,*107:REFER R/M
main11711-36050-04i201305
MARK 4,(J):REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-0V010-01i201109-201205
MARK 1,*212:REFER R/M
main11721-0V010-01i201205-201305
MARK 1,REFER REPAIR MANUAL
main11721-0V010-02i201109-201205
MARK 2,*212:REFER R/M
main11721-0V010-02i201205-201305
MARK 2,REFER REPAIR MANUAL
main11721-0V010-03i201205-201305
MARK 3,REFER REPAIR MANUAL
main11721-0V010-03i201109-201205
MARK 3,*212:REFER R/M
main11721-0V010-04i201109-201205
MARK 4,*212:REFER R/M
main11721-0V010-04i201205-201305
MARK 4,REFER REPAIR MANUAL
main11721-0V030-01i201305
MARK 1,(L),REFER R/M
main11721-0V030-02i201305
MARK 2,(L),REFER R/M
main11721-0V030-03i201305
MARK 3,(L),REFER R/M
main11721-0V030-04i201305
MARK 4,(L),REFER R/M
main11721-36020-01i200901-201202
MARK 1,*107:REFER R/M
main11721-36020-02i200901-201202
MARK 2,*107:REFER R/M
main11721-36020-03i200901-201202
MARK 3,*107:REFER R/M
main11721-36020-04i200901-201202
MARK 4,*107:REFER R/M
main11721-36050-01i201202-201205
MARK 1,*107:REFER R/M
main11721-36050-01i201305
MARK 1,(J):REFER R/M
main11721-36050-02i201202-201205
MARK 2,*107:REFER R/M
main11721-36050-02i201305
MARK 2,(J):REFER R/M
main11721-36050-03i201202-201205
MARK 3,*107:REFER R/M
main11721-36050-03i201305
MARK 3,(J):REFER R/M
main11721-36050-04i201305
MARK 4,(J):REFER R/M
main11721-36050-04i201202-201205
MARK 4,*107:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0V010i201109-201205
STD,*212
main11791-0V010i201205
STD
main11791-36010i200901-201205
STD,*107
13011RING SET, PISTON
main13011-0P030i200811-200909
STD,(L)
sub13011-0P040
main13011-0P040i200909-201507
STD,(L)
main13011-0P060i201507
STD,(L)
main13011-0V040i201205
STD
main13011-0V040i201109-201205
STD,*212
main13011-31130i200811-200812
STD,(J)
main13011-31150i200812-201210
STD,(J)
sub13011-31151
main13011-36020i200901-201205
STD,*107
sub13011-36060
13041BEARING, CONNECTING ROD
main13041-0P040-01i200811-200906
MARK1,(L):REFER R/M
sub13041-0P080
main13041-0P040-02i200811-200906
MARK2,(L):REFER R/M
sub13041-0P080
main13041-0P040-03i200811-200906
MARK3,(L):REFER R/M
sub13041-0P080
main13041-0P040-04i200811-200906
MARK4,(L):REFER R/M
sub13041-0P080
main13041-0P080-01i200906-201104
MARK1,(L):REFER R/M
sub13041-0P081
main13041-0P080-02i200906-201104
MARK2,(L):REFER R/M
sub13041-0P081
main13041-0P080-03i200906-201104
MARK3,(L):REFER R/M
sub13041-0P081
main13041-0P080-04i200906-201104
MARK4,(L):REFER R/M
sub13041-0P081
main13041-0P081-01i201104-201605
MARK1,(L):REFER R/M
sub13041-0P090
main13041-0P081-02i201104-201605
MARK2,(L):REFER R/M
sub13041-0P090
main13041-0P081-03i201104-201605
MARK3,(L):REFER R/M
sub13041-0P090
main13041-0P081-04i201104-201605
MARK4,(L):REFER R/M
sub13041-0P090
main13041-0P090-01i201606
MARK 1,(L):REFER R/M
main13041-0P090-02i201606
MARK 2,(L):REFER R/M
main13041-0P090-03i201606
MARK 3,(L):REFER R/M
main13041-0P090-04i201606
MARK 4,(L):REFER R/M
main13041-31070-01i200811-201205
MARK1,(J):REFER R/M
sub13041-31100
main13041-31070-01i201205-201605
MARK 1,(J):REFER R/M
sub13041-31100
main13041-31070-02i200811-201205
MARK2,(J):REFER R/M
sub13041-31100
main13041-31070-02i201205-201605
MARK 2,(J):REFER R/M
sub13041-31100
main13041-31070-03i201205-201605
MARK 3,(J):REFER R/M
sub13041-31100
main13041-31070-03i200811-201205
MARK3,(J):REFER R/M
sub13041-31100
main13041-31070-04i200811-201205
MARK4,(J):REFER R/M
sub13041-31100
main13041-31070-04i201205-201605
MARK 4,(J):REFER R/M
sub13041-31100
main13041-31100-01i201606
MARK 1,(J):REFER R/M
main13041-31100-02i201606
MARK 2,(J):REFER R/M
main13041-31100-03i201606
MARK 3,(J):REFER R/M
main13041-31100-04i201606
MARK 4,(J):REFER R/M
main13281-0V010-01i201109-201205
MARK 1,*212:REFER R/M
sub13281-0V011
main13281-0V010-01i201205-201604
MARK 1,REFER REPAIR MANUAL
sub13281-0V011
main13281-0V010-02i201205-201604
MARK 2,REFER REPAIR MANUAL
sub13281-0V011
main13281-0V010-02i201109-201205
MARK 2,*212:REFER R/M
sub13281-0V011
main13281-0V010-03i201109-201205
MARK 3,*212:REFER R/M
sub13281-0V011
main13281-0V010-03i201205-201604
MARK 3,REFER REPAIR MANUAL
sub13281-0V011
main13281-0V011-01i201605
MARK 1,REFER REPAIR MANUAL
main13281-0V011-02i201605
MARK 2,REFER REPAIR MANUAL
main13281-0V011-03i201605
MARK 3,REFER REPAIR MANUAL
main13281-36020-01i200901-201205
MARK 1,*107:REFER R/M
sub13281-36021
main13281-36020-02i200901-201205
MARK 2,*107:REFER R/M
sub13281-36021
main13281-36020-03i200901-201205
MARK 3,*107:REFER R/M
sub13281-36021
13101PISTON SUB-ASSY, W/PIN
main13101-0P052i200811-200911
STD,(L)
sub13101-0P053
main13101-0P053i200911-201205
STD,(L)
sub13101-31092
main13101-31091i200811-200906
STD,(J)
sub13101-31092
main13101-31092-A0i200906-201210
STD,MARK A,(J),REFER R/M
sub13101-31092
main13101-31092-B0i200906-201210
STD,MARK B,(J),REFER R/M
sub13101-31092
main13101-31092-C0i200906-201210
STD,MARK C,(J),REFER R/M
sub13101-31092
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200811-201210
(J)
main90520-22025i200901-201205
*107
main90520-A0004i200811-201205
(L)
main90520-A0004i201109-201205
*212
13201ROD SUB-ASSY, CONNECTING
main13201-09830i200811-201606
(L)
sub13201-09831
main13201-09831i201606
(L)
sub13201-39137
main13201-09A45-A0i201109-201205
MARK A,*212:REFER R/M
sub13201-09A46
main13201-09A45-A0i201205-201605
MARK A,REFER REPAIR MANUAL
sub13201-09A46
main13201-09A45-B0i201109-201205
MARK B,*212:REFER R/M
sub13201-09A46
main13201-09A45-B0i201205-201605
MARK B,REFER REPAIR MANUAL
sub13201-09A46
main13201-09A45-C0i201109-201205
MARK C,*212:REFER R/M
sub13201-09A46
main13201-09A45-C0i201205-201605
MARK C,REFER REPAIR MANUAL
sub13201-09A46
main13201-09A46-A0i201605
MARK A,REFER REPAIR MANUAL
sub13201-39226
main13201-09A46-B0i201605
MARK B,REFER REPAIR MANUAL
sub13201-39226
main13201-09A46-C0i201605
MARK C,REFER REPAIR MANUAL
sub13201-39226
main13201-39135i200811-201005
(J)
sub13201-39137
main13201-39135-A0i201205-201210
MARK A,(J),REFER R/M
sub13201-39135
sub13201-39137
main13201-39135-B0i201205-201210
MARK B,(J),REFER R/M
sub13201-39135
sub13201-39137
main13201-39135-C0i201205-201210
MARK C,(J),REFER R/M
sub13201-39135
sub13201-39137
main13201-39225-A0i200901-201205
MARK A,*107:REFER R/M
sub13201-39226
main13201-39225-B0i200901-201205
MARK B,*107:REFER R/M
sub13201-39226
main13201-39225-C0i200901-201205
MARK C,*107:REFER R/M
sub13201-39226
13211PISTON
main13211-0V070-A0i201205
MARK A,REFER REPAIR MANUAL
main13211-0V070-A0i201109-201205
MARK A,*212:REFER R/M
main13211-0V070-B0i201109-201205
MARK B,*212:REFER R/M
main13211-0V070-B0i201205
MARK B,REFER REPAIR MANUAL
main13211-0V070-C0i201205
MARK C,REFER REPAIR MANUAL
main13211-0V070-C0i201109-201205
MARK C,*212:REFER R/M
main13211-36040-A0i200901-201011
MARK A,*107:REFER R/M
sub13211-36041
main13211-36040-B0i200901-201011
MARK B,*107:REFER R/M
sub13211-36041
main13211-36040-C0i200901-201011
MARK C,*107:REFER R/M
sub13211-36041
main13211-36041-A0i201011-201205
MARK A,*107:REFER R/M
main13211-36041-B0i201011-201205
MARK B,*107:REFER R/M
main13211-36041-C0i201011-201205
MARK C,*107:REFER R/M
13251PIN, PISTON
main13251-28020-A0i201109-201205
MARK A,*212:REFER R/M
main13251-28020-A0i200901-201205
MARK A,*107:REFER R/M
main13251-28020-A0i201205
MARK A,REFER REPAIR MANUAL
main13251-28020-B0i201205
MARK B,REFER REPAIR MANUAL
main13251-28020-B0i200901-201205
MARK B,*107:REFER R/M
main13251-28020-B0i201109-201205
MARK B,*212:REFER R/M
main13251-28020-C0i201205
MARK C,REFER REPAIR MANUAL
main13251-28020-C0i200901-201205
MARK C,*107:REFER R/M
main13251-28020-C0i201109-201205
MARK C,*212:REFER R/M
13265BOLT, CONNECTING ROD
main13265-28010i200811-201205
sub13265-28020
main13265-31020i201109-201205
*212
main13265-31020i201205
main13265-31020i200901-201205
*107
13411CRANKSHAFT
main13401-0P030i200811-201507
(L)
sub13401-0P031
main13401-0P031i201507
(L)
main13401-0V040i201109-201205
*212
sub13401-36021
main13401-0V040i201205-201305
sub13401-36021
main13401-0V041i201305
sub13401-36021
main13401-31040i200811-201409
(J)
sub13401-31041
main13401-31041i201410
(J)
sub13401-31021
main13401-36020i200901-201202
*107
sub13401-36021
main13401-36021i201202-201205
*107
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i201205
main95161-30516i200901-201205
*107
main95161-30516i201109-201205
*212
13471PULLEY, CRANKSHAFT
main13470-0V020i201205
(L)
main13470-0V020i201109-201205
(L),*212
main13470-31030i200811-201205
main13470-36010i201109-201205
(J),*212
main13470-36010i200901-201205
*107
main13470-36010i201205
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i201109-201205
*212
main95161-30516i200901-201205
*107
main95161-30516i201205
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200811-201412
main90119-16020i201109-201205
*212
main90119-16020i201506
(J)
main90119-16020i201205-201506
main90119-16020i200901-201205
*107
main90119-A0265i201506
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0P011i200811-201205
(L)
main13521-0V010i201205
(L)
main13521-0V010i201109-201205
(L),*212
main13521-31041i200811-201210
(J)
main13521-36010i201205
(J)
main13521-36010i200901-201205
*107
main13521-36010i201109-201205
(J),*212

17 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
