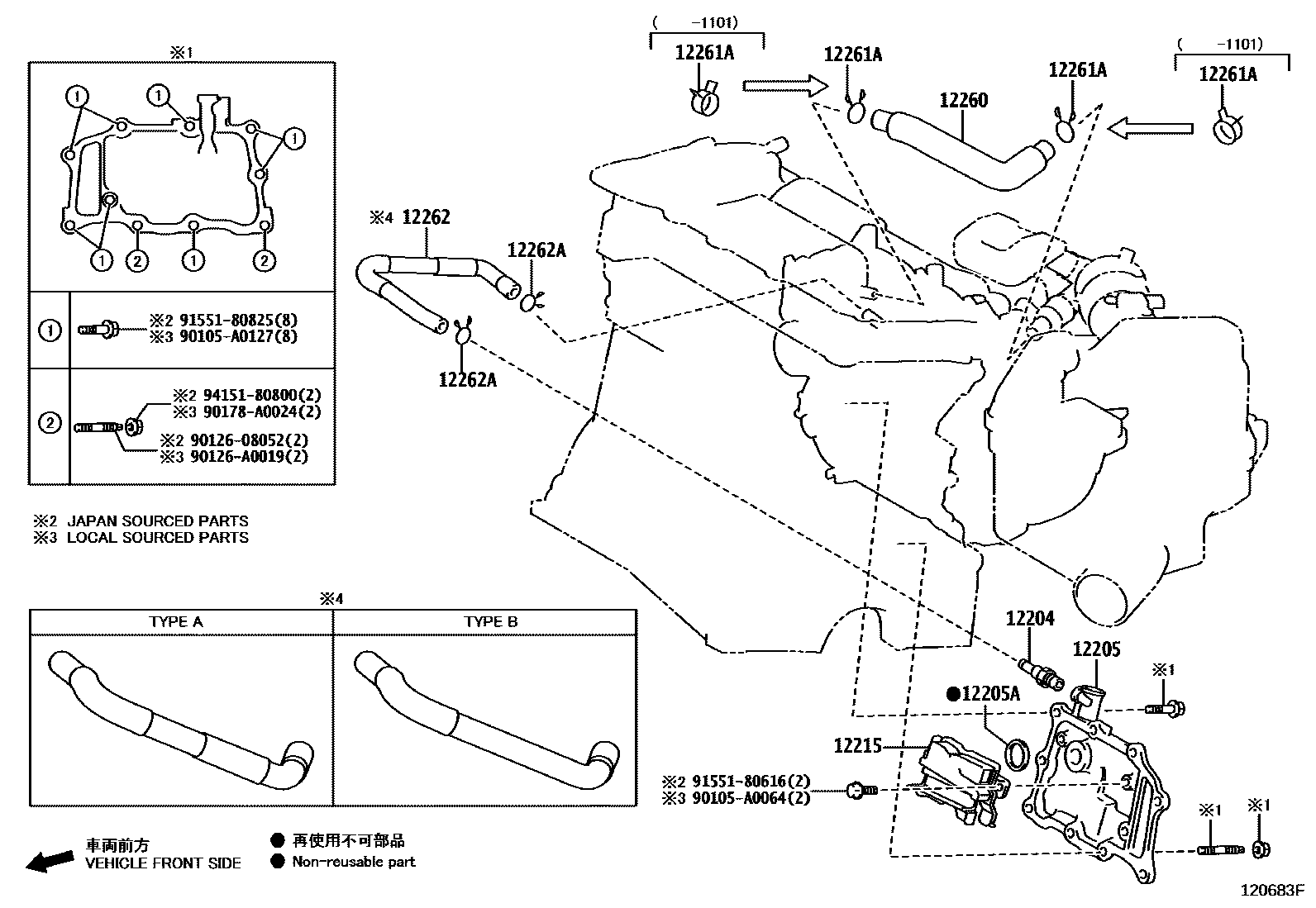

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-31040i2GRFE..GGV1#200811-200812

main12204-31120i2GRFE..GGV1#200812-201205

main12204-36020i1ARFE..AGV1#201109-201205

*212

main12204-36020i1ARFE..AGV1#200901-201205

*107

main12204-36020i1ARFE..AGV1#201205

12205CASE SUB-ASSY, VENTILATION

main12205-0V010i1ARFE..AGV1#201109-201205

*212

main12205-0V010i1ARFE..AGV1#201205

main12205-36010i1ARFE..AGV1#200901-201205

*107

12205ARING, O(FOR VENTILATION CASE)

main12273-36010i1ARFE..AGV1#200901-201205

*107

main12273-36010i1ARFE..AGV1#201109-201205

*212

main12273-36010i1ARFE..AGV1#201205

12215SEPARATOR, CASE

main12215-0V010i1ARFE..AGV1#201109-201205

*212

main12215-0V010i1ARFE..AGV1#201205

main12215-36010i1ARFE..AGV1#200901-201205

*107

12260HOSE ASSY, VENTILATION

main12260-0V010i1ARFE..AGV1#200901-201205

12261HOSE, VENTILATION

main12261-0P030i2GRFE..GGV1#200811-201106

main12261-0P080i2GRFE..GGV1#201106-201205

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90080-46349i1ARFE..AGV1#200901-201012

main90467-14017i2GRFE..GGV1#200811-201205

main90467-21004i1ARFE..AGV1#201101-201205

12262HOSE, VENTILATION, NO.2

main12262-0P020i2GRFE..GGV1#200811-201205

main12262-36020i1ARFE..AGV1#200901-201103

*107T/P A:REF.ILLUST

main12262-36040i1ARFE..AGV1#201109-201205

*212

main12262-36040i1ARFE..AGV1#201103-201205

*107T/P B:REF.ILLUST

main12262-36040i1ARFE..AGV1#201205

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035i1ARFE..AGV1#200901-201205

*107

main90467-16035i1ARFE..AGV1#201109-201205

*212

main90467-16035i1ARFE..AGV1#201205

main90467-21004i2GRFE..GGV1#200811-201205

90105A0064

main90105-A0064

90105A0127

main90105-A0127

9012608052

main90126-08052

90126A0019

main90126-A0019

90178A0024

main90178-A0024

9155180616

main91551-80616

9155180825

main91551-80825

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
